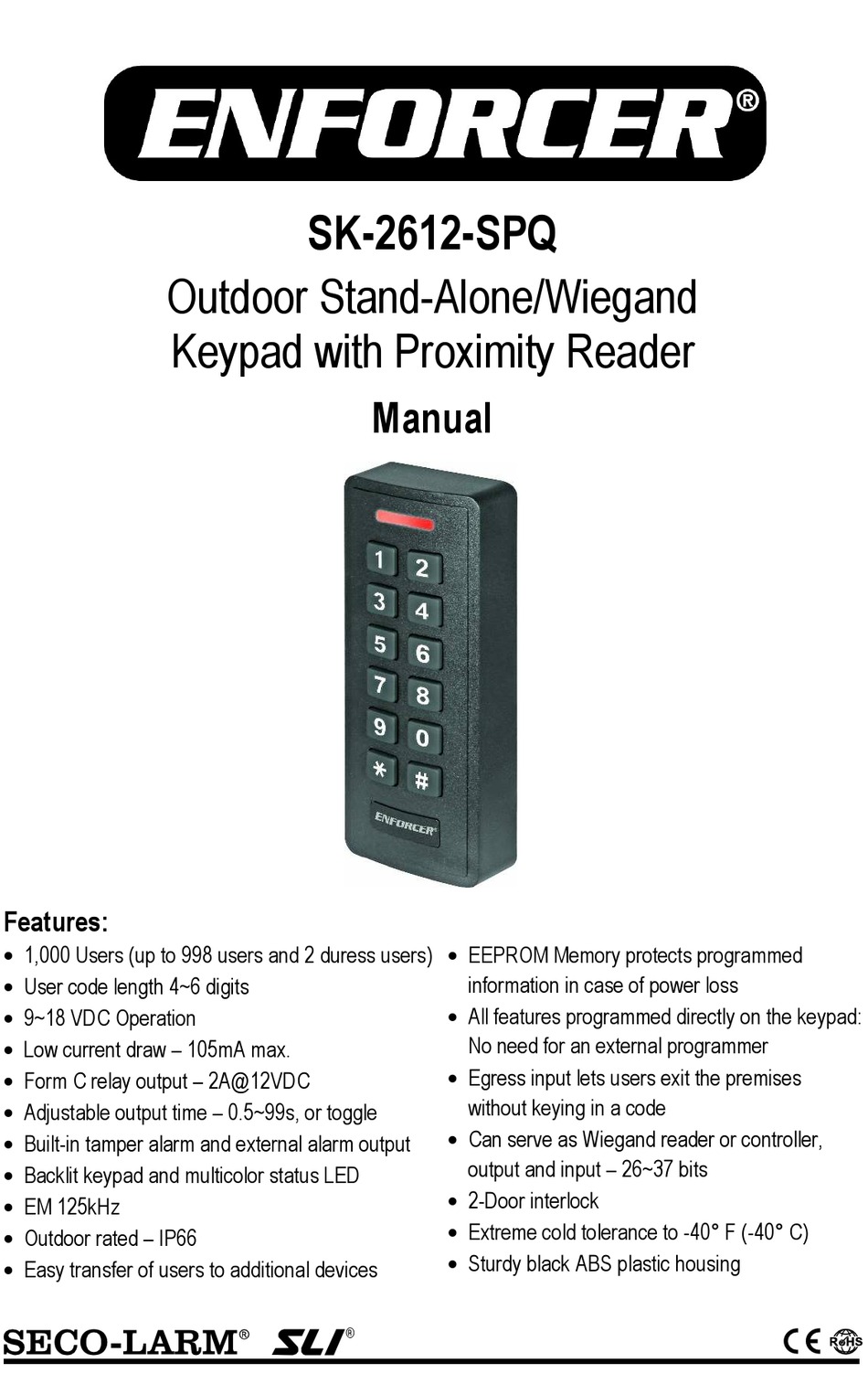

ENFORCER SECO-LARM SLI SK-2612-SPQ Manual

Outdoor Stand-Alone/Wiegand
Features:
 1,000 Users (up to 998 users and 2 duress users)
 User code length 4~6 digits
 9~18 VDC Operation
 Low current draw – 105mA max.
 Form C relay output – 2A@12VDC
 Adjustable output time – 0.5~99s, or toggle
 Built-in tamper alarm and external alarm output
 Backlit keypad and multicolor status LED
 EM 125kHz
 Outdoor rated – IP66
 Easy transfer of users to additional devices

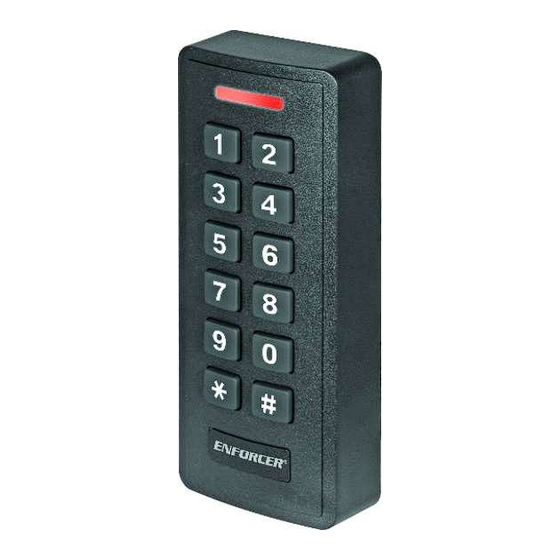

SK-2612-SPQ
Keypad with Proximity Reader
Manual
 EEPROM Memory protects programmed
information in case of power loss
 All features programmed directly on the keypad:
No need for an external programmer
 Egress input lets users exit the premises
without keying in a code
 Can serve as Wiegand reader or controller,
output and input – 26~37 bits
 2-Door interlock
 Extreme cold tolerance to -40° F (-40° C)
 Sturdy black ABS plastic housing
®
