ENFORCER SK-2323-SDAQ Manual

Piezoelectric mullion-style outdoor stand-alone keypads
Hide thumbs
Table of Contents

Advertisement

Quick Links

Piezoelectric Mullion-Style Outdoor
Stand-Alone Keypads
Model
Number
SK-2323-SDAQ
SK-2323-SPAQ
 12~24 VAC/VDC operation
 2 Form C relays (1A@30VDC)
 Piezoelectric keys with no moving parts
for heavy-duty use
 Optical tamper for added security
Manual

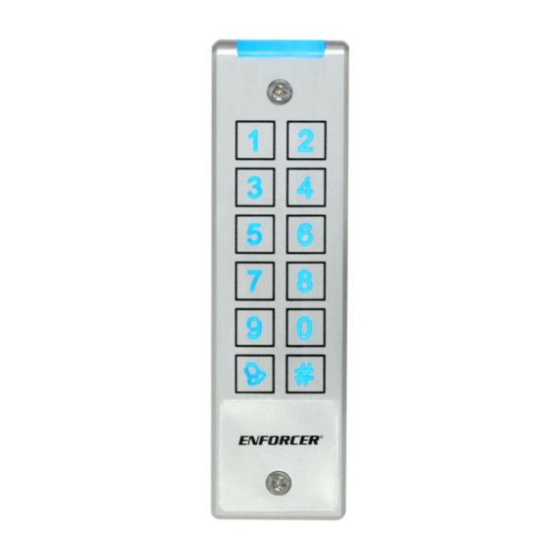

(SK-2323-SPAQ shown)
2 Relay
Backlit
Outputs
Keys
 Backlit keys for easy nighttime use
 1,010 User codes
 IP 65 weatherproof rating, rugged
aluminum construction
 Keypad LED life: up to 60,000 hours
(6.8 years)
Proximity
Reader

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SK-2323-SDAQ and is the answer not in the manual?

Questions and answers

Related Manuals for ENFORCER SK-2323-SDAQ

Summary of Contents for ENFORCER SK-2323-SDAQ

  • Page 1 Manual (SK-2323-SPAQ shown) Model 2 Relay Backlit Proximity Number Outputs Keys Reader SK-2323-SDAQ   SK-2323-SPAQ     12~24 VAC/VDC operation  Backlit keys for easy nighttime use  2 Form C relays (1A@30VDC)  1,010 User codes ...

  • Page 2: Table Of Contents

    ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads Table of Contents: Sample Wiring and Applications ....6-7 Features ............2 Specifications ..........2 User Control Chart ........8-9 Also Available from SECO-LARM ....2 Programming Instructions ...... 10-13 Dimensions ............ 3 Resetting the Keypad ......... 14 Parts List ............

  • Page 3: Dimensions

    ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads Dimensions: " (44mm) " " " (155mm) (140mm) (96mm) " " (10mm) 3/ 16 (30mm) Parts List: 1x Keypad 4x Mounting screws 2x Bracket security screws 1x Torx wrench 2x Diode 1x Manual 4x Screw anchors...

  • Page 4: Important Notes

    ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads Important Notes: IF USING THE KEYPAD WITH A MECHANICALLY OPERATED DOOR OR GATE, MOUNT THE KEYPAD AT LEAST 5’ (15m) FROM THE DOOR OR GATE TO PREVENT USERS FROM BEING CRUSHED OR PINNED. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH.

  • Page 5: Installation

    ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads Installation: Mounting screws Mounting bracket Single-gang box mounting point Keypad Single-gang box mounting point Mounting screws 1. Find a suitable location to mount the keypad. Do not install where it will be too high or too low for most users to operate the keypad.

  • Page 6: Sample Wiring And Applications

    ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads Sample Wiring and Applications: NOTE: Sample applications are based on DC power supplies. Connection to Lock Device and Alarm System Arm/Disarm Control Red—12~24 VAC/VDC (+) Pink—Output #1 (COM) 12~24 VAC/VDC Black—12~24 VAC/VDC (-) Power Supply Green—Common ground (-)
  • Page 7 ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads Door Sensing The door sensing input is used for anti-tailgating. When used with an N.C. magnetic contact, the relay will de-energize one second after the door has been closed. This will bypass any existing relay timing.

  • Page 8: User Control Chart

    ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads SECO-LARM U.S.A., Inc.
  • Page 9 ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads SECO-LARM U.S.A., Inc...

  • Page 10: Programming Instructions

    ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads Programming Instructions: 1. Codes are programmed to be 2~6 digits in length. All codes must be the same length. 2. Before inputting any of the following, enter Programming Mode by entering the Master Code twice. The default Master Code is 1234.
  • Page 11 ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads D. Program the Master Card (SK-2323-SPAQ only) In addition to a Master Code, a Master Card can also be programmed. Swiping a Master Card will give direct access to Programming Mode. 1. Enter Programming Mode by entering the Master Code twice. The LED will turn yellow.

  • Page 12: Deleting/Changing Users And Cards

    ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads Continued from pg. 11. C. Programming Both User Codes and Cards* 1. Enter a user ID number ( ). The LED will turn green. 2. If the LED is red, previous user data exists. Clear it by entering .

  • Page 13: Additional Programming

    ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads Deleting or Changing an Output #1 User Step 1 Step 2 Step 3 Delete existing user by Enter a user ID number. Swipe a new user card.* entering: Enter a new user code. Return to Programming Mode ...

  • Page 14: Resetting The Keypad

    ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads Resetting the Keypad: NOTE: Resetting the keypad will cause some or all programmed data to be lost. Do not perform either of these steps unless it is absolutely necessary. Deleting All Users: Enter: IMPORTANT: Once key entry is made, all user codes and user cards will be deleted and the keypad will return to Programming Mode.

  • Page 15: Using The Keypad

    ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads Using the Keypad: For programming instructions, see pg. 10, Programming Instructions. Entering a User Code  To activate either Output #1 or Output #2, enter the user code directly into the keypad.  Do not enter the user ID number. The user ID number is only used during Programming Mode.

  • Page 16: Quick Reference Guide

    ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads Quick Reference Guide NOTE: For complete programming instructions, please see pg. 10, Programming Instructions. Operation Function Action Enter an Output #1 user code Directly enter on the keypad Enter an Output #2 user code...

This manual is also suitable for:

Sk-2323-spaq
