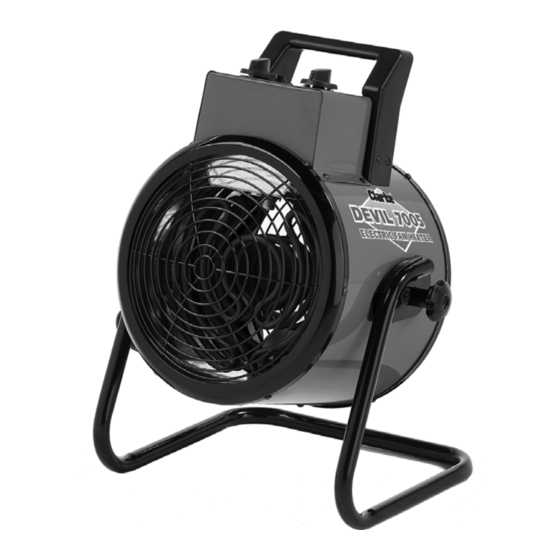

- Page 1 Only suitable for well insulated areas and not designed to be the primary heat source 5KW ELECTRIC FAN HEATER MODEL NO: DEVIL 7005 PART NO: 6935452 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS DL1122 - ISS 11...
-
Page 2: Function And Operating Parameters
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. - Page 3 THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188 Item Symbol Value Unit Heat output Measured seasonal space heating energy efficiency Nominal heat output Minimum heat output (indicative) Maximum continuous heat output Auxiliary electricity consumption At nominal heat output At minimum heat output In standby mode Type of heat input for electric storage local heaters only Manual heat charge control with integrated thermostat...
-
Page 4: Safety Symbols
6. Check the heater for damage before use. DO NOT use if the heater tubes/ elements are damaged or broken. Any damage should be properly repaired or the part replaced. If in doubt, DO NOT use. Consult your local CLARKE dealer. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 5 Cleaning and Maintenance. 3. Only recommended parts should be used. Unapproved parts may be dangerous and will invalidate the warranty. 4. DO NOT attempt to repair a damaged heater, contact the Clarke service department. POSITIONING WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL, LIQUIDS, SOLIDS, GASSES OR COMPRESSED GAS CYLINDERS ETC.
-
Page 6: Operation
OPERATION 1. This heater is intended for drying & warming of commercial/industrial buildings where adequate ventilation is provided. It is NOT for domestic use or for heating habitable areas. 2. The heater should NOT be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. -
Page 7: Safety Systems
SAFETY SYSTEMS THERMOSTATIC PROTECTION The Devil 7005 has a thermal cut out to prevent the unit from overheating. The thermal cutout may also operate if the heater is shut down without allowing to cool sufficiently. If subsequently, the heater fails to start, press the RESET button and try again. -
Page 8: List Of Pack Contents
ASSEMBLY LIST OF PACK CONTENTS 1 x Heater 1 x Handle 1 x Support Frame 1 x Fixings Pack 1. Fit the handle to the main body and secure using the four screws supplied. 2. Fit the leg frame to the main body as shown. - Page 9 OPERATION WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED. CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND CAUSE BURNS.
-
Page 10: Maintenance
• Make sure that the heater grill is not blocked. • No other maintenance is required, should you discover any problem with the heater, return it to the Clarke service department for repair. SPECIFICATIONS Operating Voltage and Frequency: (V / Hz / Phs) 400 V / 50Hz / 3 Phase Operating Temperature: (Min/Max) (°C):... -
Page 11: Troubleshooting
Replace if necessary and investigate plugged in with circuit breaker cause. If fuse blows repeatedly, consult the switch and trips. your Clarke dealer. thermostat No power at Insert the plug in a suitable socket switched on. socket outlet Heating element... -
Page 12: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 13: Parts List
PARTS LIST Front Grille Front Rings Motor Chassis Panel Front Rear Rings Temperature Sensor Clip Rear Grille Chassis Panel Rear Motor Retaining Bracket Grommet Heating Elements Temperature Controller House Casing Control Box Front Rivet Nut Control Box Decoration Cap Reset Button Power Socket Thermostat Knob Adjustable Screw... - Page 14 DECLARATION OF CONFORMITY - UKCA Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 15: Declaration Of Conformity (Ce)
DECLARATION OF CONFORMITY - CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
