CentronicPLUS
EC548A PLUS, EC5416A PLUS
Assembly and Operating Instructions
en

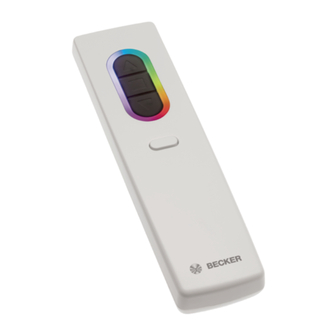

Bi-directional multi-channel hand-held
transmitter
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
4036 630 299 0 23/11/2022
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Related Manuals for Becker CentronicPLUS EC548A PLUS
Summary of Contents for Becker CentronicPLUS EC548A PLUS
- Page 1 Assembly and Operating Instructions Bi-directional multi-channel hand-held transmitter Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 4036 630 299 0 23/11/2022 Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4 35764 Sinn/Germany www.becker-antriebe.com...
-
Page 2: Table Of Contents
Table of contents General information ................. 3 Licensing information for open source software.......... 3 Warranty .................... 4 Safety instructions ................... 4 Intended use ................... 5 Explanation of displays and buttons ............ 6 Explanation of functions ................ 6 Programming transmitter................. 10 Restoring the factory settings of the hand-held transmitter...... 10 Installing the wall bracket................. 11 Changing batteries.................. 12 Cleaning.................... 12... -
Page 3: General Information
This device uses free/open source software. The licence texts are enclosed with the product in the licence documentation, which can be identified by the following symbol: The licence texts for the licensed software being used can be downloaded from www.becker-antriebe.com/licenses. 3 - en... -
Page 4: Warranty
Written request for the licence texts: Becker-Antriebe will, on request, provide the licence texts for the licensed software being used at cost price, either on a USB stick or a similar data car- rier. Please send an email to the following email address for more information: licenses@becker‑antriebe.com... -
Page 5: Intended Use
Intended use The transmitter described in these instructions must only be used indoors for the operation of radio drives and radio control units that are compatible with the CentronicPlus. • Please note that radio-controlled systems may not be used in areas with a high risk of interference (e.g. -
Page 6: Explanation Of Displays And Buttons
Explanation of displays and buttons 1. LED ring function button button 6. Battery compartment button (STOP) programming button button Explanation of functions LED ring Display of: • Confirmations from receiver • Channel selection • manual / automatic • Threshold / dimming values •... - Page 7 Keypad , , • Drive commands • Memory function • Intermediate position I + II Function button • Channel selection / Group selection / Central command Programming button • Environment scan, as well as selection and programming of receivers • Add and remove receivers to/from the installation •...
- Page 8 8-channel hand-held transmitter Channel Group Colour LED ring Channel 1 - 4 Group 1 green Channel 5 - 8 Group 2 Channel 1 - 8 Group all White (central command) 16-channel hand-held transmitter Channel Group Colour LED ring Channel 1 - 4 Group 1 green Channel 5 - 8...
- Page 9 You can toggle between manual and automatic mode by pressing the STOP button for 5 seconds. Battery status Battery status low LED ring flashes yellow 4 times following normal feedback. Battery status empty LED ring flashes red 4 times following normal feedback.
-
Page 10: Programming Transmitter
Programming transmitter Please find the appropriate description in the instructions for the receiver. Restoring the factory settings of the hand-held transmitter When the factory settings of the transmitter are restored, the settings in the receiver, such as run times, thresholds, intermediate positions, etc. -
Page 11: Installing The Wall Bracket
You can now release the programming button and close the cover of the battery compartment. ► The factory settings of the transmitter have been restored. Installing the wall bracket • Before installation in the de- sired installation position, check that the transmitter and receiver are functioning prop- Wall bracket erly. -
Page 12: Changing Batteries
Changing batteries You will find the appropriate battery type in the "Technical data" chapter. Change the batteries within a minute and do not press any buttons in the process. After the batteries are inserted, the LED ring of the transmitter indicates the current battery charge for a short time. -
Page 13: Disposal
Disposal The crossed-out bin symbol on the product indicates that the device is subject to mandatory disposal separate from household waste. This product must be handed over to a collection point for electrical and electronic equipment at the end of its service life. Remove the battery/batteries and dispose of them at the designated recycling points, and not as household waste. -
Page 14: What To Do If
What to do if...? Problem Remedy Tubular drive/receiver is not re- Insert new batteries into the hand- sponding. held transmitter. Insert batteries into the hand-held transmitter correctly. Reduce distance from receiver. Program transmitter. Check the receiver. Required tubular drive/receiver is not Select correct channel.
