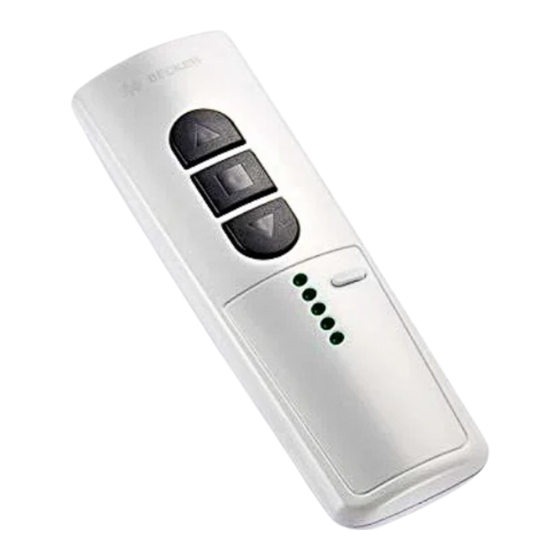

Centronic EasyControl
EC5410A-II
Assembly and Operating Instructions
en
10-channel hand-held transmitter
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
4034 630 197 0 14/07/2022
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Becker Centronic EasyControl EC5410A-II
Summary of Contents for Becker Centronic EasyControl EC5410A-II
- Page 1 Assembly and Operating Instructions 10-channel hand-held transmitter Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 4034 630 197 0 14/07/2022 Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4 35764 Sinn/Germany www.becker-antriebe.com...
-
Page 2: Table Of Contents
Table of contents General information ................. 3 Warranty .................... 3 Safety instructions ................... 4 Intended use ................... 5 Explanation of displays and buttons ............ 6 Explanation of functions ................ 7 Programming the transmitter .............. 8 Installing the wall bracket................ 9 Changing batteries................... -
Page 3: General Information
General information Products such as roller shutter and sun protection systems, light controls and remote-controlled sockets can be operated using the 10 transmission chan- nels. In addition to the 10 individual transmission channels, this transmitter also has 3 central transmission channels which operate transmission channels 1-5, 6-10 and 1-10. -
Page 4: Safety Instructions
Safety instructions General information • Please keep the instruction manual safe! • Only use in dry rooms. • Only use unmodified original parts from the control unit manufacturer. • Keep children away from control units. • Observe all pertinent country-specific regulations. •... -
Page 5: Intended Use
Intended use The transmitter described in these instructions must only be used for operat- ing Centronic-compatible radio drives and radio control units. • Please note that radio-controlled systems may not be used in areas with a high risk of interference (e.g. hospitals, airports). •... -
Page 6: Explanation Of Displays And Buttons
Explanation of displays and buttons UP button STOP button DOWN button Channel selection button Channel indicator lamps Programming button Labelling field Type plate 6 - en... -
Page 7: Explanation Of Functions
Explanation of functions Channel The channel of a transmitter can be programmed into one or more receivers. One receiver is operated through an individual command, several receivers through a group command. Central command If all the channels of the transmitter are selected, it is possible to operate all of the assigned receivers/groups simultaneously. -
Page 8: Programming The Transmitter
Programming the transmitter 1) Programming the master transmitter The central commands 1-5, 6-10 and 1-10 cannot be pro- grammed separately. a) Readying the receiver for programming Follow the Assembly and Operating Instructions for the re- ceiver. Operate the programming button on the transmitter using a suitable cylindrical tool (e.g. -
Page 9: Installing The Wall Bracket
Installing the wall bracket • Before installation in the de- sired installation position, Wall bracket check that the transmitter and receiver are functioning prop- erly. Wall bracket Unlocking mechanism mounting • Fix the bracket to the wall with plate the two screws enclosed. Changing batteries You will find the appropriate battery type in the "Technical data"... -
Page 10: Technical Data
Technical data Rated voltage 3 V DC Battery type CR 2430 Degree of protection IP 20 Permissible ambient temperature -10 °C to +55 °C Maximum emitted transmission output ≤ 3 mW Radio frequency 915.3 MHz The maximum transmitter range on and in the building is up to 15 m, and up to 150 m in the open.
