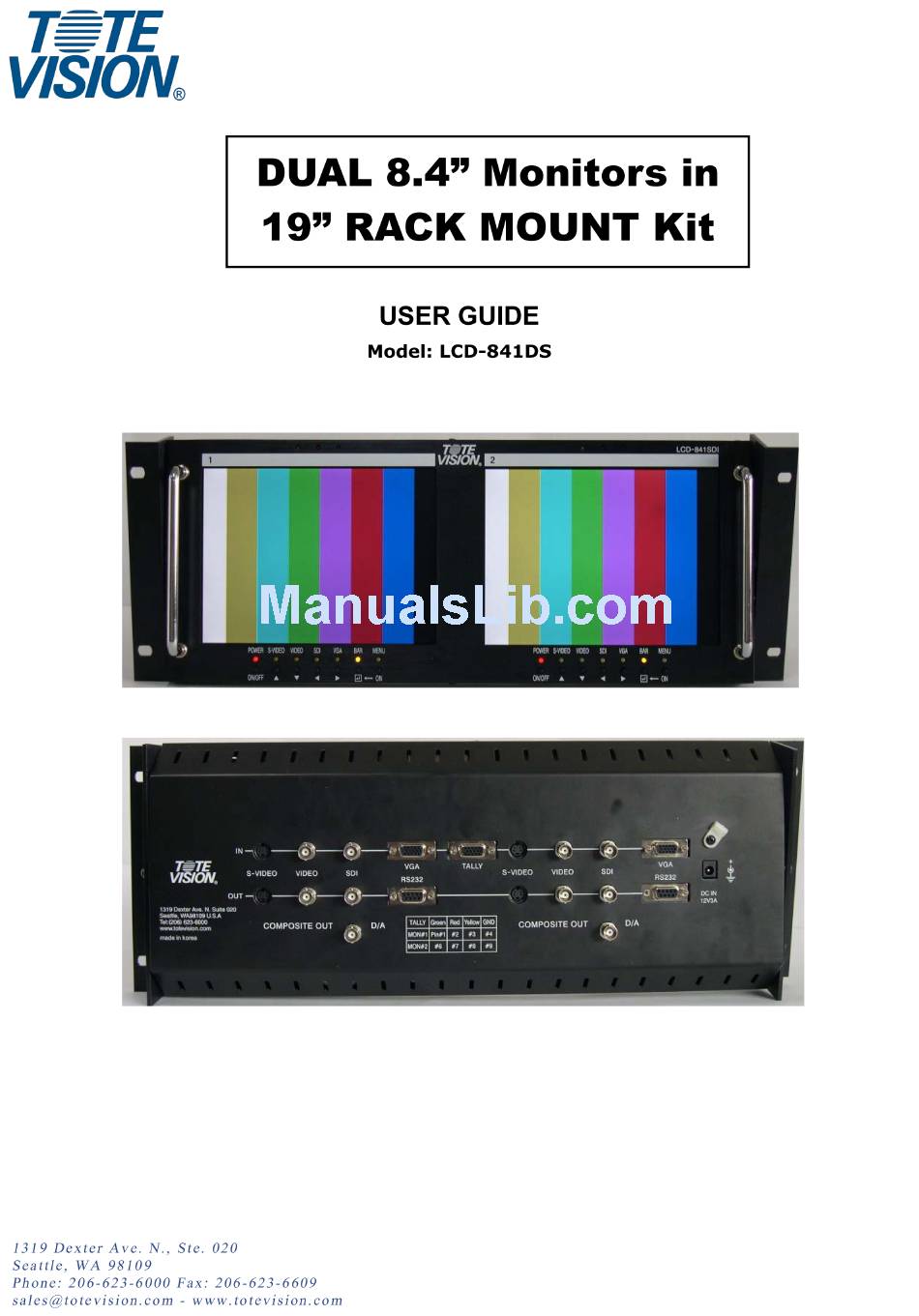

- Page 2 DUAL 8.4” Monitors in 19” RACK MOUNT Kit USER GUIDE Model: LCD-841DS specification dated : April 2005...
- Page 3 On or Off. 8. The VGA input of the LCD-841DS is accessed via the DB-15 connector on the back of the unit labeled ‘VGA’. This input accepts from 640x480 up to 1280 x 1024 with refresh rates from 60Hz to 85Hz.
- Page 4 TALLY SYSTEM - The tally system on the LCD-841DS is accessed via the DB-15 connector on the back of the unit labeled ‘TALLY’. The system works by closing the contacts between the ground pin and the corresponding LED pin. The system is self powered, DO NOT GIVE POWER TO THE PINS.
- Page 5 3. For “In Warranty repairs” enclose a check or money order payable to the order of ToteVision for the sum of $15.00 for return postage and handling.
