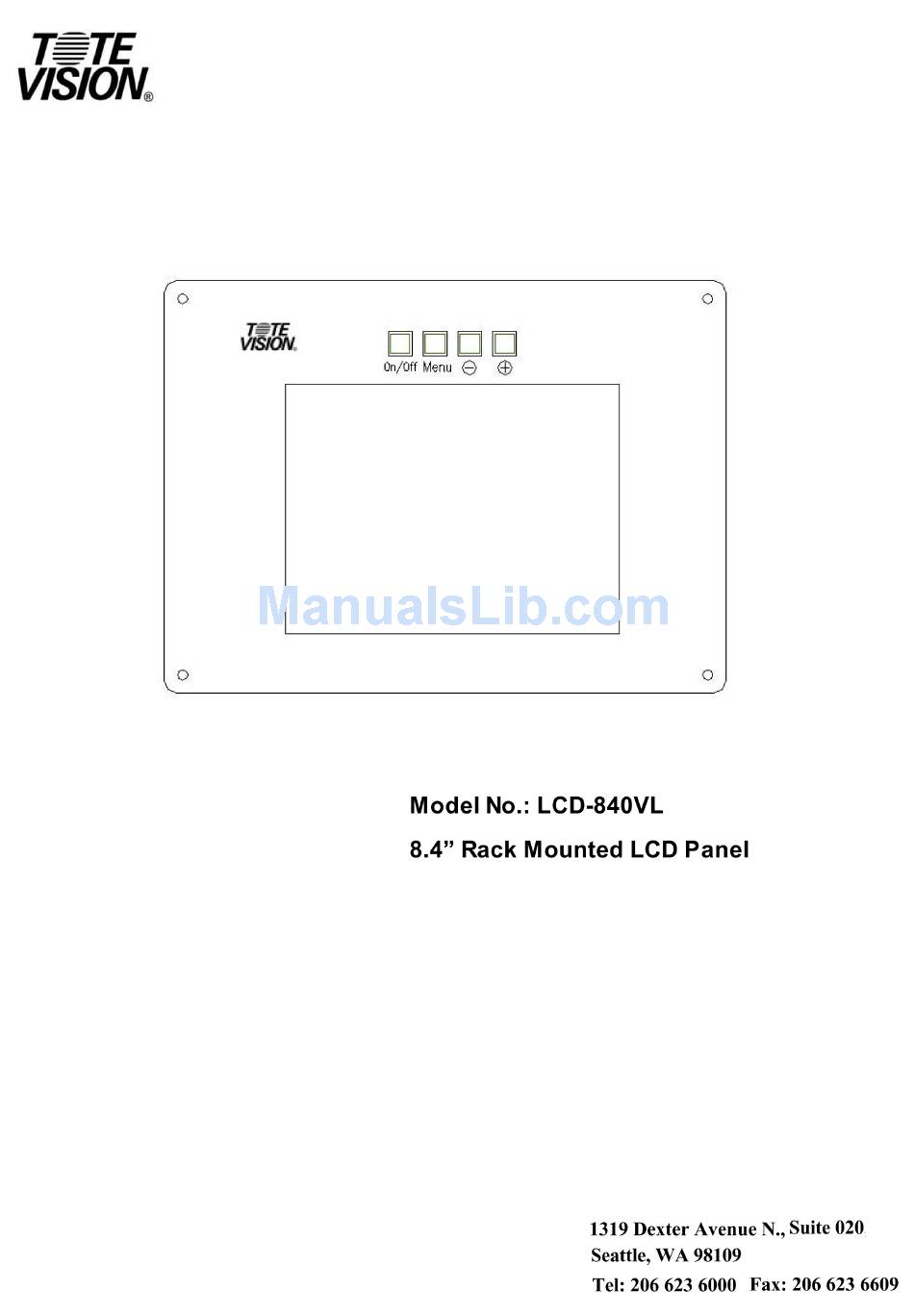

Totevision LCD-840VL User Manual

8.4" rack mounted lcd panel
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the LCD-840VL and is the answer not in the manual?

Questions and answers

Related Manuals for Totevision LCD-840VL

Summary of Contents for Totevision LCD-840VL

  • Page 2: Key Define

    Key Define: Œ UP: Press this button to increase or decrease the value of the adjustment functions. • DOWN: Press this button to increase or decrease the value of the adjustment functions. Ž ENTER: Press this button for menu adjusting, selecting the menu you want with “UP”...
  • Page 3 * Contrast: Adjust the white color level of the image * Back Light: Adjust the back level of the panel * Recall: When you run the function, the monitor will be setting to last status of the saving value * Exit: Return to last menu 2.

  • Page 4: Exit Menu

    ---Press “ENTER” button to enter this mode ---Press “UP” or “DOWN” button to select the desired adjustment item * Recall All: When you run the function, the monitor will be setting to last * Exit: Return to last menu 6. Exit Menu...
  • Page 5 1. Auto Config ---Press “ENTER” button to enter this mode ---Press “UP” or “DOWN” button to select the desired adjustment item * Auto Config: Select “YES” to make the monitor have the best efficiency * Exit: Return to last menu 2. Position ---Press “ENTER”...
  • Page 6 Phase * Phase: Adjust the noise of the image Recall Exit * Recall When you run the function, the monitor will be * Exit: Return to last menu 5. Color ---Press “ENTER” button to enter this mode ---Press “UP” or “DOWN” button to select the desired Color Color 9300°K...
  • Page 7 Image Mode Select Dithering Select Input Exit Information Recall Recall All Exit Exit Menu 7. IMAGE ---PRESS “ENTER” BUTTON TO ENTER THIS MODE ---PRESS “UP” OR “DOWN” BUTTON TO SELECT THE DESIRED ADJUSTMENT ITEM * MODE SELECT: CHANGE DOS MODE RESOLUTION 640 x 400 OR 720 x 350 OR 720 x 400 * DITHERING: N/A * SELECT INPUT: PRESS TO SELECT INPUTS VGA / S-VIDEO /...

  • Page 8: Specifications

    OPERATING TEMPERATURE: STORAGE TEMPEATURE: DC POWER SUPPLY: POWER CONSUMPTION: CONNECTORS: RESPONSE: DIMENTIONS: LCD-840VL 8.4” (DIAGONAL) 800 (H) x 600 (V) 0.213 (H) x 0.213 (V) 170.4 (H) x 127.8 (V) R.G. B.VERTICAL STRIPE 250 NIT TYP NTSC / PAL (DUAL.CAPABLITY) / SECAM / NTSC4.43...
