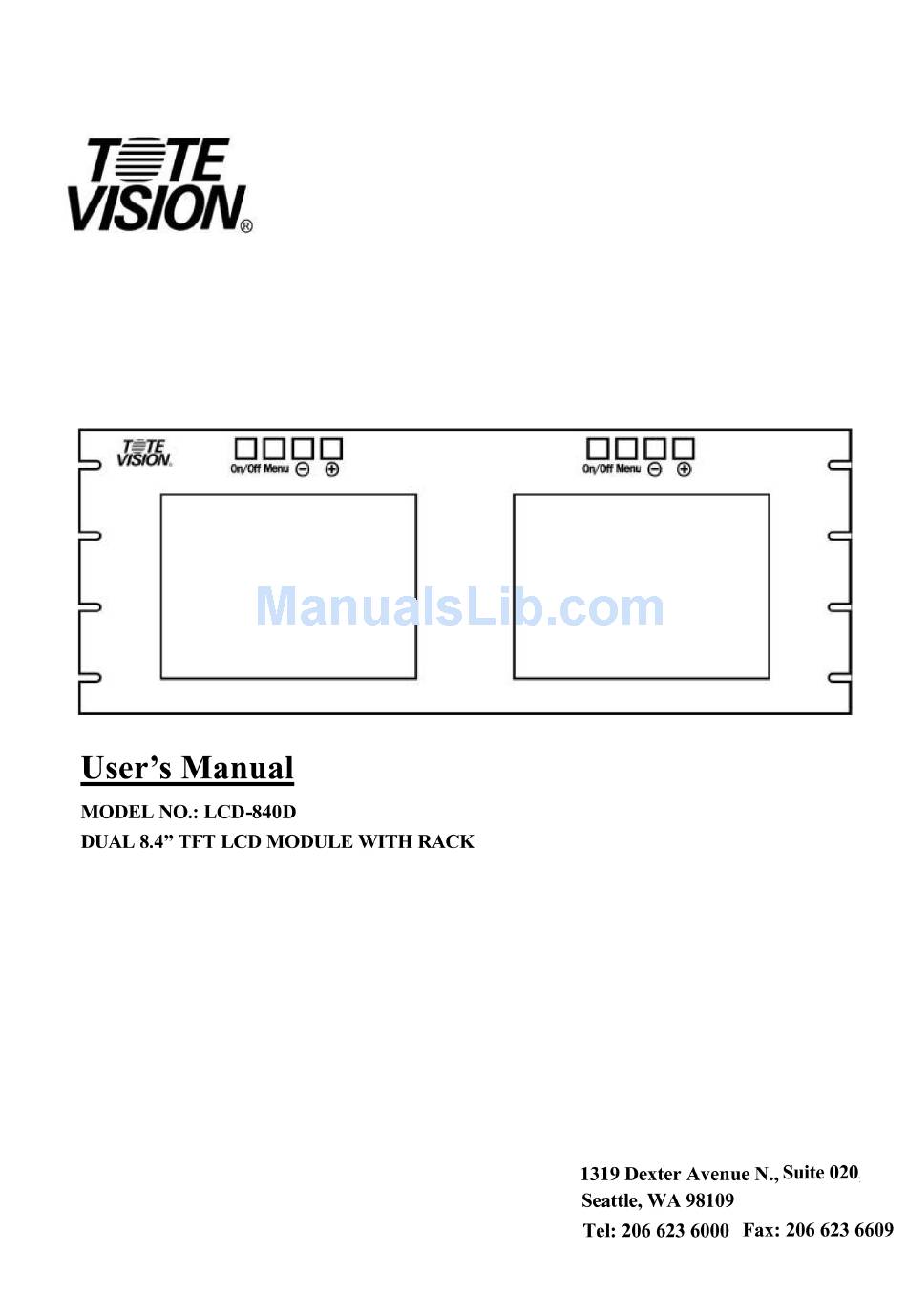

Totevision LCD-840D User Manual

Dual 8.4" tft lcd module with rack
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCD-840D and is the answer not in the manual?

Questions and answers

Related Manuals for Totevision LCD-840D

Summary of Contents for Totevision LCD-840D

  • Page 2: Front View

    FRONT VIEW BACK VIEW BOTTOM VIEW 1. ON/OFF : PRESS THIS BUTTON TO TURN ON THE POWER. PRESS AND HOLD FOR MORE THAN 2 SECONDS TO TURN THE POWER OFF. UNDER POWER ON CONDITION, THIS BUTTON ACTS AS INPUT MODE SELECTOR (VGA/ S-VIDEO/ VGA).
  • Page 3 * CONTRAST: TO ADJUST THE WHITE COLOR LEVEL OF THE IMAGE. * BACK LIGHT: TO ADJUST THE BACK LEVEL OF THE PANEL * RECALL: WHEN YOU RUN THE FUNCTION, THE MONITOR WILL BE SETTING TO LAST STATUS OF THE SAVING VALUE * EXIT: RETURN TO LAST MENU 2.

  • Page 4: Exit Menu

    ---PRESS “ENTER” BUTTON TO ENTER THIS MODE ---PRESS “UP” OR “DOWN” BUTTON TO SELECT THE DESIRED ADJUSTMENT ITEM * RECALL ALL: WHEN YOU RUN THE FUNCTION, THE MONITOR WILL BE SETTING TO LAST * EXIT: RETURN TO LAST MENU 6. EXIT MENU...
  • Page 5 1. AUTO CONFIG ---PRESS “ENTER” BUTTON TO ENTER THIS MODE ---PRESS “UP” OR “DOWN” BUTTON TO SELECT THE DESIRED ADJUSTMENT ITEM * AUTO CONFIG: SELECT “YES” TO MAKE THE MONITOR HAVE THE BEST EFFICIENCY * EXIT: RETURN TO LAST MENU 2. POSITION ---PRESS “ENTER”...
  • Page 6 Phase Recall * PHASE: TO ADJUST THE NOISE OF THE IMAGE Exit * RECALL: WHEN YOU RUN THE FUNCTION, THE MONITOR * EXIT: RETURN TO LAST MENU 5. COLOR ---PRESS “ENTER” BUTTON TO ENTER THIS MODE ---PRESS “UP” OR “DOWN” BUTTON TO SELECT THE DESIRED Color Color 9300°K...
  • Page 7 Image Mode Select Dithering Select Input Exit Information Recall Recall All Exit Exit Menu 7. IMAGE ---PRESS “ENTER” BUTTON TO ENTER THIS MODE ---PRESS “UP” OR “DOWN” BUTTON TO SELECT THE DESIRED ADJUSTMENT ITEM * MODE SELECT: CHANGE DOS MODE RESOLUTION 640 x 400 OR 720 x 350 OR 720 x 400 * DITHERING: N/A * SELECT INPUT: PRESS TO SELECT INPUTS VGA / S-VIDEO /...

  • Page 8: Specifications

    A. DUAL 8.4” TFT LCD MODULE WITH RACK B. 4A AC ADAPTER x 1 C. RCA CABLE x 2 D. S-VIDEO CABLE x 2 E. D-SUB CABLE x 2 LCD-840D 8.4” x 2 BUILT IN CCFT NTSC / PAL (DUAL.CAPABLITY) / SECAM / NTSC4.43 800 (H) x 600(V) 0.213 (H) x 0.213 (V)
