MikroTik cAP ax Quick Manual

Quick Guide - cAP ax
EN - English - Quick Guide:
This device needs to be upgraded to RouterOS v7.7 or the latest stable version, to ensure compliance
with local authority regulations!
It is the end users' responsibility to follow local country regulations, including operation within legal
frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS)
requirements. All MikroTik radio devices must be installed according to instructions.

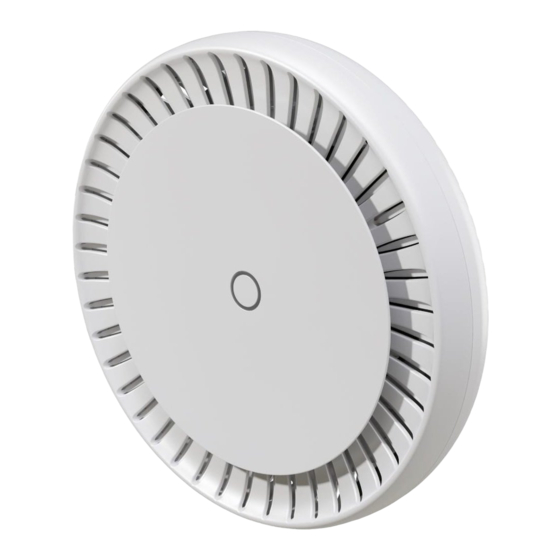

This Quick Guide covers the model: cAPGi-5HaxD2HaxD (cAP ax).
This is a wireless network device. You can find the product model name on the case label (ID).
Please visit the user manual page on https://mt.lv/um for the full up-to-date user manual. Or scan the
QR code with your mobile phone.
The most important technical specifications for this product can be found on the last page of this Quick
Guide.
Technical specifications, brochures, and more info about products are at https://mikrotik.com/products
Configuration manual for software in your language with additional information can be found
at https://mt.lv/help
If you need help with configuration, please seek a consultant https://mikrotik.com/consultants
First steps:
Make sure your Internet service provider is allowing hardware change and will issue an automatic IP
address;
Connect the device to the power source;
Open network connections on your computer and search for MikroTik wireless network - connect to
it;
The configuration can be done through the wireless network using a web browser or mobile app.
Alternatively, you can use a WinBox configuration tool https://mt.lv/winbox;
https://192.168.88.1 in your web browser to start configuration, user name: admin and there is
Open
no password by default (or, for some models, check user and wireless passwords on the sticker);
Click the (Check for updates) button and update your RouterOS software to the latest version;
