MikroTik cAP Installation And Use Manual

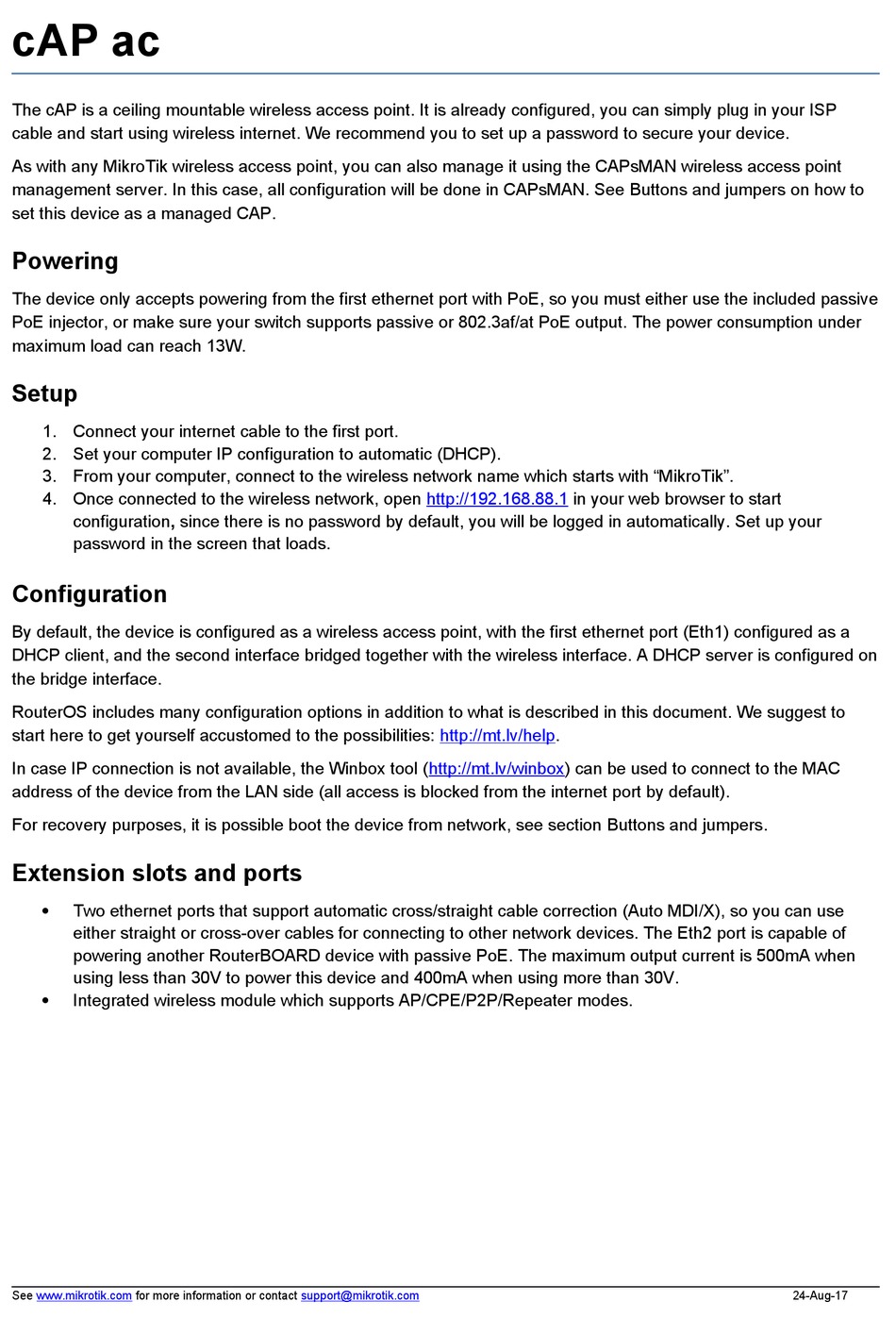

cAP ac

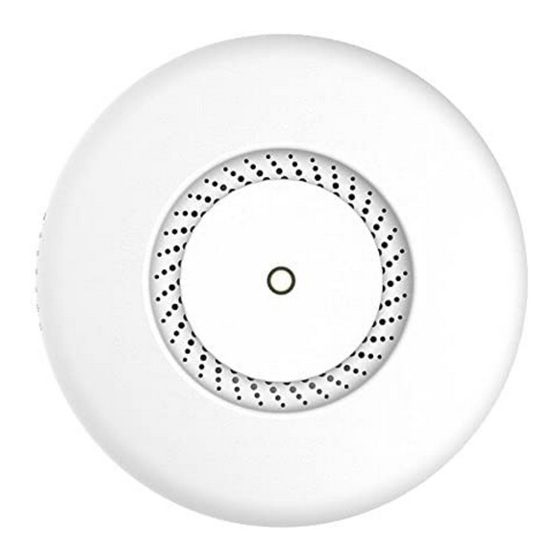

The cAP is a ceiling mountable wireless access point. It is already configured, you can simply plug in your ISP
cable and start using wireless internet. We recommend you to set up a password to secure your device.
As with any MikroTik wireless access point, you can also manage it using the CAPsMAN wireless access point
management server. In this case, all configuration will be done in CAPsMAN. See Buttons and jumpers on how to
set this device as a managed CAP.

Powering

The device only accepts powering from the first ethernet port with PoE, so you must either use the included passive
PoE injector, or make sure your switch supports passive or 802.3af/at PoE output. The power consumption under
maximum load can reach 13W.

Setup

1. Connect your internet cable to the first port.
2. Set your computer IP configuration to automatic (DHCP).
3. From your computer, connect to the wireless network name which starts with "MikroTik".
4. Once connected to the wireless network, open
configuration, since there is no password by default, you will be logged in automatically. Set up your
password in the screen that loads.

Configuration

By default, the device is configured as a wireless access point, with the first ethernet port (Eth1) configured as a
DHCP client, and the second interface bridged together with the wireless interface. A DHCP server is configured on
the bridge interface.
RouterOS includes many configuration options in addition to what is described in this document. We suggest to
start here to get yourself accustomed to the possibilities: http://mt.lv/help.
In case IP connection is not available, the Winbox tool (http://mt.lv/winbox) can be used to connect to the MAC
address of the device from the LAN side (all access is blocked from the internet port by default).
For recovery purposes, it is possible boot the device from network, see section Buttons and jumpers.

Extension slots and ports

Two ethernet ports that support automatic cross/straight cable correction (Auto MDI/X), so you can use

either straight or cross-over cables for connecting to other network devices. The Eth2 port is capable of
powering another RouterBOARD device with passive PoE. The maximum output current is 500mA when
using less than 30V to power this device and 400mA when using more than 30V.
Integrated wireless module which supports AP/CPE/P2P/Repeater modes.

See www.mikrotik.com for more information or contact
http:// 192.168.88.1
support@mikrotik.com
in your web browser to start
24-Aug-17
