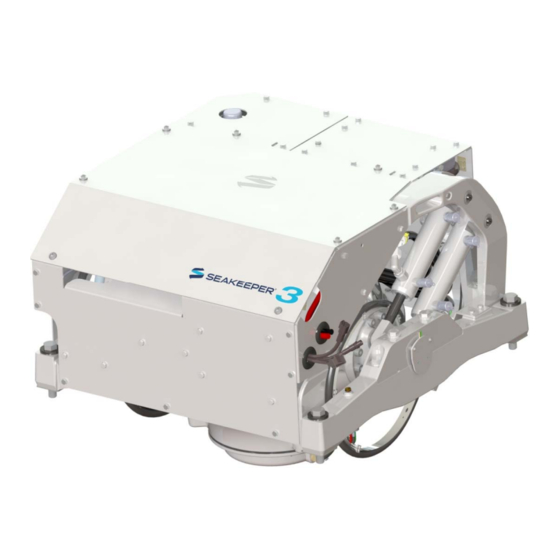

Procedure: CRATE UNPACKING INSTRUCTIONS
Description: Instructions for how to disassemble the gyro crate
A SEAKEEPER 35 gyro is shown in the illustrations below.

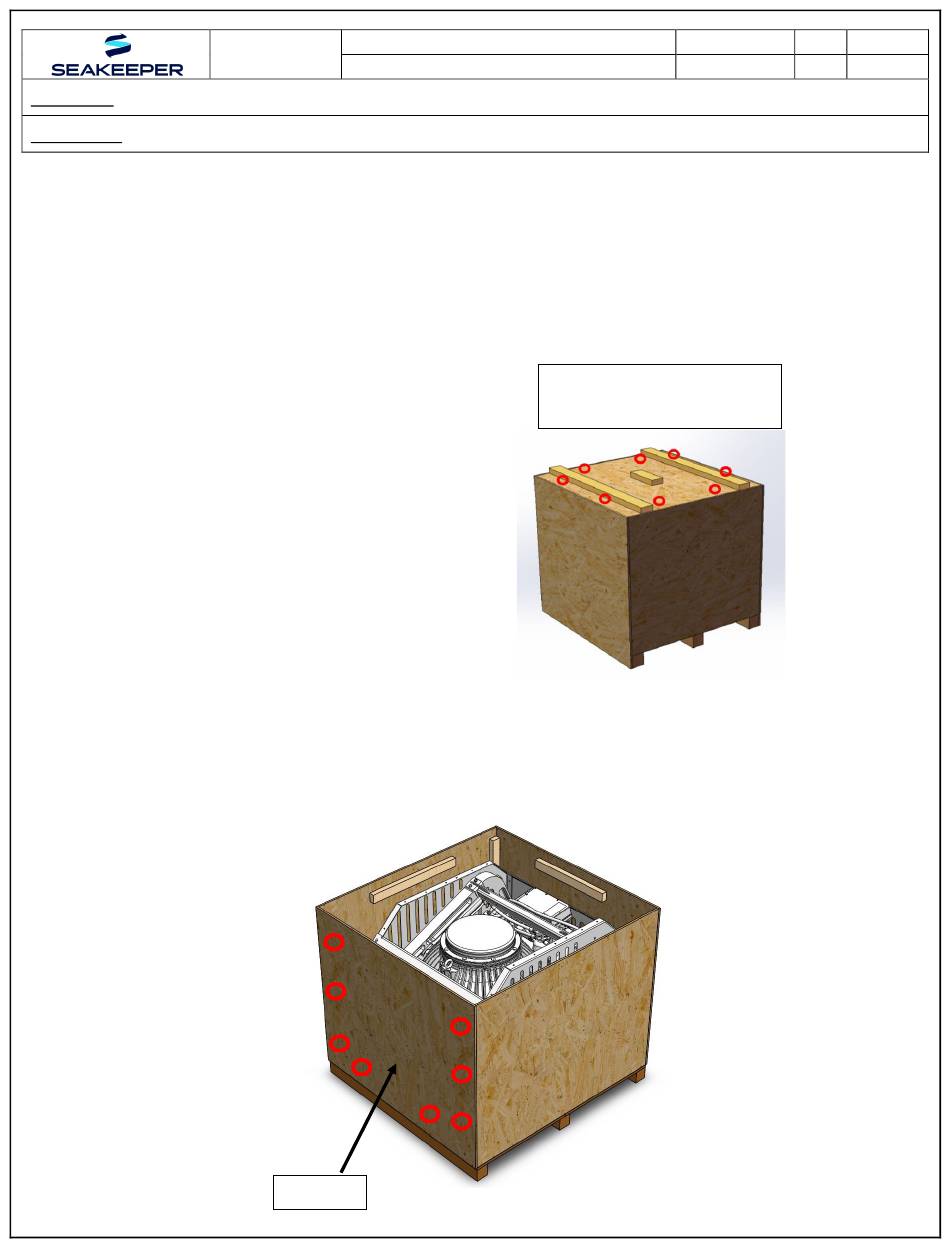

1) Inspect crate and note any damage.
Remove the marked screws that attach
the lid to the crate as shown. Carefully
remove the lid.
2) Remove marked screws from panel A as shown below. Remove panel A.
Product:
UNPACKING
INSTRUCTIONS
SEAKEEPER 3

Panel A

Document #:
90394
Remove screws from circled
location.
Rev:
Page:
3
1 of 5
