- Page 1 ® In-Sight SnAPP Series Quick Reference Guide 2023 September 01 Revision: 23.1.0.6...
- Page 2 The safety of any system incorporating this product is the responsibility of the assembler of the system. Do not install Cognex products where they are exposed to environmental hazards such as excessive heat, dust, moisture, humidity, impact, vibration, corrosive substances, flammable substances, or static electricity.
- Page 3 Ensure that the cable bend radius begins at least six inches from the connector. Cable shielding can be degraded or cables can be damaged or wear out faster if a service loop or bend radius is tighter than 10X the cable diameter.
- Page 4 Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.
-
Page 5: Mounting Brackets
Accessories You can purchase the following components separately. For a list of options and accessories, contact your local Cognex sales representative. Mounting Brackets Accessory Product Number Illustration Pivot mounting bracket DM100-PIVOTM-01 Tilted angle pivot bracket DMBK-DMPIVOT-00 Cables Note: Cables are sold separately. - Page 6 Accessory Product Number Illustration Ethernet Cable, Robotic X-Coded CCB-84901-2RBT-xx (straight, xx specifies length: M12-8 to RJ-45 2m, 5m, 10m) X-Coded to A-Coded Ethernet cable CCB-M12X8MS-XCAC adapter, 0.5 m Power and I/O Breakout Cable, M12- CCB-PWRIO- xx (straight, xx specifies length: 5m, 12 to Flying Lead 10m, 15m) Power and I/O Breakout Cable, M12-...
- Page 7 Note: Cables are sold separately. If a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support. CAUTION: All cable connectors are keyed to fit the connectors on the vision...

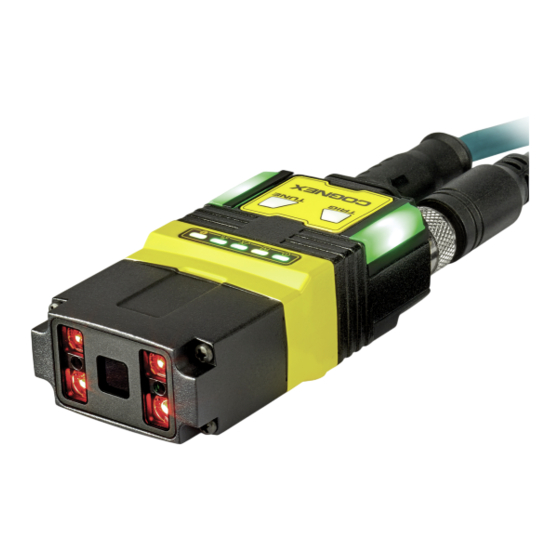

- Page 8 Vision Sensor Layout The image and table below shows the elements of the vision sensor. Number Description Power I/O Breakout cable connector USB-C slot (with plastic cover) Ethernet connector Illumination LEDs...
- Page 9 Number Description LED aimer Trigger button Note: The Trigger Button is not supported. Tune button Note: The Tune Button is not supported. Indicator LEDs...
- Page 10 Number Description Power LED indicator Train status/Trigger status LED indicator Good/bad inspection LED indicator Communication LED indicator Error LED indicator...
- Page 11 Dimensions The following sections list dimensions of the vision sensor. Note: Dimensions are in millimeters and are for reference purposes only. All specifications are for reference purposes only and can change without notice.
- Page 12 In-Sight SnAPP with 16 mm Lens The following image shows the dimensions of In-Sight SnAPP equipped with 16 mm lens.
- Page 13 In-Sight SnAPP with 6.2 mm Lens - Right Angle Configuration The following image shows the dimensions of In-Sight SnAPP equipped with L- shaped extension and 6.2 mm lens.
-
Page 14: Field Of View And Working Distance
Field of View and Working Distance This section provides the Field of View (FoV) values for the In-Sight SnAPP configurations. (On the diagrams, the values at the top are in mm and the values at the bottom of the top values in the brackets are in inch). In-Sight SnAPP with 6.2 mm Lens Working Distance Horizontal FOV... - Page 15 Working Distance Horizontal FOV Vertical FOV Maximum 500 mm (19.69 in) 325 mm (12.8 in) 243.8 mm (9.60 in) In-Sight SnAPP Mini with 16 mm Lens Working Distance Horizontal FOV Vertical FOV Minimum 200 mm (7.87 in) 25.2 mm (1 in) 18.9 mm (0.74 in) Midpoint 450 mm (17.72 in)
- Page 16 Working Distance Horizontal FOV Vertical FOV Maximum 700 mm (27.56 in) 126 mm (4.96 in) 94.5 mm (3.72 in) Mounting the Vision Sensor CAUTION: The vision sensor has to be grounded, either by mounting the vision sensor to a fixture that is electrically grounded or by attaching a wire from the vision sensor’s mounting fixture to frame ground or Earth ground.
- Page 17 2. Insert the screws. Note: The vision sensor has two sets of threaded holes for mounting. Use only one set depending on the best configuration for your application. For the threaded holes closer to the front of the vision sensor you need M3X5 screws, for those closer to the connectors M3X9.
- Page 18 3. If needed, you can rotate the mounting bracket up to 45 degrees. To do so, loosen the screw in the curved slot. Note: Mounting the vision sensor at a slight, 15 degree angle reduces reflections and improves performance.
-
Page 19: Connecting The Ethernet Cable
Connecting the Ethernet Cable CAUTION: The Ethernet cable shield has to be grounded at the far end. Whatever this cable is plugged into (typically a switch or router) should have a grounded Ethernet connector. A digital voltmeter has to be used to validate the grounding. - Page 20 Connecting the Power and I/O Breakout Cable CAUTION: To reduce emissions, connect the far end of the Breakout cable shield to frame ground. Note: Perform wiring or adjustments to I/O devices when the vision sensor is not receiving power. You can clip unused wires short or use a tie made of non-conductive material to tie them back.
- Page 21 To connect to In-Sight SnAPP, perform the following steps: 1. Connect your vision sensor to a power source and the network. 2. Launch Cognex Device Discovery Utility. Make sure your PC is on the same network as your vision sensor.
-
Page 22: Network Settings
Host Name or set a User Name and a Password. You can also import network settings by clicking on the Import Settings button. Click Apply to save your changes. Factory Reset Reset your vision sensor from Cognex Device Discovery Utility by clicking Factory Reset. - Page 23 A dialog confirms the completion of resetting your vision sensor to factory settings. Click OK to proceed.
-
Page 24: Specifications
Specifications The following sections list general specifications for the vision sensor. In-Sight SnAPP Series Vision Sensor In-Sight SnAPP Specification 6.2 mm: 141 g Weight 16 mm: 169 g Right angle configuration adds 50 g 24 V DC +/- 10%, PoE (Power over Ethernet) - Page 25 / 15 mm) FedEx Vibration Testing for packaged products 150 lbs or less (Shipping and Storage) RS-232 RxD, TxD according to TIA/EIA-232-F In-Sight SnAPP Series Vision Sensor Image Sensor In-SightSnAPP Specification Image Sensor 1/2.8-inch CMOS monochrome and color Image Sensor Properties Pixel size: 2.8 μm (H) x 2.8 μm (V)
- Page 26 LED and Laser Wavelengths Model Wavelength In-Sight SnAPP Series Vision Sensor with 6.2mm Lens White Chromaticity coordinates acc. to CIE Illumination/with 16mm Lens and High Powered Illumination 1931 • Cx 0.34 (typ.) • Cy 0.33 (typ.) 617 nm...
-
Page 27: Regulations And Conformity
Regulations and Conformity Note: For the most current CE and UKCA declarations and regulatory conformity information, see the Cognex support site: cognex.com/support. In-Sight SnAPP vision sensors have Regulatory Model number 50208, 50210, 50215, 50216 and meet or exceed the requirements of all applicable standards organizations for safe operation. - Page 28 Safety and Regulatory FCC Part 15, Class A This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 29 中 国 大 陆 RoHS (Information for China RoHS Compliance) 根据 中国 大陆 《 电子信息 产品 污染 控制管 理办 法 》 ( 也称 为中 国大陆 RoHS)， 以 下部 份列 出了 本产 品中可 能包 含的 有 毒有 害物 质或 元素的 名称 和含 量 。 Hazardous Substances 有...
-
Page 30: For European Community Users
For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
