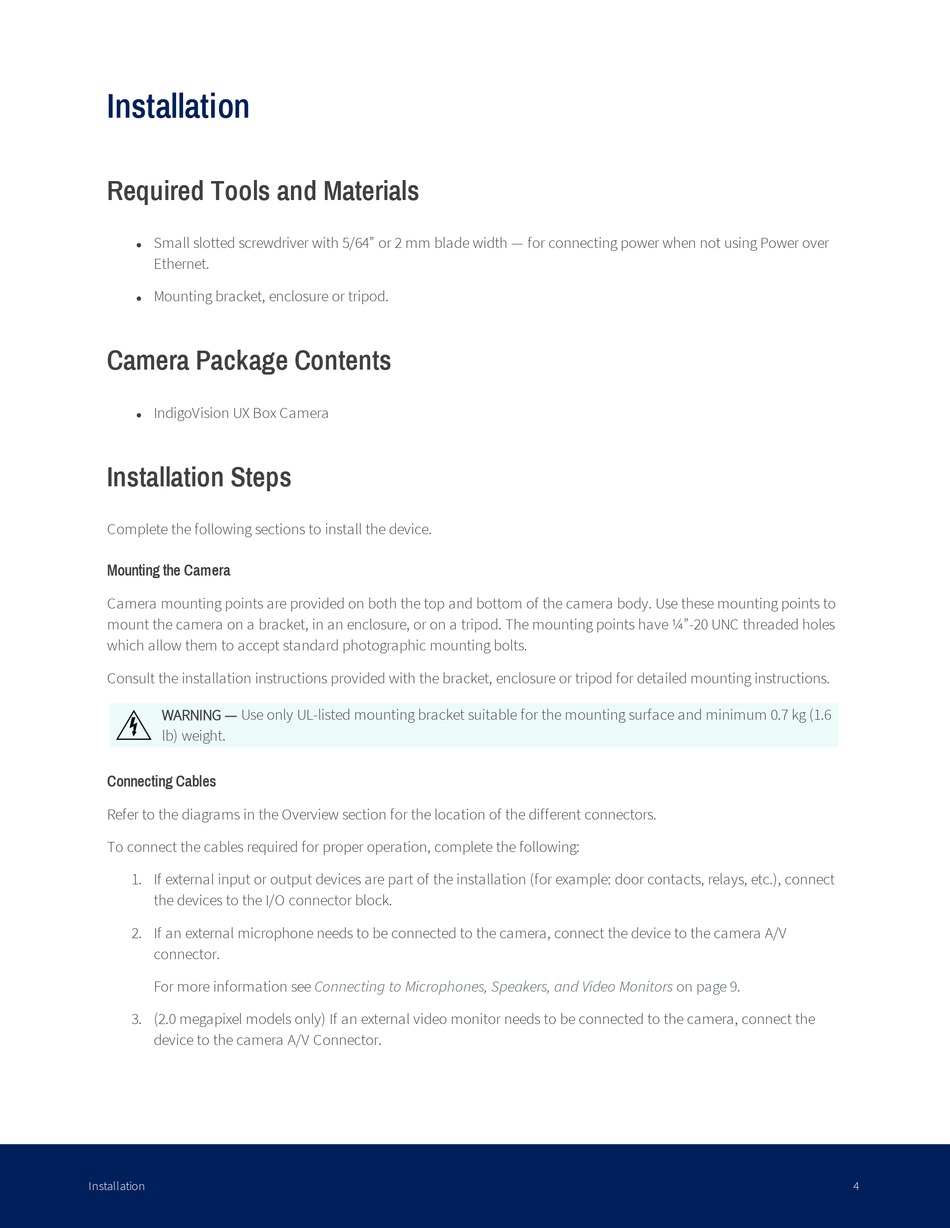

Installation
Required Tools and Materials
Small slotted screwdriver with 5/64" or 2 mm blade width — for connecting power when not using Power over
l
Ethernet.
Mounting bracket, enclosure or tripod.
l
Camera Package Contents
IndigoVision UX Box Camera
l
Installation Steps
Complete the following sections to install the device.
Mounting the Camera
Camera mounting points are provided on both the top and bottom of the camera body. Use these mounting points to
mount the camera on a bracket, in an enclosure, or on a tripod. The mounting points have ¼"-20 UNC threaded holes
which allow them to accept standard photographic mounting bolts.
Consult the installation instructions provided with the bracket, enclosure or tripod for detailed mounting instructions.
WARNING — Use only UL-listed mounting bracket suitable for the mounting surface and minimum 0.7 kg (1.6
lb) weight.
Connecting Cables
Refer to the diagrams in the Overview section for the location of the different connectors.
To connect the cables required for proper operation, complete the following:
1. If external input or output devices are part of the installation (for example: door contacts, relays, etc.), connect
the devices to the I/O connector block.
2. If an external microphone needs to be connected to the camera, connect the device to the camera A/V
connector.
For more information see
3. (2.0 megapixel models only) If an external video monitor needs to be connected to the camera, connect the
device to the camera A/V Connector.
Installation
Connecting to Microphones, Speakers, and Video Monitors on
page 9.
4
