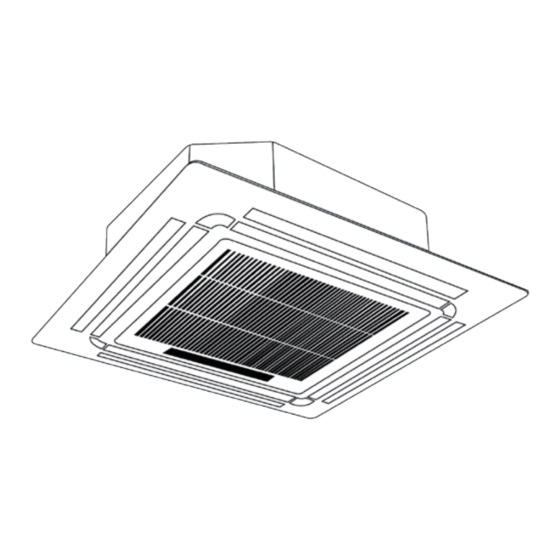

- Page 1 Owners Manual Super-Slim Four-Way Cassette CES37C2D16 CES61C2D16 IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.
- Page 2 Table of Contents Owner’s Manual Safety Precautions ............ SAFETY FIRST Indoor Unit Parts and Major Functions ..05 Manual Operation ............ © 2016 Innovair Corporation. All Rights Reserved. www.innovair.com...
- Page 3 ....... c. Repairing Refrigerant Leaks ...... d. Preparation for Periods of Non-use ..09 Troubleshooting ......... a. Common Problems ......b. Troubleshooting Tips ......European Disposal Guidelines .............. © 2016 Innovair Corporation. All Rights Reserved. www.innovair.com Page 3...
- Page 4 DO NOT touch the evaporator coils inside • can cause electrical shock and cause the the indoor unit. The evaporator coils are product to deteriorate. sharp and may cause injury. Page 4 © 2016 Innovair Corporation. All Rights Reserved. www.innovair.com...
- Page 5 COOL Mode HEAT mode DRY mode 17-32°C 0-30°C 17-32°C Indoor (62-90°F) (32-86°F) (62-90°F) Temperature 0-50°C (32-122°F) -15-24°C 0-50°C Outdoor -15-50°C (5-76°F) (32-122°F) Temperature (5-122°F) (low temperature cooling models) Page 5 © 2016 Innovair Corporation. All Rights Reserved. www.innovair.com...
- Page 6 Clean the air filter every two weeks. A dirty filter can reduce cooling or heating efficiency. • Adjust louvers properly and avoid direct airflow. • Closing the curtains while heating also Doors and windows should be kept helps keep the heat in closed Page 6 © 2016 Innovair Corporation. All Rights Reserved. www.innovair.com...
- Page 7 AUTO after it has cooled with a high wind speed for 30 minutes. The remote control will be disabled during this operation. OFF mode: When the panel is turned OFF, the unit turns off and the remote control is re-enabled. • Page 7 © 2016 Innovair Corporation. All Rights Reserved. www.innovair.com...
- Page 8 filter every two weeks or more frequently if you live in a dusty area. Replace the filter with a new one if it’ s heavily clogged and unable to be cleaned. Page 8 © 2016 Innovair Corporation. All Rights Reserved. www.innovair.com...
- Page 9 3. Clean the air filter according to the instructions in the previous section. Reinstall the clean, dry filter before storing. Fig. 4.4 4. Remove the batteries from the remote control. Page 9 © 2016 Innovair Corporation. All Rights Reserved. www.innovair.com...
- Page 10 This noise is normal and is caused by the refrigerant gas stopping or changing direction. The outdoor unit The unit will make different sounds based on its current operating mode. makes noises Page 10 © 2016 Innovair Corporation. All Rights Reserved. www.innovair.com...
- Page 11 Make sure that all doors and windows are performance and windows closed during use Low refrigerant due to leak or Check for leaks, re-seal if necessary and long-term use top off refrigerant Page 11 © 2016 Innovair Corporation. All Rights Reserved. www.innovair.com...
- Page 12 High/Low voltage protection Flash Compressor top overheating protection Flash Outdoor low temperature protection Flash Compressor drive error Flash Mode conflict Flash Compressor low-pressure protection Flash Outdoor IGBT sensor error Flash Page 12 © 2016 Innovair Corporation. All Rights Reserved. www.innovair.com...
- Page 13 NOTE: Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad for the environment. Hazardous substances may leak into the ground water and enter the food chain. Page 13 © 2016 Innovair Corporation. All Rights Reserved. www.innovair.com...
