1 : 4-pin DC-in PWR Connector
(Input +12V) (DC-IN1)
Pin Signal Name
1 GND
2 DC Input
3 DC Input
4 GND
2 : CPU FAN Connector (+12V) (CPU_FAN1)
Pin Signal Name
1 GND
2 +12V
3 CPU_FAN_SPEED
4 FAN_SPEED_CONTROL
3 : Heater Header (HEATER1)
Pin Signal Name
1 Heater PWR
2 GND
3 NCT
4 : Backlight Volume Control (BLT_VOL1)
Pin Signal Name
1 GPP_E7
2 GPP_E3
3 PWRDN
4 BRIGHTNESS_UP
5 BRIGHTNESS_DW
6 GND
7 GND
5 : SATA Power Output Connector
(SATA_PWR1)
Pin Signal Name
1 +5V
2 GND
3 GND
4 +12V
6 : SATA3 Connector (SATA3_0)
Pin Signal Name
1 GND
2 SATA-A+
3 SATA-A-
4 GND
5 SATA-B-
6 SATA-B+
7 GND

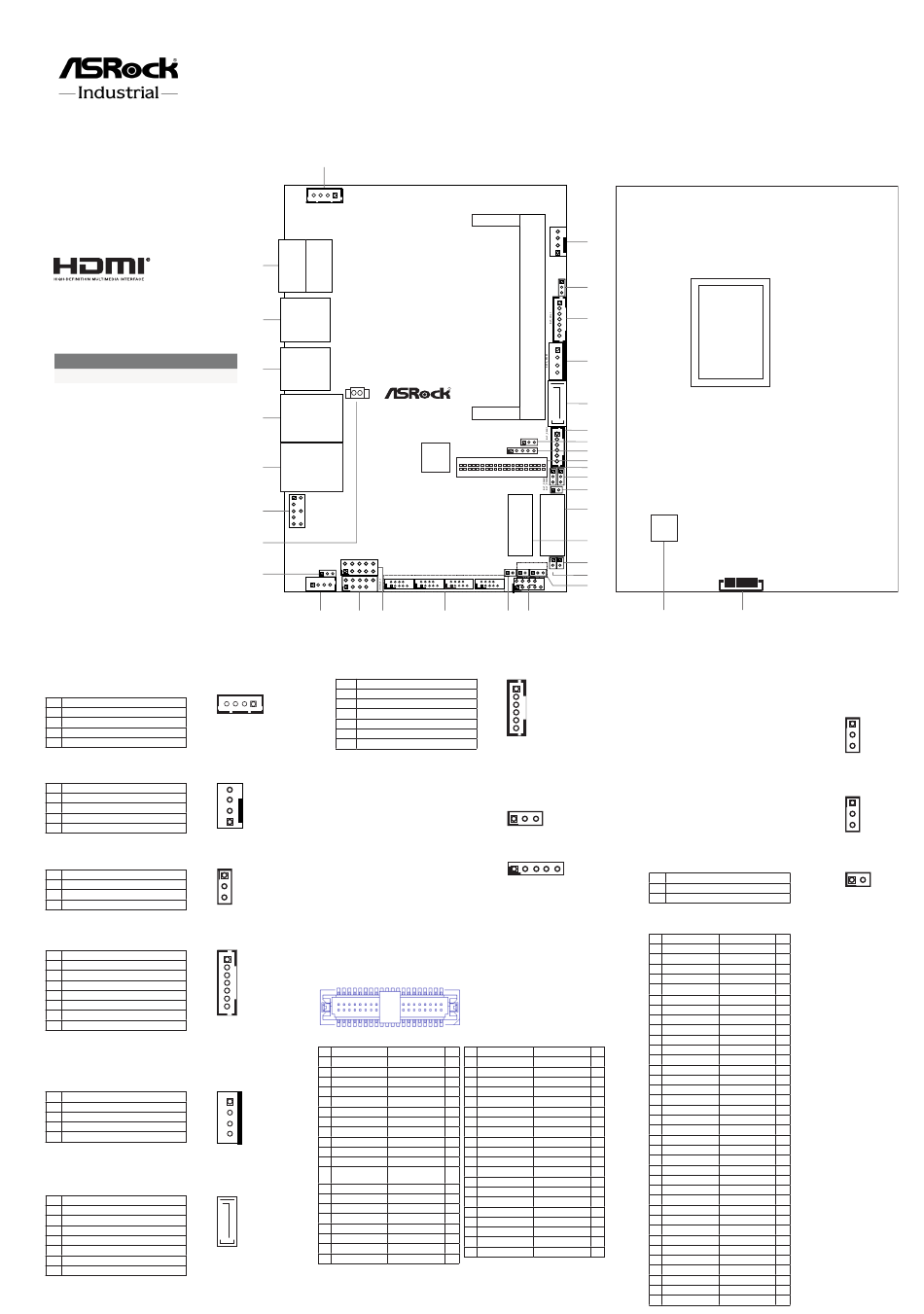

Jumpers and Headers Setting Guide

Top:
1
1
DC-IN1
32
HDMI DP
USB 3.2 Gen2
31
Top: USB3_4
Bottom: USB3_3
USB 3.2 Gen2
30
Top: USB3_2
Bottom: USB3_1
1
BAT1
SBC-261J
29
LAN1
28
LAN2
1
27
HD_AUDIO1
26
JGPIO1
JGPIO_SET1
25
1
1
1
COM1
SPEAKER1
1
1
24 23 22
7 : Inverter Power Control Wafer (BLT_PWR1)
Pin Signal Name
1
2
3
4 1
4
5 LCD_BLT_VCC
6 LCD_BLT_VCC
8 : Backlight Power Select
(LCD_BLT_VCC) (BKT_PWR1)
4
1-2 : LCD_BLT_VCC: +5V (Default)
2-3 : LCD_BLT_VCC: +12V
1
9 : Panel Power Select
(LCD_VCC) (PNL_PWR1)
1
1-2 : +3V (Default)
2-3 : +5V
3
3-4 : +5V
4-5 : +12V
10 : LVDS Panel Connector (LVDS1)
1
1
7
2
Pin Signal Name Signal Name
1 LCD_VCC
3 +3.3V
5 N/A LVDS_A_DATA0# 6
7 LVDS_A_DATA0
1
9 LVDS_A_DATA1# LVDS_A_DATA1 10
11 GND LVDS_A_DATA2# 12
13 LVDS_A_DATA2
15 LVDS_A_DATA3# LVDS_A_DATA3 16
4
17 GND LVDS_A_CLK#
19 LVDS_A_CLK
21 LVDS_B_DATA0# LVDS_B_DATA0 22
LVDS_B_D
23 GND
25 LVDS_B_DATA1
27 LVDS_B_DATA2# LVDS_B_DATA2 28
7
29 DPLVDD_EN LVDS_B_DATA3# 30
31 LVDS_B_DATA3
33 LVDS_B_CLK# LVDS_B_CLK
35 GND CON_LBKLT_EN 36
1
37 CON_LBKLT_CTL LCD_BLT_VCC
39 LCD_BLT_VCC LCD_BLT_VCC
CPU_FAN1
1
1
HEATER1
1
DDR5_A1
1
R
Industrial
1
SATA3_0
1
BKT_PWR1
1
1
PNL_PWR1
BIOS
LVDS1
1
ROM
1
1 1
1
BUZZ2
1
1
M2_E1 M2_E1 M2_M1
1 1
DACC1 CLRMOS2 CLRMOS1
1 1 1
SIO_AT1 CI1
COM2 COM3 COM4 PLED PWRBTN
HDLED RESET
1
PANEL1
1 1 1
21 20 19
1
GND
GND
BL CTL
BL EN
6
1 3
1 5
39
• eDP by pass mode
pin definition:
40
Pin Pin Signal Name Signal Name
LCD_VCC 2 1 LCD_VCC LCD_VCC
N/A 4 3 N/A N/A
5 N/A N/A
GND 8 7 N/A GND
9 EDP_TX1# EDP_TX1
11 GND EDP_TX0#
GND 14 13 EDP_TX0 GND
15 N/A N/A
18 17 GND EDP_AUXN
GND 20 19 EDP_AUXP GND
21 N/A N/A
23 GND N/A
24
ATA1#
25 N/A GND
GND 26
27 N/A N/A
29 DPLVDD_EN N/A
31 N/A GND
NC 32
33 N/A N/A
34
35 GND CON_LBKLT_EN 36
37 CON_LBKLT_CTL LCD_BLT_VCC
38
39 LCD_BLT_VCC LCD_BLT_VCC
40
Bottom:
2
3
4
5
6
7
8
9
10
11
12
13
14
BUZZ1
15
16
17
ESPI1
1
18
34 33
11 : Brightness Control Mode (BLT_PWM1)
1-2 : From eDP PWM to CON_LBKLT_CTL
2-3 : From LVDS PWM to CON_LBKLT_CTL
(Default)
•
Please set to 1-2 when adjusting brightness
by Brightness Control bar under OS.
• Please set to 2-3 when adjusting brightness
by BLT_VOL1.
12 : CON_LBKLT_CTL Voltage Level
(BLT_PWM2)
1-2 : 3V Level (Default)
2-3 : 5V Level
13 : Buzzer Header (BUZZ2)
Pin Signal Name
1 BUZZ+
2 BUZZ-
14 : M.2 Key-M Socket (M2_M1)
Pin Signal Name Signal Name
1 GND +3.3V
3 GND +3.3V
5 NA NA
7 NA NA
9 GND SATA_LED
11 NA +3.3V
13 NA +3.3V
15 GND +3.3V
17 NA +3.3V
19 NA NA
21 GND NA
Pin
23 NA NA
2
25 NA NA
4
27 GND NA
6
29 NA NA
8
31 NA NA
10
33 GND NA
12
35 NA NA
14
37 NA NA
16
39 GND NA
18
41 PERn0/SATA-B+ NA
20
43 PERp0/SATA-B- NA
22
45 GND NA
24
47 PETn0/SATA-A- NA
26
49 PETp0/SATA-A+ PERST#
28
51 GND CLKREQ#
30
53 PEFCLKn NA
32
55 PEFCLKp NA
34
57 GND NA
38
40
67 NA NA
69 PEDET +3.3V
71 GND +3.3V
73 GND +3.3V
75 GND
1
3
1
3
1 2
Pin
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
68
70
72
74
