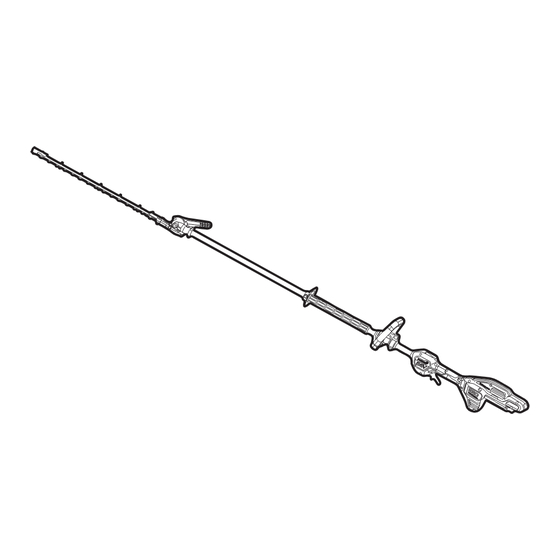

OPERATOR'S MANUAL
56 VOLT LITHIUM-ION COMMERCIAL
CORDLESS ARTICULATING
POLE HEDGE TRIMMER
MODEL NUMBER HTX5300-PA
WARNING: To reduce the risk of injury, the user must read and understand the
Operator's Manual before using this product. Save these instructions for future reference.
MNL_EGO_HTX5300-PA_AV01.01_230608
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EGO HTX5300-PA
Summary of Contents for EGO HTX5300-PA

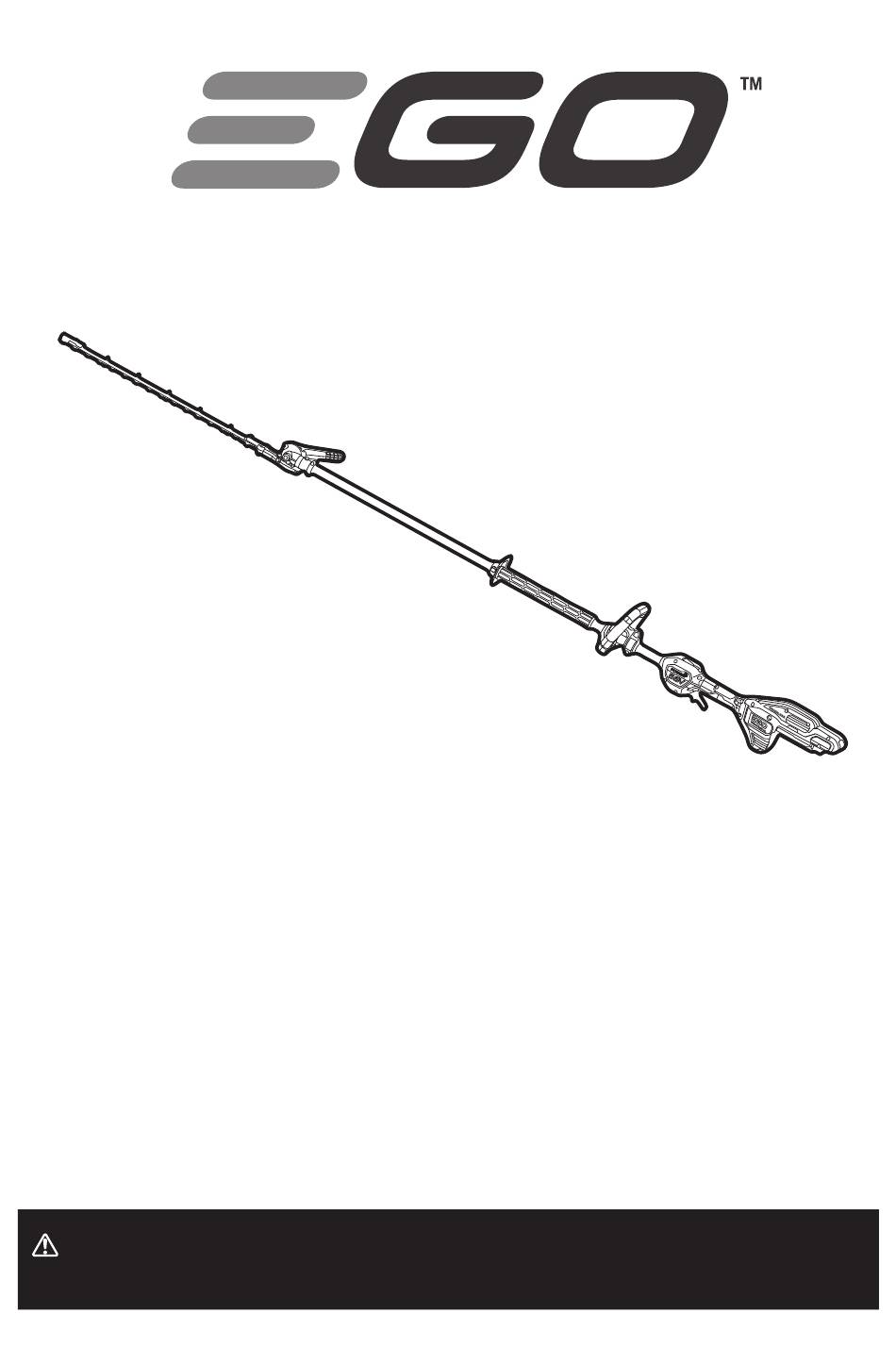

- Page 1 OPERATOR’S MANUAL 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER MODEL NUMBER HTX5300-PA WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference. MNL_EGO_HTX5300-PA_AV01.01_230608...
- Page 2 3. Detent 1. Release Lever 6. Speed Indicator 2. Blade-angle Handle 7. Bluetooth Indicator ® SPEED 8. Speed Mode Button 5. Battery-status Indicator 19. Tip Protector 4. Front 17. Shaft Handle 16. Hand Guard 9. Rear Handle 20. Blade 15. Auxiliary Handle 14.
- Page 3 Tip Protector Support Block Hand Guard Storage Position Locking Pin Detent Cutting Position Blade-angle Handle Release Lever...
- Page 4 +45° +30° +15° 0° -15° -30° -45° -60° -75° -90° Front Handle...
- Page 5 Auxiliary Handle Speed Indicator Battery- Status Indicator Bluetooth ® SPEED Indicator Speed Mode Button...
- Page 6 Cutting Head Assembly Cutting Head Assembly Power Head Assembly...
-
Page 7: Safety Instructions
Direct Current Type or a characteristic of (DC) current .../min Per Minute Revolutions per minute Millimeter Length or size Kilogram Weight °C Degrees Celsius Temperature 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA... -
Page 8: Work Area Safety
(RCD) or remove the battery pack, if detachable, from protected supply. Use of an RCD reduces the risk of the machine before making any adjustments, 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA... -
Page 9: Hedge Trimmer Safety Warnings
Do not use a battery pack or machine that is will decrease the risk of inadvertent starting and damaged or modified. Damaged or modified batteries resultant personal injury from the blades. may exhibit unpredictable behavior resulting in fire, 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA... -
Page 10: Important Safety Instructions
Check the hedges and bushes for foreign objects, of a safety device or to reduce the protection e.g. wire fences and hidden wiring before provided by a safety device. operating the machine. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA... -
Page 11: Specifications
Speed Mode Button positioned upwards and points toward the top of the Rear Handle rear handle. Then insert the clamping block into the 10. Latch handle slot (Fig. B2). 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA... -
Page 12: Operation
WARNING: Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA... -
Page 13: Starting/Stopping The Hedge Trimmer
Hold the hedge trimmer with one hand on the rear handle is started OR the speed mode button is pressed. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA... -
Page 14: Using The Hedge Trimmer
CAN BECOME ELECTRICALLY LIVE AND VERY Remove the battery pack from the machine, then reattach DANGEROUS. Continue to hold the hedge trimmer 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA... -
Page 15: Maintenance
Run the motor briefly so that thick. Use a non-powered hand saw or pruning saw to the solvent is evenly distributed, then wipe the surface trim large stems. with a dry cloth. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA... - Page 16 Remove the battery pack and the sealing bolts (Fig. S). Lubricating the gear cases through the oil-hole. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA...
-
Page 17: Troubleshooting
EGO service center for blade replacement. ◾ ◾ Loose blade bolts. Tighten the blade bolts. Use an adjustable wrench and the included hex key to tighten the blade bolts clockwise. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA... -
Page 18: Warranty Policy
The warranty applies to the original purchaser and applies only to purchases made from authorised EGO Dealers, which can be confirmed on the website store locator. For avoidance of doubt, 3rd party online stores such as eBay, Gumtree, Amazon, etc. are excluded. - Page 19 STX3800, HTX7500, CSX3000, PPX1000, PSX2500, PTX5100, BHX1001, STX4500, 5 years 2 years BCX4500, EDX2000, HTX5300-P, HTX5300-PA, LBPX8000 Commercial Backpack Battery: BAX1501 3 years 2 years Commercial Charger: CHX5500E 3 years 2 years 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA...
