Q-E32003R VESA adapter
Assembly
instructions
The VESA adapter is compatible with the following BenQ (benq.com) products:
EX3203R, EX3501R

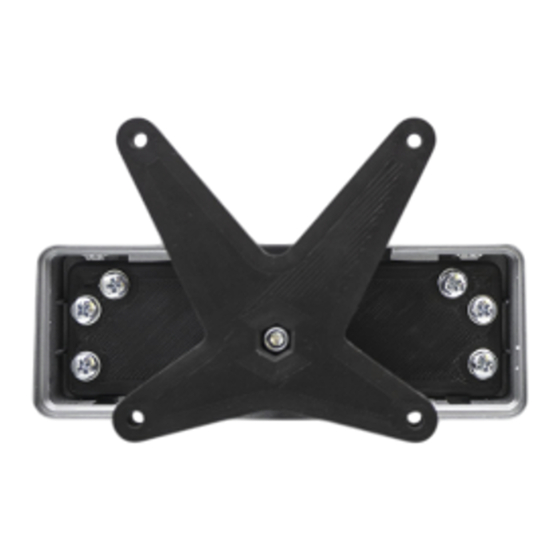

The VESA adapter allows you to conveniently mount your BENQ brand monitor to a
monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and
nuts.
If you want to mount your VESA adapter directly to the wall, use the appropriate
screws and anchors (not included).
www.3idee.eu

Advertisement

Table of Contents
loading

Related Manuals for 3idee EX3203R

Summary of Contents for 3idee EX3203R

  • Page 1 The VESA adapter is compatible with the following BenQ (benq.com) products: EX3203R, EX3501R The VESA adapter allows you to conveniently mount your BENQ brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.

  • Page 2: Important Safeguards

    Assembly instructions Important Safeguards Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.

  • Page 3: Waste Disposal

    For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area. 4. Manufacturer Information 3idee Technologies S.à r.l. 5 Um Lenster Bierg L-6125 Junglinster Luxembourg 5.

  • Page 4: Scope Of Delivery Accessories

    Assembly instructions Scope of Delivery Accessories 4x M4x14 Phillips head screw 6x M4x16 Phillips head screw 6x U washer ⌀4,3 (SP13) (SP2) (SP13)

  • Page 5: Horizontal Mounting

    Assembly instructions Horizontal / Vertical Alignment Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly. We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

  • Page 6: Assembly Instruction

    Place your BenQ monitor securely on a soft surface. Now remove the base of your BenQ monitor by loosening and removing the cover and the 6 screws on the back. The monitor should now be ready for mounting the 3idee VESA adapter. (Figure 1) Figure 1 Step 2 Now the VESA adapter must be "levered"...
  • Page 7 1 washer on each screw as shown. (Figure 4) ATTENTION: Use screw pack A! Figure 4 Step 5 Now we screw the 3idee VESA adapter to the BenQ monitor with the 6x (screws + washers) we prepared in step 4 . (Figure 5) ATTENTION: Use screw package A!
  • Page 8 Assembly instructions Step 7 For this step we recommend a 2nd person. Now lift the monitor and hold it to your monitor mount. Fasten the VESA adapter with the 4 included M4x14 screws (screw bag: SP2). It is best to fasten 2 screws diagonally first, so that the monitor cannot fall down and you can fasten the remaining screws without any effort.
