3idee hp-eo-g9 Assembly Instructions Manual

Vesa adapter
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual

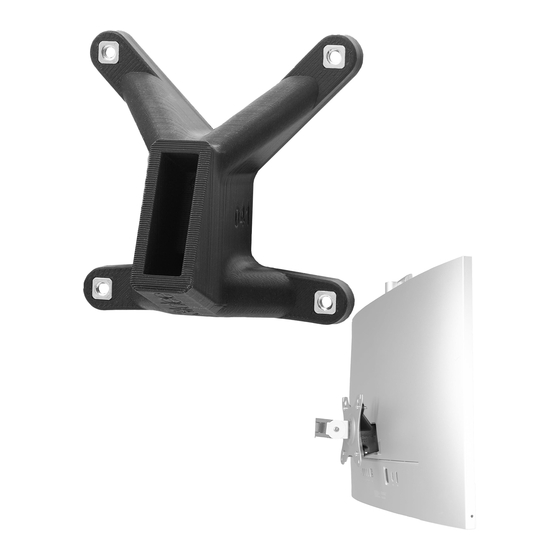

hp-eo-g9 VESA adapter
Assembly
instructions
The VESA adapter is compatible with the following monitors from
hp
(hp.com):
EliteOne 840 G9 All-in-one-PC, EliteOne 870 G9 All-in-one-PC
The VESA adapter allows you to conveniently mount your HP brand monitor to a
monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and
nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws
and dowels (not included).
www.3idee.eu

Advertisement

loading

Related Manuals for 3idee hp-eo-g9

Summary of Contents for 3idee hp-eo-g9

  • Page 1 VESA adapter Assembly instructions The VESA adapter is compatible with the following monitors from (hp.com): EliteOne 840 G9 All-in-one-PC, EliteOne 870 G9 All-in-one-PC The VESA adapter allows you to conveniently mount your HP brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.

  • Page 2: Important Safeguards

    Assembly instructions Important Safeguards Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should also always be given. Failure to follow these instructions may result in injury or damage to people and the product, for which we cannot accept any liability.

  • Page 3: Waste Disposal

    For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area. 4. Manufacturer Information 3idee Technologies S.à r.l. 5 Um Lenster Bierg L-6125 Junglinster Luxembourg 5.

  • Page 4: Scope Of Delivery Accessories

    Assembly instructions Scope of Delivery Accessories 4x M4x14 Phillips head screw 2x M4x20 Phillips head screw (SP8) (SP8)

  • Page 5: Horizontal Mounting

    Assembly instructions Horizontal / Vertical Alignment Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly. We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

  • Page 6: Assembly Instruction

    We have also published an assembly help video. Step 2 Now put the 3idee VESA adapter on the metal mount and screw it tight with the included 2 countersunk screws. (Figure 1)
  • Page 7 Assembly instructions (Figure 3) Step 5 Please make sure that all 4 screws are tight. (Figure 4) Figure 4...
