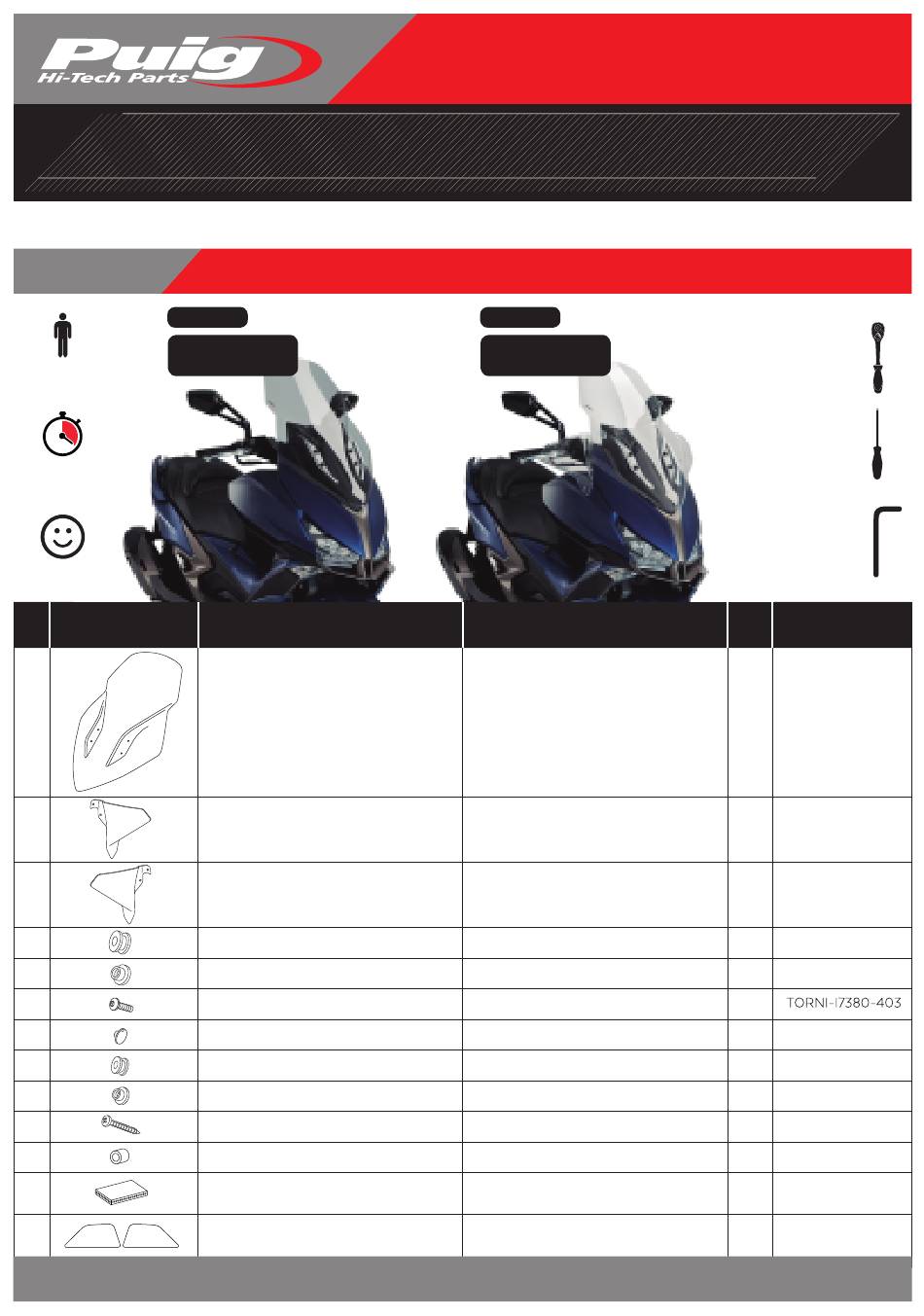

PUIG 3757 Mounting Instructions

KYMCO X-CITING 400 S '19-
M O U
RE F 3757
O P T
WINDSHIELD
1 Person HAND-DEFLECTORS
25 min
EASY
ID PIEZA/PART
1
2
3
4
5
6
7
8
9
10
11
12
13
N T I N G
V-T ECH LINE TO UR I NG W I N D S H I E L D
(W I N D S H I E L D INC LUDE S DETACHABLE HAND -DEFL ECTORS )
O I N A
WITHOUT
DESCRIPCIÓN
Cúpula
Deflector izquierdo
Deflector derecho
Silentblock Ø17,5x Ø9,5 x Ø13 x10
Casquillo con valona Ø15 xØ9 x7,5
Tornillo Allen M6x16 Ø14 ISO 7380
Tapón M6 ISO 7380
Silentblock Ø9 xØ6 x8mm
Casquillo con valona Ø12xØ6,8x7,3
Tornillo DIN7505/B Ø4 x 35
Casquillo Ø9x Ø5 x13
Velcro dual lock 25x15mm
(se suministra montada con las piezas 2/3)
Kit adhesivos
(se suministra montada con las piezas 2/3)
www.puig.tv
www.puigusa.com
I N S T R
O P T O I N B
WINDSHIELD
WITH
HAND-DEFLECTORS
DESCRIPTION
Windshield
Left hand-deflector
Right hand-deflector
Ø17,5x Ø9,5 x Ø13 x10 silentblock
Ø15 xØ9 x7,5 bush with flange
M6x16 Ø14 ISO 7380 Allen screw
M6 ISO 7380 screw cap
Ø9 xØ6 x8mm silentblock
Ø12xØ6,8x7,3 bush with flange
DIN7505/B Ø4 x 35 sc rew
Ø9x Ø5 x13 spacer
25x15mm dual lock Velcro
(supplied already mounted on items 2/3)
Stickers set
(supplied already mounted on items 2/3)
Pg. 1/3
info@puigusa.com
U C T I O N
SCREWDRIVER
QTY
1
1
1
4
4
4
4
4
4
4
4
2
1
Illustrations and layout by: www.ciandisseny.com
info@puig.tv
S
Nº 10
PHILLIPS
ALLEN
Nº 3
Nº 4
Nº 5
REF
3757F/H/WM3
3757F/H/WM3
3757F/H/WM3
AROPASACABLES--
CASQUI-1A---324
TAPON--------86
AROPASACABLES-3
CASQUI-1A---750
TORNI-D7505-869
CASQUI------713
VELCRO-25X10
ADHESI-----268
