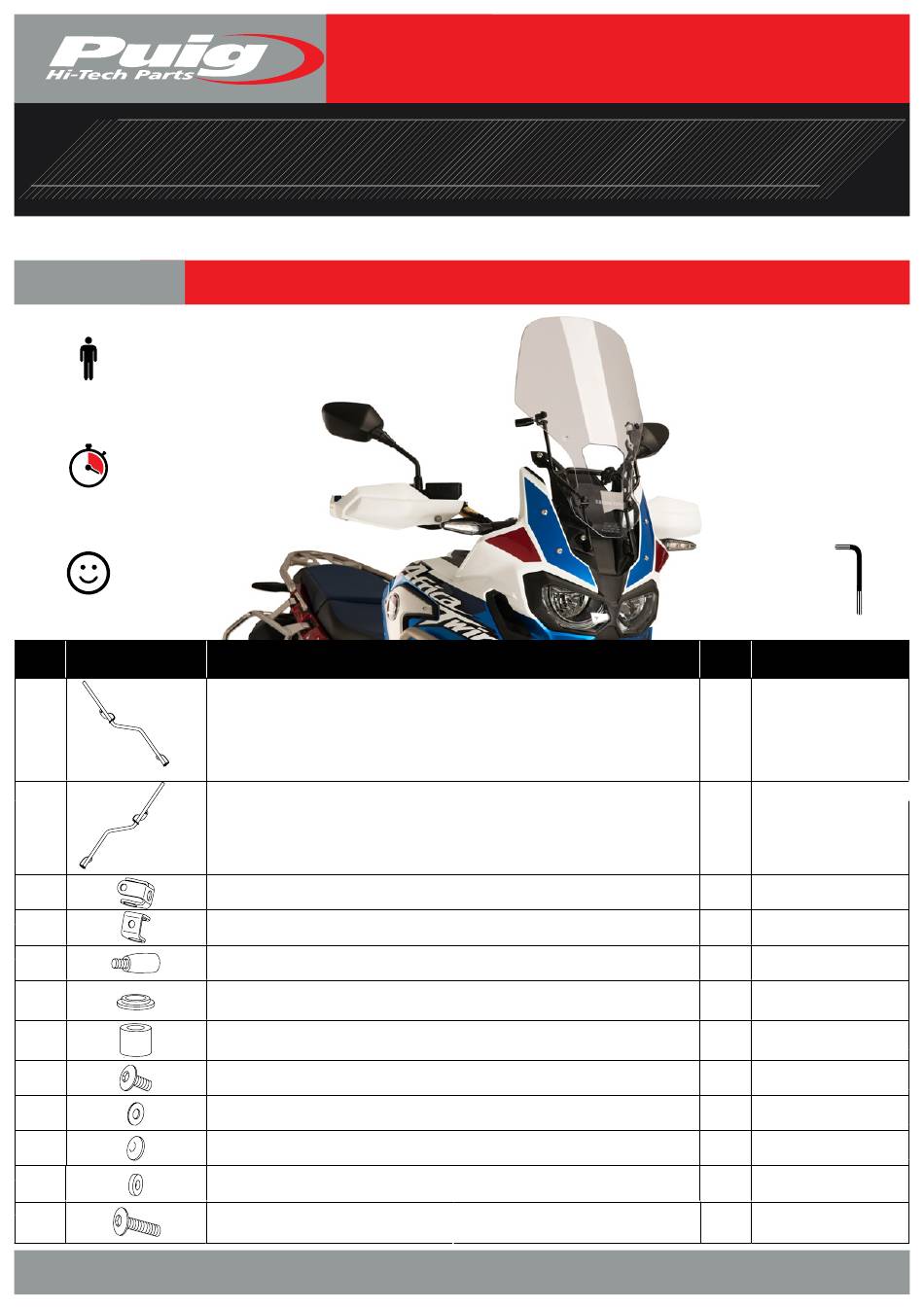

CRF1000L AFRICA TWIN / ADVENTURE SPORTS
M O U N T I N G
REF 3493
M A N U A L
1 Person
20 min
EASY
ID.
PART
1
2
3
4
5
6
7
8
9
10
11
12
HONDA
I N S T R U C T I O N S
R E G U L A T I O N
DESCRIPTION
Left guide
Right guide
Upper support
Lower support
M6X16 ISO 4753 Knob
Ø15,87 x Ø8,76 x 2,66mm bush with flange
Ø9,53 x Ø14,27 x 12,7mm nylon spacer
M5x11 Ø11 ISO 7380 allen screw
M5x1 nylon washer
M5 ISO 7380 screw cap
Ø4,5 x Ø11 x 2mm rubber washer
M5x20 Ø11 ISO 7380 allen screw
S Y S T E M
F O R
W I N D S H I E L D S
ALLEN
Nº 3
Nº 5
QTY.
REF.:
1
SOPOR-8P-6-3493
1
SOPOR-8P-6-3493
2
SOPOR-8P-6-3493
2
SOPOR-8P-6-3493
2
MANECILLA------
8
ARAND------3493
4
DISTANCIADOR---
6
TORNI-AI----520
4
ARNV0000000245
4
TAPON--------85
4
ARAND-EPDM--722
4
TORNI-I7380-730
Advertisement
Related Manuals for PUIG 3493
Summary of Contents for PUIG 3493
- Page 1 CRF1000L AFRICA TWIN / ADVENTURE SPORTS M O U N T I N G I N S T R U C T I O N S REF 3493 M A N U A L R E G U L A T I O N...
- Page 2 HONDA CRF1000L AFRICA TWIN / ADVENTURE SPORTS M O U N T I N G I N S T R U C T I O N S Original components DISASSEMBLY ASSEMBLY ASSEMBLY ASSEMBLY LOOSEN ID8 SCREW AND CHECK THE CORRECT OPERATION...
-
Page 3: Reg Ulatio N Sys Te M
HONDA CRF1000L AFRICA TWIN / ADVENTURE SPORTS M O U N T I N G I N S T R U C T I O N S ASSEMBLY EXPLOTING FOR MANUAL REG ULATIO N SYS TE M POSITION SCREEN ON LOWEST POSITION AND TIGHTEN ID8 SCREWS... - Page 4 ALLEN Nº 3 EASY Nº 5 PART DESCRIPTION QTY. REF.: Touring Screen 8905A/F/H/N/R/WM3 Left guide SOPOR-8P-6-3493 Right guide SOPOR-8P-6-3493 Upper support SOPOR-8P-6-3493 Lower support SOPOR-8P-6-3493 M6x16 ISO 4753 Knob MANECILLA------ Ø15,87 x Ø8,76 x 2,66mm bush with flange ARAND------3493 Ø9,53 x Ø14,27 x 12,7mm nylon spacer DISTANCIADOR--- M5x11 Ø11 ISO 7380 allen screw...
- Page 5 HONDA CRF1000L AFRICA TWIN / ADVENTURE SPORTS - M O U N T I N G I N S T R U C T I O N S - Original components Original screws DISASSEMBLY ASSEMBLY ASSEMBLY ASSEMBLY LOOSEN ID8 SCREW AND CHECK THE CORRECT OPERATION...
- Page 6 HONDA CRF1000L AFRICA TWIN / ADVENTURE SPORTS M O U N T I N G I N S T R U C T I O N S ASSEMBLY EXPLOTING FOR MANUAL REGULATION SYS TEM POSITION SCREEN ON LOWEST POSITION AND TIGHTEN ID8 SCREWS...
- Page 7 Right Elevator suplement support ALLEN Left Elevator suplement support Nº 5 M5x16 ISO 7380 Allen screw Easy Intermediate ØINT.4 ØEXT.14 x 4 rubber washers iffi fi fi 1 person 5 min Support Original screen Puig Racing Screen Puig Touring Screen...
-
Page 8: Mounting Instructions
- ELEVATOR SUPPORT FOR - HONDA AFRICA TWIN ‘16- / AFRICA TWIN ADV. SPORT ’18- - MOUNTING INSTRUCTIONS - Original screws NOT NECESSARY IN AFRICA TWIN ADVENTURE SPORT ’18 Original screws / Original Screen... - Page 9 - ELEVATOR SUPPORT FOR - HONDA AFRICA TWIN ‘16- / AFRICA TWIN ADV. SPORT ’18- - MOUNTING INSTRUCTIONS - Original screws Puig Racing Screen ref.: 8904 NOT included Original screws Puig Touring Screen ref.: 8905 NOT included If you’re looking for quality motorcycle windshields & fairings, visit our website.
