- Page 1 ORIGINAL INSTRUCTIONS Low-Power Generating Set RGN1200B...
- Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.
-
Page 3: Know Your Product

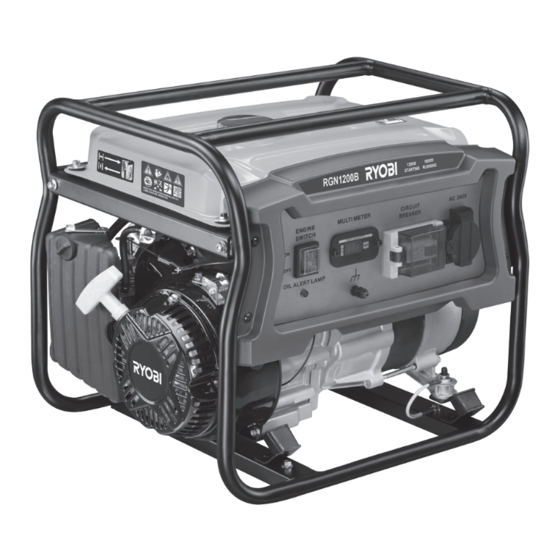

KNOW YOUR PRODUCT 1. Carburetor drain screw 14. Fuel valve (off) 2. Circuit breaker 15. To run (choke open) 3. Oil drainage plug 16. To start (choke closed) 4. Oil cap/dipstick 17. Air filter 5. Recoil starter grip 18. Spark plug 6. - Page 4 Fig 4 Fig 5 Fig 6 Fig 7 Fig 8...
- Page 5 Fig 9 Fig 10 Fig 11 Fig 12...
- Page 6 ENGINE MULTI METER AC 240V CIRCUIT SWITCH BREAKER OIL ALERT LAMP Fig 13 CONTROL PANEL LABEL See figure 13 1. Multimeter 2. Circuit breaker 3. AC receptacle 4. PE Terminal 5. Oil alert lamp 6. Engine switch (off) 7. Engine switch (on) 8.
-
Page 7: Intended Use
Original instructions | English Safety, performance, and dependability have been given Save these instructions. top priority in the design of your low-power generating set. This manual contains important instructions that should be followed during the installation and maintenance of the INTENDED USE product. -
Page 8: Specific Safety Warnings
English | Original instructions and follow instructions in the Maintenance section of tank cap when the engine is running. Covering the fuel this manual. Use of unauthorised parts or failure to tank cap during use may cause engine failure and/or follow Maintenance instructions may create a risk of damage to the product. -
Page 9: Symbols On The Product
Original instructions | English WARNING To reduce the risk of injury or damage, avoid contact with any hot Service and maintenance require extreme care and surface. service technician. For service and repair, contact an Consult with local electrician authorised service centre. When servicing, use only determine grounding original manufacturer’s replacement parts, accessories,... -
Page 10: Safety Labels
English | Original instructions Indicates a situation that may result in property damage. dipstick. The product is equipped with an oil sensor which will automatically shut off the engine if oil level falls below SAFETY LABELS a safe limit. The information below can be found on the generator. For HOT SURFACE WARNING your safety, please study and understand all of the labels before starting the generator. -
Page 11: Extension Cord Cable Size
Original instructions | English there may be a risk of explosion of petrol fumes, leaking gas or explosive dusts. 6. Electrocution can occur if generator is used in rain, snow, or near water; keep this unit dry at all times. 7. -
Page 12: Generator Capacity
English | Original instructions 5. Again, permit the generator to stabilise. ELECTRICAL 6. Repeat steps 4 and 5 for each additional load. 7. Never add more loads than the generator capacity. GENERATOR CAPACITY Take special care to consider surge loads in generator Make sure the generator can supply enough continuous capacity as previously described. -
Page 13: Operation
Original instructions | English AIR FILTER Inspect the product carefully to make sure no damage occurred during shipping. Do not discard the packing material until you have into the product during operation. carefully inspected and satisfactorily operated the CHOKE LEVER product. -
Page 14: Special Requirements
English | Original instructions Check fuel level and fill, if necessary. Refer to the NOTE: Always use unleaded gasoline with a pump octane "CHECKING/ADDING FUEL" section in this manual. rating of 86 or higher. Never use old, stale, or contaminated unleaded fuel, and do not use an oil/fuel mixture. -
Page 15: General Maintenance
Original instructions | English Put the engine switch in the ON ( I ) position. GENERAL MAINTENANCE Pull the recoil starting grip until the engine runs (a Only the parts shown on the parts list are intended to be maximum of 6 times). repaired or replaced by the customer. -
Page 16: Spark Plug Maintenance
English | Original instructions SPARK PLUG MAINTENANCE TRANSPORTING See figure 11 Turn engine switch OFF ( O ). The spark plug must be properly gapped and free of Close the fuel valve. deposits in order to ensure proper engine operation. To Make sure the engine and the exhaust of the product check: has cooled down. -
Page 17: Product Specifications
Original instructions | English PRODUCT SPECIFICATIONS Model RGN1200B AC Output AC Frequency (Hz) AC Output voltage (V) Rated AC Output (W) 1000 Rated Current (A) 4.17 Circuit Breaker (A) Power Factor Engine Single-cylinder, 4-stroke, Engine Type air-cooled, fuel Bore x Stroke (mm) -
Page 18: Troubleshooting
TROUBLESHOOTING Problem Possible cause Solution Engine will not start. Engine switch is OFF. Turn engine switch to ON. No fuel. Fill fuel tank. Oil level is low. Check engine oil level and fill, if necessary. Fuel valve is OFF. Turn fuel valve ON. Spark plug faulty, fouled, or Replace spark plug. -
Page 19: Maintenance Schedule
MAINTENANCE MAINTENANCE SCHEDULE After 1st month Every 3 months Every 6 months Every year or Before or 20 hours of or 50 hours of or 100 hours of after 300 hours each use operation operation operation of operation Check engine lubricant Change engine lubricant Check/adjust spark plug Replace spark plug... -
Page 20: Wiring Diagram
WIRING DIAGRAM... - Page 24 Imported by: Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited 2 Landing Drive, Mangere Auckland, 2022, New Zealand 099979175001-02...
