Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide

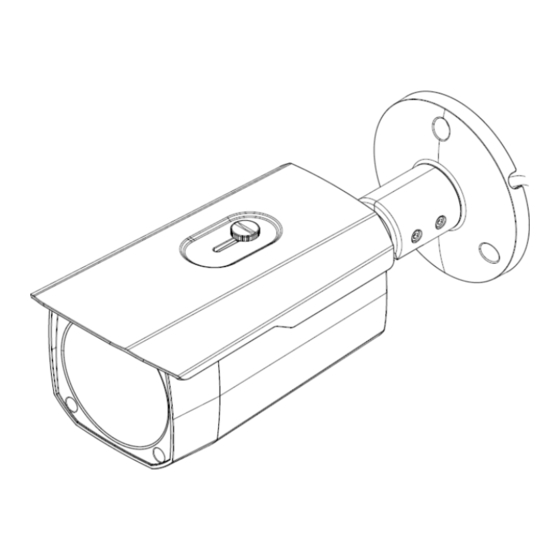

Dahua HD IR Waterproof Bullet Network Camera
Quick Start Guide
Version 1.0.0
Zhejiang Dahua Vision Technology CO., LTD
Advertisement
Table of Contents
Related Manuals for Dahua IPC-HFW4431D-AS
Summary of Contents for Dahua IPC-HFW4431D-AS
- Page 1 Dahua IPC- HFW4431D-AS o cerca il tuo prodotto tra le migliori offerte di Videosorveglianza Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide Dahua HD IR Waterproof Bullet Network Camera Quick Start Guide Version 1.0.0 Zhejiang Dahua Vision Technology CO., LTD...
- Page 2 Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide Welcome Thank you for purchasing our network camera! This quick start guide is designed to be a reference tool for your system. Please keep this start guide well for future reference.
- Page 3 Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide Please do not touch the heat dissipation component of the device directly in order to avoid scald. Please do not dismantle the device; there is no component which can be fixed by users themselves in the machine.
- Page 4 Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide FCC Information 1. FCC conditions： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference;...
-
Page 5: Table Of Contents
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide Table of Contents Framework ........................... 1 Device External Cable ....................1 Framework and Dimension ..................2 Device Installation ........................4 Install Device ......................... 4 Install Micro SD Card ....................5 Network Configuration ....................... -
Page 6: Framework
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide 1 Framework 1.1 Device External Cable You can refer to the following figure for device external cable information. See Figure 1-1 Figure 1-1 Please refer to the following sheet for detailed information about cable ports. -
Page 7: Framework And Dimension
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide Port Port Name Connector Note I/O port Alarm signal input/output Port Port Port SN Connector Note Name Name Alarm input port. It is to receive the on-off ALARM_IN1 signal from the external alarm source. - Page 8 Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide Figure 1-3 Dimension illustration 2...
-
Page 9: Device Installation
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide 2 Device Installation 2.1 Install Device Note: Please make sure the installation surface can min support the 3X weight of the camera and the bracket. Step 1 Open accessories bag, take out installation position map and stick it to designated surface where you will install the device (wall or ceiling). -
Page 10: Install Micro Sd Card
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide Figure 2-2 Step 6 Use inner hex screwdriver to loosen adjusting screw shown in Figure 2-2. Step 7 Adjust the device in all possible directions, and set its monitoring direction. - Page 11 Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide Figure 2-3 2.3 Install Waterproof Connector Figure 2-4 1. Keep the convex groove outward and install the rubber ring into the network port, keep the smaller hole of the rubber ring outward and install the fixing rubber ring into the main body of the waterproof connector.
-
Page 12: Network Configuration
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide 3 Network Configuration The IP address of all the cameras is the same when leaving factory (default IP192.168.1.108), in order to make the camera get access to the network smoothly, please plan the useable IP segment reasonably according to the actual network environment. - Page 13 Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide Figure 3-1 Step 3 Modify the camera IP address on the “Net” interface, click “Save” to finish modification. See Figure 3-2 for more details. Figure 3-2...
-
Page 14: Login Web Interface
Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide 3.2 Login WEB Interface Note: Different devices may have different WEB interfaces, the figures below are just for reference, please refer to the document <<WEB Operation Manual>> in the disk and the actual interface for more details Step 1 Open IE and input the modified camera IP address in the address bar. - Page 15 Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide Figure 3-4 Note: This quick start guide is for reference only. Slight difference may be found in user interface. All the designs and software here are subject to change without prior written notice.
