CONGRATULATIONS ON YOUR PURCHASE
Thank you for selecting the CyberPower PBJ5UC Surge Protector.
This manual explains the features and operation of the PBJ5UC.
Please take a few moments to read this manual.

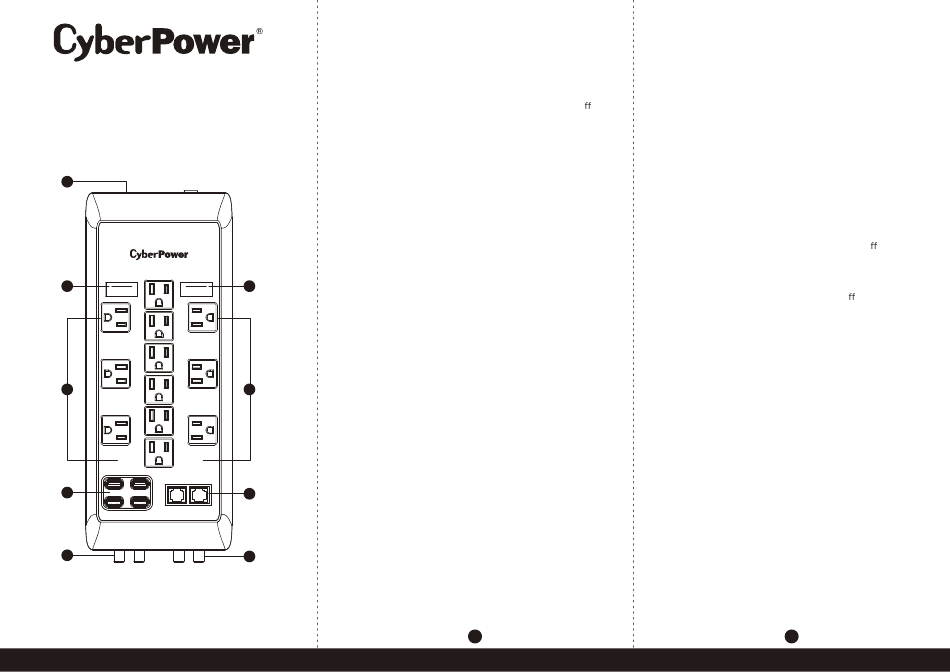

FEATURES
1. ON/OFF Reset Control Switch and Circuit Breaker
Controls power to all outlets. The switch is also a 15 A breaker.
When an overload occurs, it will automatically switch o .
To resume operation, ensure the overload condition is
removed and reset the surge protector by switching the unit ON.
2. Surge Protected Indicator
Illuminated when the surge protection feature is
working properly.
3. Ground Indicator LED
Illuminated when the ground protection feature is
working properly.
4. Standard Grounded Outlets (6) and Transformer-spaced
Grounded Outlets (6)
5. USB Charging Ports* (4)
Connect and charge up to four (4) USB devices using the surge
protected USB charging ports.
*USB outlets cannot be used as a USB hub. This device does
not transfer data.
6. Surge Protected Network Line Connections
3
Additional peace of mind for cable, networking and
phone/fax connections.
7. Surge Protected Cable and Satellite Connections
Protect coaxial lines from surges and spikes.
8. Firestop Design Advanced MOVs with Built-in Fuses
Minimizes fire hazards from major power surges.
SPECIFICATIONS
• Model Number: PBJ5UC
4
• Outlets: Standard Grounded Outlets (6) and
Transformer-spaced Grounded Outlets (6)
• Power Cord Length: 5 ft
• Plug Type: Low-Profile Right-Angle Plug
• Surge Protection: 3,480 Joules
• Electrical Rating: 125 V/15 A/1875 W
• USB Charging Rating: 5 V/4.8A total
• UL Clamping Voltage: UL 1449 4th/500 V (H-N, H-G, N-G)
6
• Maximum Peak Current: 105,000 A
• 3 AC Lines Protected: H-N: 75,000 A, H-G: 15,000 A,
N-G: 15,000 A (The maximum surge possible on household
wiring is 6,000 volts)
• Response Time: Less than 1 nanosecond
• Attenuation: Up to 43 dB
7
• Network Protection: RJ45 1 in/1 out
• Coaxial Communications Protection: Cable (Coaxial) 2 pairs
• EMI/RFI Filtration: 150 kHz to 100 MHz
• Circuit Breaker: Resettable 15 Amp
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK -
Use only in dry locations and only indoors.
DO NOT plug into another relocatable power tap. DO NOT "daisy
chain" surge protectors. DO NOT use with any aquarium
equipment. DO NOT use if properly grounded outlets are not
available. DO NOT install this device if there is less than 10 meters
(30 feet) or more of wire between the electrical outlet and
electrical service panel. DO NOT use for medical or life support
equipment. This device features an internal protection that will
disconnect the surge protective component at the end of its
useful life, but it will maintain unprotected power to the load. If
this situation is undesirable for the application, follow the
manufacturer's instructions for replacing this device.
TROUBLESHOOTING
▪ If the ON/OFF is switched OFF, the 15 Amp circuit breaker may
have tripped. Examine your connected equipment and remove
the device that is overloading the circuit. Then, turn the
ON/OFF switch back to RESET.
▪ If the grounded indicator does not light when you plug in the
surge protector, move the surge protector to a di erent
grounded three-prong AC outlet. If it still does not light, return
the product to the retailer for assistance. If the surge protector
appears to be working properly, your outlets may not be
properly grounded and need to be repaired by a professional
electrician. If the grounded indicator turns o after a period
of use, the surge protection has been depleted. Replace your
surge protector.
▪ If the protected indicator does not light, the surge protector's
AC lines are no longer protected from surge. The surge
protector may have received a power surge or spike beyond
its specified limits that overloaded the protection circuitry and
rendered it inactive. The surge protector has protected your
connected equipment as designed, but it will not protect
against future surges, and spikes. It should be replaced.
TECHNICAL SUPPORT
Please contact our Tech Support Department
with installation, troubleshooting, or general
product questions.
• Phone: 1-877-297-6937
• Email: tech@cpsww.com
• Hours of Operation:
Monday – Friday 7:00am – 6:00pm CST
