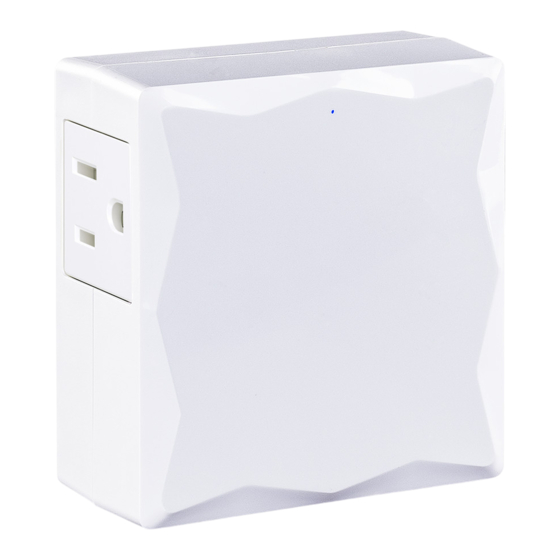

CyberPower P2WU User Manual

2-Outlet Surge Protector 2-Outlet Surge Protector
P2WU P2WU
Front
2
Side
Top
USER MANUAL
Copyright © 2018 Cyber Power Systems (USA), Inc. All rights reserved.
CONGRATULATIONS ON YOUR PURCHASE
Thank you for selecting the CyberPower P2WU Surge
Protector. This manual explains the features and operation
of the P2WU. Please take a few moments to read
this manual.
FEATURES
1. Surge Protected Indicator
Illuminated when the surge protection feature is
working properly.
2. Two Side-Facing Standard Outlets
1
3. USB Charging Ports*
Connect and charge up to three (3) USB devices using
the surge protected USB charging ports.
*USB outlets cannot be used as a USB hub. This device
does not transfer data.
SPECIFICATIONS
• Model Number: P2WU
• Outlets: 2 standard outlets
• USB Charging Rating: 5 V/4.2 A total
• Surge Protection: 500 Joules
• Electrical Rating: 125 V/15 A/1875 W
• UL Clamping Voltage: UL 1449 4th/800 V (L-N)
• Maximum Peak Current: 15,000 A
• AC Lines Protected: L-N: 15,000 A
• Response Time: Less than 1 nanosecond
2
3
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK - Use only in
dry locations and only indoors. DO NOT plug into another
relocatable power tap. DO NOT "daisy chain" surge
protectors. DO NOT use with any aquarium equipment.
DO NOT use if properly grounded outlets are not
available. DO NOT install this device if there is less than 10
meters (30 feet) or more of wire between the electrical
outlet and electrical service panel. DO NOT use for
medical or life support equipment. This device features an
internal protection that will disconnect the surge protective
component at the end of its useful life, but it will maintain
unprotected power to the load.
TROUBLESHOOTING
▪ If the protected indicator does not light, the surge
protector's AC lines are no longer protected from surge.
The surge protector may have received a power surge or
spike beyond its specified limits that overloaded the
protection circuitry and rendered it inactive. The surge
protector has protected your connected equipment as
designed, but it will not protect against future surges,
and spikes. It should be replaced.
TECHNICAL SUPPORT
Please contact our Tech Support Department with
installation, troubleshooting, or general product questions.
• Phone: 1-877-297-6937
• Email: tech@cpsww.com
• Hours of Operation:
Monday – Friday 7:00am – 6:00pm CST
