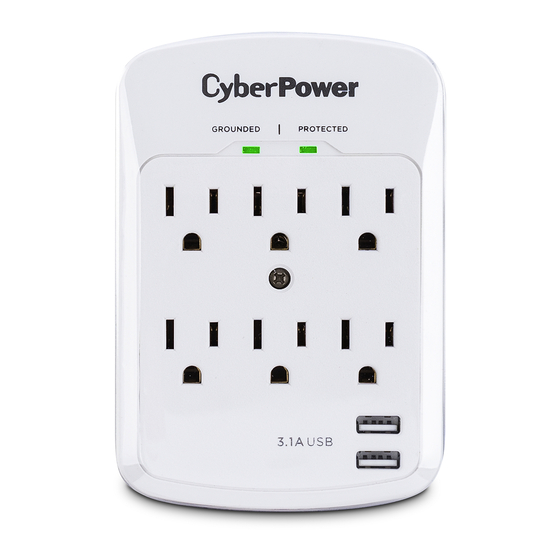

CyberPower P600WUHD User Manual

6-Outlet Wall Tap
Surge Protector with USB
P600WUHD
USER MANUAL
CONGRATULATIONS ON YOUR PURCHASE
Thank you for selecting the CyberPower P600WUHD
Surge Protector. The information contained in this
document explains the features and operation of the
P600WUHD. Please take a few moments to read this
manual.
Copyright © 2020 Cyber Power Systems, Inc. All rights reserved.
FEATURES
1. Standard Spaced Outlets (6)
2. USB Charging Ports (2)
3. USB Output: 5V/3.4A (shared)
SPECIFICATIONS
• Model Number: P600WUHD
• Outlets: 6 Standard Outlets
• USB Ports: 2 USB Type-A
• USB Output: 5V/3.4A (shared)
• Surge Protection: 500 Joules
• Electrical Rating: 125V/15A/1875W
• UL Clamping Voltage: UL 1449 3rd/800V (H-N),
• Maximum Peak Current: 15,000A
• Attenuation: Up to 32dB
• EMI/RFI Filtration: 150 kHz to 100 MHz
• Connected Equipment Guarantee: $15,000
1
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK - Use only in
dry locations and only indoors. DO NOT plug into another
relocatable power tap. DO NOT "daisy chain" surge
protectors. DO NOT use with any aquarium equipment.
DO NOT use if properly grounded outlets are not
available. DO NOT install this device if there is not at least
10 meters (30 feet) or more of wire between the electrical
outlet and electrical service panel. This device features an
internal protection that will disconnect the surge
protective component at the end of its useful life, but will
maintain power to the load – now unprotected.
TECHNICAL SUPPORT
Please contact our Tech Support department with
installation, troubleshooting, or general product questions.
• Phone: 1-877-297-6937
• Visit: CyberPowerSystems.com/support
• Hours of Operation:
Monday – Friday, 7:00am – 6:00pm CST
2
