Commax DP2SDR2GN User Manual page 3

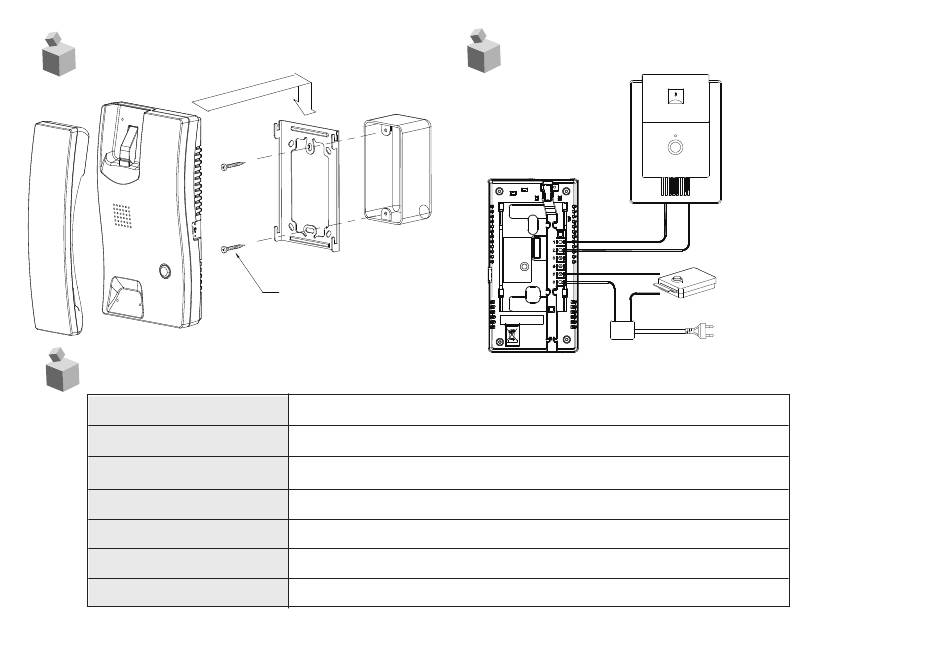

4. Installation
6. Specification
Model
Power Source
Consumption Power
Distance
Wiring
Dimension(mm)
Weight(g)
SCREW T4X50 (2EA)
DP-2S
100/110/120/220/230/240V~, 50/60Hz
4.5W(MAX)
100m( Ø0.65mm), 150m( Ø0.8mm)
Call : 2-wire, Door Release : 2-wire(Ø 1.6mm Copper wire)
108(W)°X210(H)°X61.4(D)mm
640g
5. W iring
(1)
(2)
3
1. Non polarity wiring with Sub
Unit(1) and Master Unit (2).
2. Door Release(3) should
be provided with
additional power source.
(3)
