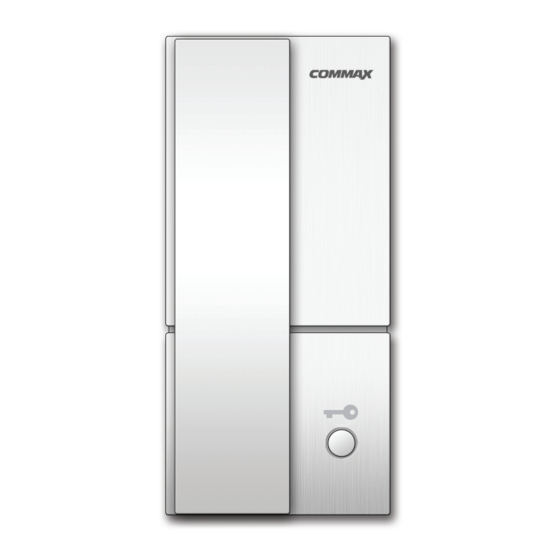

Commax DP-2LD User Manual

Door phone

Download this manual

User Manual

DOOR PHONE DP-2LD

• Thank you for purchasing COMMAX products.

• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Need help?

Do you have a question about the DP-2LD and is the answer not in the manual?

Page 1 User Manual DOOR PHONE DP-2LD • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
Page 2 1. Overview 2. Operation Handset 1. When the call button(on the door station) is pressed, the chime sounds. Door release button 2. Adjust the volume switch(on the room station) to control the call sound. 3. Pick up the handset(on the room station) to talk. 4.
Page 3 4. Wiring 5. Specifications Battery : 6V Operating voltage Adapter : 9V or 12V Door Phone 2-Wire(Nonpolar) Wiring Door Release 2-Wire(Nonpolar) Standby current 0.1mA Maximum current 50mA 100m ( 0.65mm), 150m( 0.8mm) Effective distance Ø Ø Dimensions 98(W) x 208(D) x 65(H)mm...
Page 4 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2016.04.105...
