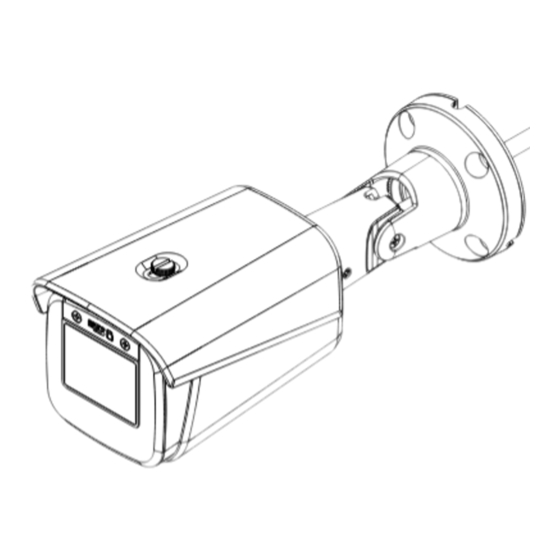

- Page 1 Network Camera Quick Guide DC-T4238HRA DC-T4248HRA Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. -
Page 3: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. - Page 4 RJ45 connector Safety Wire Screw back cover Please download software (IDIS Discovery, IDIS Center, IDIS Solution Suite Compact) and product manual from this link : -https://www.idisglobal.com - Search IDIS Discovery, IDIS Center, IDIS Solution Suite Compact.
-
Page 5: Camera Installation
Camera Installation Make sure that the cover is joined properly when screwing it; otherwise, the IP67 level is not guaranteed. Inserting a SD Memory Card Waterproof Cable Installation Loosen the screws counterclockwise and remove the cover. RJ45 waterproof rubber ring RJ45 modular jack RJ45 waterproof rubber ring RJ45 modular jack... -
Page 6: Installation
Installation • Check the wall or ceiling to see if it needs to be reinforced. The camera may fall off if the wall or ceiling is not strong enough to support its weight. • Install the camera in a shaded area. If the camera is installed in direct sunlight, it may be affected adversely. -
Page 7: Angle Adjustment
Angle Adjustment Dimensions 277.6mm 147.5mm 115.9mm Screw B Screw A Vertical (Tilt) Rotation Horizontal (Pan) Rotatio Lens Rotation Network Camera... -
Page 8: Specifications
Specifications Out-door Ready IP67 Operating Temperature -40°C ~ 60°C (-40˚F ~140˚F) Boot Up Temperature -20°C ~ +60˚C (-4°F ~ +140˚F) Operating Humidity 0% ~ 90% Power Source , PoE(IEEE 802.3af, Class 3) Power Consumption , 1.1A, 13.2W PoE, IEEE 802.3af(Class 3), 8.3W Approval FCC, CE, IK10 External Dimensions (W x D x H) - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
