Page 1: Table Of Contents
PAN 642 IX/H PAS 642 /H(WH) PAS 642 /H(BK) English Operating Instructions Contents Operating Instructions,1 Warnings,2 Description of the appliance,3 Installation,4 Start-up and use,7 Precautions and tips,7 Maintenance and care,8 Troubleshooting,8 Product Guarantee and Repair Information,9... - Page 2 Warnings WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been...

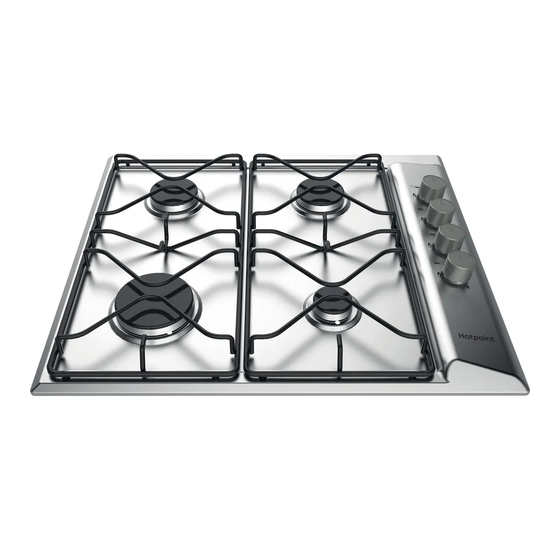

- Page 3 Description of the appliance Overall view Support Grid for COOKWARE GAS BURNERS Control Knobs for GAS BURNERS Ignition for GAS BURNERS SAFETY DEVICES • GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with. •...
- Page 4 Installation with the bottom part of the hob, must be positioned at a maximum distance of 150 mm below the upper surface of the work surface but, in no case less than 20 mm from the bottom of the hob. In the ! Before operating your new appliance please read this instruction booklet case that you intend to install an oven beneath the hob, make sure carefully.
- Page 5 Before connecting to the power supply, make sure that: 1. Remove the hob grids and slide the burners off their seats. • the appliance is earthed and the plug is compliant with the law. 2. Unscrew the nozzles using a socket spanner of the appropriate size, and •...
- Page 6 Burner and nozzle specifications Table 1 CATEGORY II2H3+ TYPE OF GAS TYPE OF NOZZLE RATED RATED REDUCED GAS PRESSURE USED BURNER THERMAL CONSUMPTION HEAT mbar FLOW RATE CAPACITY min. rat. max. Rapid 115Y 3.00 286 l/h 0.75 NATURAL GAS (Methane) Semi-Rapid 1.65 157 l/h...
-
Page 7: Start-Up And Use,7
Start-up and use Precautions and tips ! The position of the corresponding gas burner is shown on every knob. ! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety Gas burners reasons and must be read carefully. -
Page 8: Maintenance And Care,8
Troubleshooting concerning the correct disposal of their old appliance. Respecting and conserving the environment It may happen that the appliance does not function properly or at all. Before • Cook your food in closed pots or pans with well-fitting lids and use as little calling the service centre for assistance, check if anything can be done. -
Page 9: Product Guarantee And Repair Information,9
12 Months Parts and Labour Guarantee As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use quality, recycled components to keep down Your appliance has benefit of our manufacturer’s guarantee, which covers customer costs and minimise material wastage. - Page 12 195141973.03 10/2016 - XEROX FABRIANO Indesit Company S.p.A. Viale Aristide Merloni,47 60044 Fabriano (AN) www.hotpoint.co.uk...
