2 Hardware
2.1 Hardware Overview

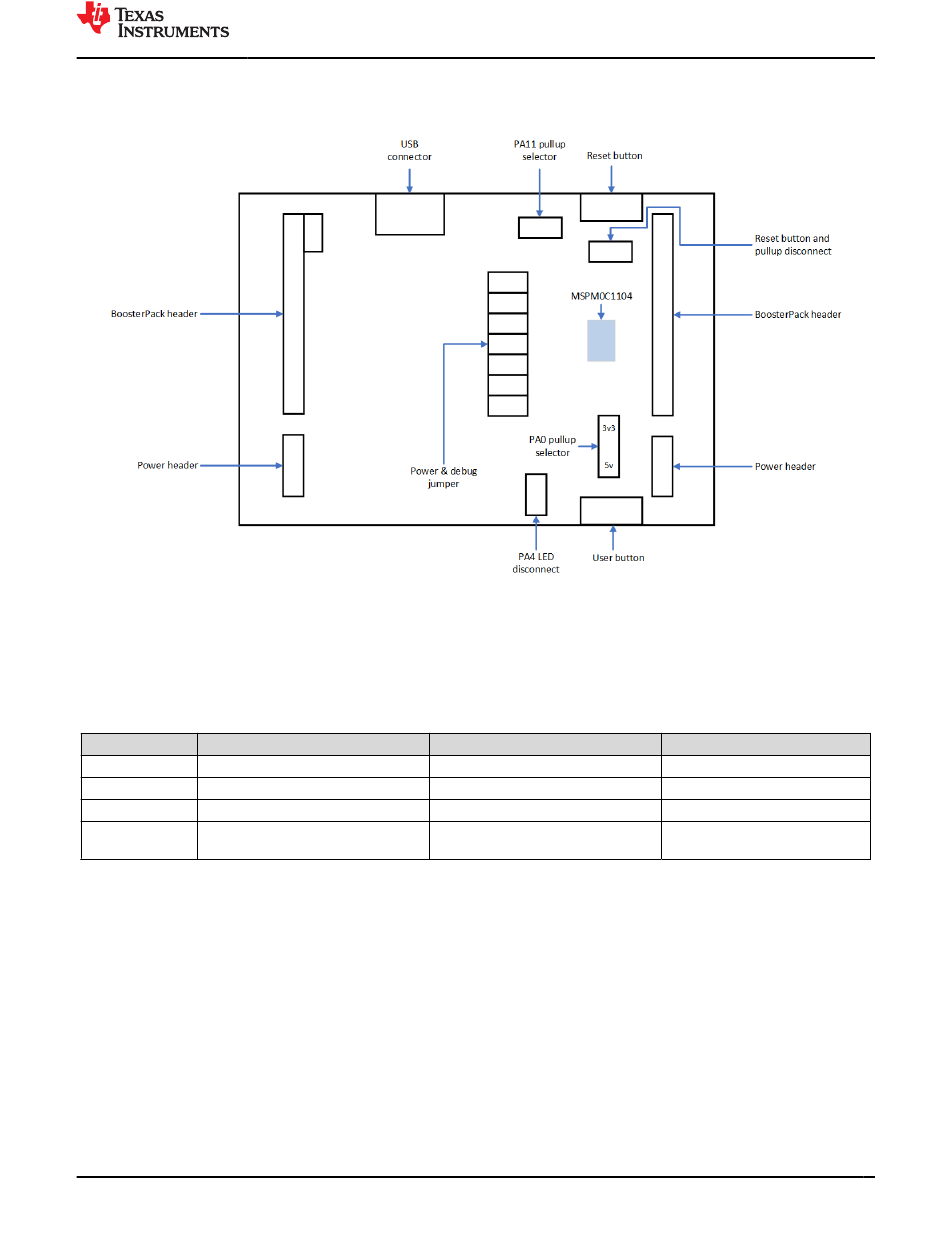

Figure 2-1. Diagram of LP-MSPM0C1104 Jumpers and Connectors
LP-MSPM0C1104 has many hardware features, which allow the user full access to the MSPM0C1104 pins while
still providing onboard connectivity for easy use. Shunt connections provide a way for the user to easily change
the LaunchPad configuration. The location of these shunts is shown in
is described in Table 2-1. The default configuration is to have all shunts populated.
Jumper Description
J6 Pullup selection for PA0 (open drain)
J7 PA4 LED connection
J8 Pullup selection for PA11
Reset button and pullup circuitry
J9
connection
SLAU908 – OCTOBER 2023
Submit Document Feedback
Table 2-1. Jumper Information
Default Setting
Installed between center tap and 3.3V
Installed
Installed
Installed
Copyright © 2023 Texas Instruments Incorporated
Figure 2-1. The connection of each shunt
Connected Signal
2.2k pullup resistor to 3.3V or 5 V
LED1 anode (+)
2.2k pullup resistor to 3.3V
See Section 4.1
LP-MSPM0C1104 Evaluation Module
