This user's guide describes the module used to evaluate characteristics, operation, and use of the
LP8863-Q1 automotive LED backlight driver. This document includes a schematic diagram, PCB layout,
and bill of materials (BOM).
...................................................................................................................
1
..........................................................................................................................
2
2.1
2.2
2.3
3
4
5
6
7
8
9
10
10.1
10.2
10.3
10.4
10.5
10.6
11
Trademarks
Windows is a registered trademark of Microsoft Corporation.
All other trademarks are the property of their respective owners.
SNVU558 - February 2017
Submit Documentation Feedback
The LP8863EVM Evaluation Module
.................................................................................................
.................................................................................................
................................................................................................
..................................................................................
..............................................................................................
....................................................................................
.............................................................................................
..................................................................................................
....................................................................................................
........................................................................................
..............................................................................................................
................................................................................
.................................................................................
..................................................................................
.........................................................................................
............................................................................................................
Copyright © 2017, Texas Instruments Incorporated
Contents
...................................................................
.................................................
The LP8863EVM Evaluation Module
User's Guide
SNVU558 - February 2017
2
3
4
6
7
10
11
16
17
18
19
22
24
24
24
24
24
25
25
25
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments LP8863EVM
Summary of Contents for Texas Instruments LP8863EVM
-
Page 1: Table Of Contents
......................LED Load Board Trademarks Windows is a registered trademark of Microsoft Corporation. All other trademarks are the property of their respective owners. SNVU558 – February 2017 The LP8863EVM Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 2: Introduction

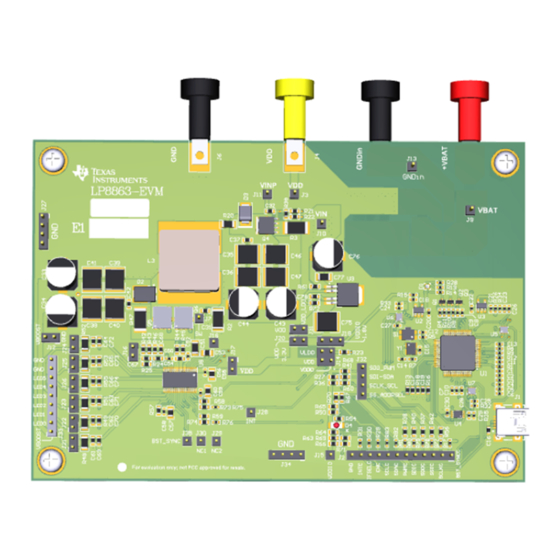

The EVM contains one LP8863-Q1 LED driver with boost circuit and a Tiva Launchpad evaluation circuit to provide control signals for LED driver. Table 1. LED DRIVER PACKAGE LP8863-Q1 HTSSOP Figure 1. LP8863-Q1 Evaluation Board (Top View) The LP8863EVM Evaluation Module SNVU558 – February 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 3: Setup
Figure 2. LP8863-Q1 Evaluation Board (Bottom View) Setup This section describes the jumpers and connectors on the EVM as well as how to properly connect and setup to use the LP8863EVM. Default resistor values and jumper positions are set to: •... -
Page 4: Input/Output Connector/Header Descriptions
J8 – GND— This banana socket is the power input (GND) terminal for the boost converter. The terminal provides a power ground (GND) connection to allow the user to attach the EVM to a power supply. The LP8863EVM Evaluation Module SNVU558 – February 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 5 J33 – Connector— This connector is to connect LED load board to EVM. J34 – GND— These headers are probing points of GND. SNVU558 – February 2017 The LP8863EVM Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
-
Page 6: Lp8863Evm Setup
EVM connector. The I C-compatible interface program provides all of the controls that the LP8863-Q1 device requires. Figure 3. LP8863EVM With LED Load Board Connected The LP8863EVM Evaluation Module SNVU558 – February 2017 Submit Documentation Feedback... -
Page 7: Installation Guide For Gui Program (Windows 7-Compatible)
• Click “Next” button on this setup screen. Figure 4. LP8863_EVM_GUI Setup • Check ”I accept the agreement” and press ”Next” button again. SNVU558 – February 2017 The LP8863EVM Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 8 • Choose the folder name of GUI to be installed, then press ”Next” button or simply press ”Next” button. Figure 6. Installation Directory The LP8863EVM Evaluation Module SNVU558 – February 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
- Page 9 Figure 7. Completing the LP8863_EVM_GUI Setup Wizard • Initial window of GUI. Prepare hardware connection after this window, as described in the following sections. Figure 8. LP8863_EVM_GUI Home Page SNVU558 – February 2017 The LP8863EVM Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
-
Page 10: Quick Start-Up Procedure
On PWM input control, check ”Enable” box of PWM input, select frequency and duty from drop-down boxes, and press ”Update” button: LED turns on at adjusted brightness level by PWM input. The LP8863EVM Evaluation Module SNVU558 – February 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 11: Additional Control Options
• LED driver headroom voltage can be controlled by led_driver_headroom. Use drop-down box to select desired headroom voltage. SNVU558 – February 2017 The LP8863EVM Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 12 Control windows below can be used for independent dimming where each LED string is controlled independently. See the LP8863-Q1 data sheet for independent dimming control. The LP8863EVM Evaluation Module SNVU558 – February 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
- Page 13 Firmware version of the Tiva Launchpad is shown here and the latest version is 1.0.6. • Individually programmed register values can be saved or loaded by file menu on top of the GUI. SNVU558 – February 2017 The LP8863EVM Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
- Page 14 • Register tab can be selected by pressing icon on left side of GUI. • Initially, all register values are hidden as below. The LP8863EVM Evaluation Module SNVU558 – February 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
- Page 15 “Read” button is used to read only selected register on “Register name” column to reduce read time. • Each register bit can be changed by double click each bit cell. SNVU558 – February 2017 The LP8863EVM Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
-
Page 16: Instructions For Standalone Evaluation
• Field View shows register bit name, type, and values: Instructions for Standalone Evaluation The LP8863EVM can be used for standalone evaluation (without evaluation software and PC connection). These are minimum requirements to use LP8863EVM as a standalone mode: •... -
Page 17: Lp8863Evm Board Stackup
LP8863EVM Board Stackup www.ti.com The LP8863EVM must be modified to support standalone mode from its default settings described as follows: 1. Remove jumper on J19. 2. Connect pin 3 and 4 of J14 to connect V output from LP8863-Q1 to VDDIO input. -
Page 18: Lp8863Evm Component Placement
LP8863EVM Component Placement www.ti.com LP8863EVM Component Placement Figure 11. LP8863EVM Component Placement (Top Layer) Figure 12. LP8863EVM Component Placement (Bottom Layer) The LP8863EVM Evaluation Module SNVU558 – February 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 19: Lp8863Evm Component List
Standard Banana Jack, Insulated, Red 6091 6091 J6, J8 Standard Banana Jack, Insulated, Black 6092 6092 Header, 100mil, 1x1, Gold, TH Samtec_HTSW-101- HTSW-101-09-G-S 09-x-S SNVU558 – February 2017 The LP8863EVM Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 20 R21, R22, R23, R37, RES, 0 ohm, 5%, 0.1W, 0603 MCR03EZPJ000 R38, R40, R41, R44, R45, R56, R60, R61, R62, R67, R73, R74 The LP8863EVM Evaluation Module SNVU558 – February 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
- Page 21 Output, 5.5 to 42 V Input, 5-pin PFM (KVU), -40 to 125 degC, Green (RoHS & no Sb/Br) Crystal, 16MHz, SMD TXC_7V 7V-16.000MAAE-T SNVU558 – February 2017 The LP8863EVM Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
-
Page 22: Lp8863Evm Schematics
PWMC1 PWMC SDIC1 SDIC TCA9406DCUR 100k 0.1uF 0.1uF TXB0304RUTR TXB0304RUTR TXB0304RUTR Copyright © 2017, Texas Instruments Incorporated Figure 13. LP8863EVM Schematic(LED driver circuit) The LP8863EVM Evaluation Module SNVU558 – February 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 23 0603 TSW-109-07-G-S 0603 0603 0603 Need wide trace for VBOOST Copyright © 2017, Texas Instruments Incorporated Figure 14. LP8863EVM Schematic (Tiva Launchpad circuit) SNVU558 – February 2017 The LP8863EVM Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
-
Page 24: Using The Lp8863Evm
3. The default PWM output frequency setting is 9.8 kHz. Table 3. R_FSET (kΩ) BOOST SW FREQUENCY (kHz) 3.92 4.75 5.76 7.87 1221 2441 17.8 4883 42.2 9766 19531 The LP8863EVM Evaluation Module SNVU558 – February 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 25: Setting The Led String Current
NOTE: The LED board is not included with the EVM -- contact your local TI sales representative if board is needed. Figure 15. LED Load Board (Top View) SNVU558 – February 2017 The LP8863EVM Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 26 LED Load Board www.ti.com Figure 16. LED Load Board (Schematic Diagram) The LP8863EVM Evaluation Module SNVU558 – February 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
- Page 27 J130 Header, TH, 100mil, 7x1, Gold plated, Samtec TSW-107-07-G-S 230 mil above insulator D1…D120 Cool White SMD LED Xlamp mL-B Cree MLBAWT-A1-0000- 000W51 SNVU558 – February 2017 The LP8863EVM Evaluation Module Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
