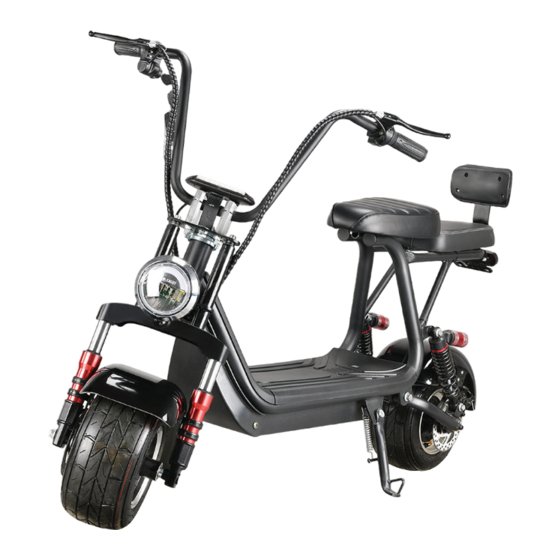

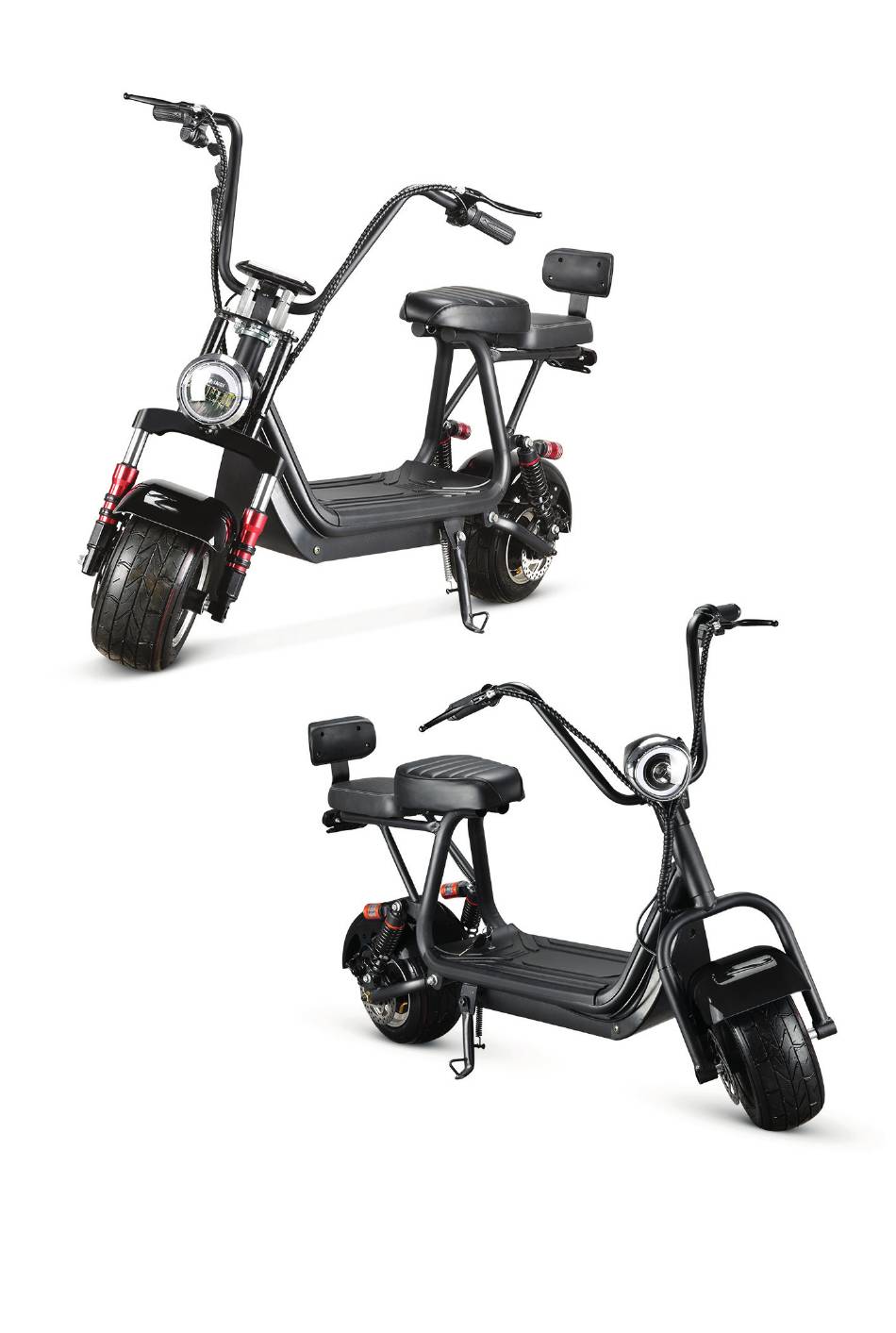

- Page 1 PRODUCT MANUAL MODEL: MINI Please, Read This Manual Carefully Before Riding the Vehicle...
- Page 2 Chapter 1 The Product Introduction This scooter has 3D design, beautiful appearance, unique style and leisure structure, which let you fall in love at first sight. Main characteristics are as follows: 1. Lithium battery: Products approved by UL and CE certification and registrations of the safety inspection, so it’s safe and reliable;...
- Page 3 Chapter 2 Parameters Horn Shock Absorber LED Front Light Disk Brake LCS Display Motor Hub Seat Battery Handle Shock Absorber...
- Page 4 Front Frame Shock Absorber LED Head Light Disk Brake Handle Motor Hub Seat Battery...
- Page 5 Speed Mode Millage Speed Battery Indicator Battery Indicator Ignition Key Speed...
- Page 6 Brake Handle Speed Mode Head Light Switch Horn Brake Handle Ingnition Key Accelerator...
- Page 7 Removable Battery Back Stand Plate Place Rear Light...
-
Page 8: Main Technical Parameters
Chapter 3 Main Technical Parameters I Main technical parameters of the scooter 1. Product Size: 1380 * 870mm 2. High: 870mm 3. Weight: 39kgs 4. Tire specifications: 22.5/6 inch 5. Maximum load: 200 kg 6. Top speed: ≤20 km/h 7. Range: 40 ~ 60 km 8. - Page 9 Chapter 4 Methods of use and moments which needed attention I Precautions for safe driving 1. Please check the traffic rules and pay attention for safety and speed control, please ride with safe speed (pay attention to the local accepted speed). 2.Before riding, get familiar with the contents of this manual first, and then find a empty field for practice, be sure with controlling of the vehicle riding essentials, get familiar with the structure and properties of the local regulations, this is the foundation...
- Page 10 2. After the vehicle stopped, lock a right- handle and pull off the power supply, then use locks to lock. 3. The power indicator method of use Turning on the power supply voltage indicator, full electric LOW \ HALF \ HIGH — 3 Led- lights, HIGH lights that electricity used up 75% of the rated capacity, HALF lights charge 25% of the rated capacity, LOW lights flashing indicates that power is less than 10%;...
- Page 11 3. Hydraulic disc brake system has strong power, so you need to practice in a safe place, avoid energetically knead dead brake, cause the wheel lock will be out of control and injured. 7. Using of the charger (1) Method of use 1.
- Page 12 6. While charging, please put the charger and the whole vehicle stable, dry, no inflammable, explosive, and out of the reach of children. 7. Attending charge shall not be short circuit. (2) The discharge (use) 1. Can only be used in the electric vehicle batteries, shall not be used for other purposes, otherwise no warranty.
- Page 13 1. On a regular basis or daily check item 1. Note on the vehicle in a safe location. 2. Abnormal position the day before, to see whether affect operation. 3. Brake braking effect: the brake handle modest fashion is downy, clearance, whether can normal braking.
-
Page 14: Quality Assurance And After- Sales Service
Chapter 5 Electrical Principle Chapter 6 Quality assurance and after- sales service According to the consumers’ rights and interests of the People’s Republic of China protects a law “the legal provision, with reference to the relevant document issued by state bureau of technical supervision in order to effectively protect the legitimate rights and interests of consumers, improve product quality civil liability system, also facilitate travel 3 packets (repair, replacement or return) obligations and responsibilities, on the strength of the warranty card to sell car units designated by the maintenance... - Page 15 certificate, identified through after- sales service of the company headquarters, can exchange models of products for consumers, changing the same products, in accordance with the provisions, charging depreciation cost (2.7%), the vehicle every day, for the battery will not be used by the exchange. 2.Appraisal standard warranty 3.
-
Page 16: Maintenance Record
5. No warranty card or CARDS of vehicles; 6. Wearing parts, consumer goods will not be “3 packets”; 7. Has been a failure, but users continue to use the secondary fault; 8. No certificate of vehicles; 9. To change the invoice date and the car parts coding. 4.
