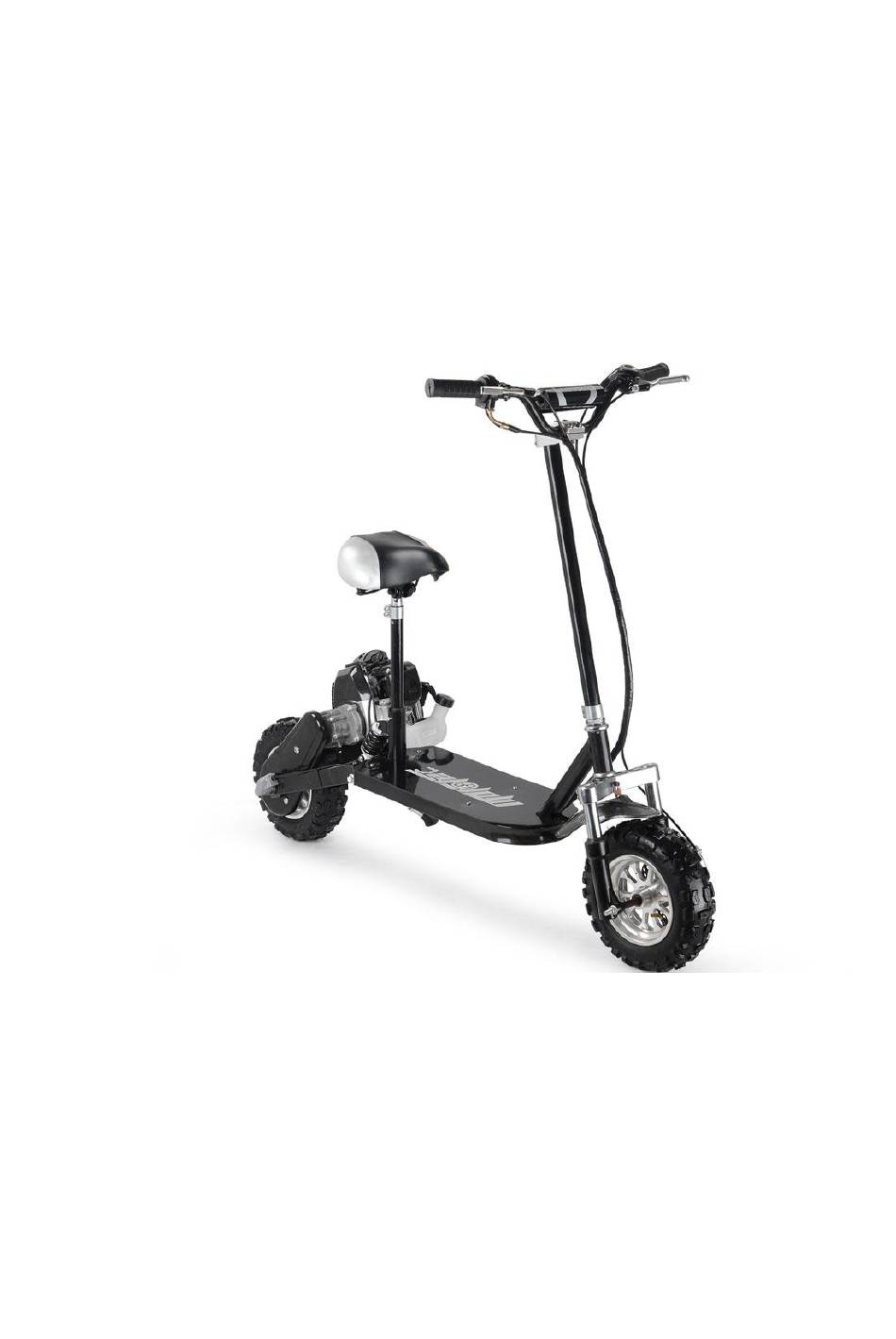

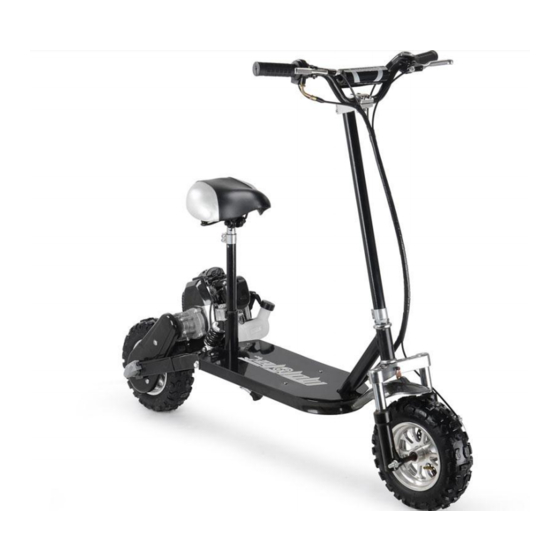

MotoTec 3 speed gas scooter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3 and is the answer not in the manual?

Questions and answers

Related Manuals for MotoTec 3

Summary of Contents for MotoTec 3

  • Page 1 MotoTec 3 speed gas scooter...
  • Page 2 The right hand with 3 speed of change...
  • Page 3 The rear wheel derailleur This screw to fixing fenders Note this screw same fixed front fork will not fall off, you need to keep 100% tightening...

  • Page 4: Getting Started

    Getting Started  Overlook your 3 speed scooter After you are done assembling your new scooter you should inspect all of the components to make sure they are functioning properly. Check brakes,chain,wheels,nuts,bolts,etc.You want to make sure the brakes feel fiim and all the nuts and bolts are properly secured.If brake adjustments are needed...
  • Page 5 before you proceed.  Mixing your fuel,and oil The engine requires a 32:1 ratio mixture of fuel,and oil.It is VERY IMPORTANT you mix your fuel properly to avoid engine failure or damage.Mixing your fuel is very casy.To get your 32:1 ratio mixture simply use 1 gallon of super unleaded 91 octane fuel,with 4 ounces of 2 cycle engine oil ...
  • Page 6 Step 3-Put the choke lever in the up position. The choke lever is to the left of the carburetor. Step 4-Pull start the engine. A good...

  • Page 7: Before You Ride

    3 times with no throttle. Then pull the cord 3 times while giving the scooter half throttle.Rotate back and forth.Scooter should start within 3-5 pulls. Step 5-Leave the choke on until the motor warms up.

  • Page 8: Maintenance

    Maintenance Maintenance is vital if you want to enjoy your scooter for years to come.  Before every ride It is important you always give the entire scooter a once over before every ride to make sure all of the screws,nutls,and bolts are secure.If something is loose tighten it.

  • Page 9: Air Filter

    right,away ,Every part on your scooter is available, easy, and painless to replace.  Air Filter Check the air filter regularly. Tf it requires cleaning be sure to remove it first.To remove the filter you must loosen the flathead screw on ehe filter you must loosen the flathead screw on the O-ring clamp located on the side of the filter.You can clean it, using warm soapy water.
  • Page 10 being able to go .So always be sure to check your brakes, and adjust them when necessary. To adjust the caliper/brakes locate the allen head bolt in the center of your caliper. You must loosen the locking nut. That secures the allen head bolt.
  • Page 11 tire has alot of drag to it. You should be able to turn these bolts by hand. Clockwise moves caliper towards disc and countrclockwise moves it away.
  • Page 12  Motor You new 3 speed scooter equipped with a Powerfull 49cc 2 stroke EPA Engine. It is a well built motor that requires little maintenance.This engine doesnt require any oil other than the 2 stroke oil that you mix your gas with.All you should need to do is check...

  • Page 13: Spark Plug

    scooter is as simple as giving it, gas to go , and squeezing the brakes to stop.The transmission is located on the side of the motor .It has a small sprocket that drives the chain attached to  Spark plug If your spark plus is no longer sparking you may want to double check your fuel mixture.If you have to much oil in your gas it will foul the plug...

  • Page 14: Checking For Spark

    spark plug laying around.  Checking for spark If you motor is not starting, and it seems it is not even coming close to firing up, then you may not be getting spark to the spark plug.To check the spark simply remove the plug from the motor, and re-install the tip of the plug back into the wire sleeve.Next grab the spark plug holding onto the wire sleeve and touch the...
  • Page 15 plug.If you do not see a spark rreplace the spark plug.Still no spark? Check your kill switch Wire to make sure it is not grounding itself against.the frame(follow the wire from the kill switch all the way back to the motor. ...
  • Page 16  Engine runs but scooter wont go? Check chain Make sure sprockets are secure Did you turn the choke off? You scooter will not go if the choke is on  Handlebars straight with tire? There is an allen head bolt located in the center of the tube that connects your front fork to your handlebars.Remove upright bar from the forks and frame to access allen head...
  • Page 17 tighten the bolt. This bolt must be extremely tight to hold.You should use something as leverage on your allen head to make it tight enough.  Chain falls off? Make sure sprockets are tighe and aligned Rear wheel/axle must be tight to hold alignment ...
  • Page 18 Motor seized(lack of oil)  Motor will not turn off? Turn choke on and give it throttle engine will stall Check kill switch and wire Replace kill switch  Bumpy ride? Check for a flat tire Check wheels for unenen wear caused from skidding Check wheel bearings -Always wear full protective gear from head to...
  • Page 19 -Never ride on a street or highway.These scooters are intended for closed/private tracks only. -Do not jump this product -Never ride in wet or icy conditions -Never start the engine in an inclosed area. Breathing exhaust fumes can be deadly -Keep your body away from moving parts at all times.
  • Page 20 PROVUDE YOUR INSURANCE POLICIES MAY NOT COVERAGE FOR ACCIDENTS INVOLVING THE OF THIS SCOOTER. TO DETERMINE IF COVERAGE IS PROVIDED, YOU SHOULD CONTACT YOUR INSURANCE COMPANY OR AGENT. DO NOT RENTURN TO STORE For service, Create Online, Trouble Ticket Http://support.bigtoysusa.com...
