- Page 1 PRODUCT MANUAL Please Read This Owner's Manual Carefully Before Operating This Vehicle...
-
Page 2: Chapter 1 Products Introduction

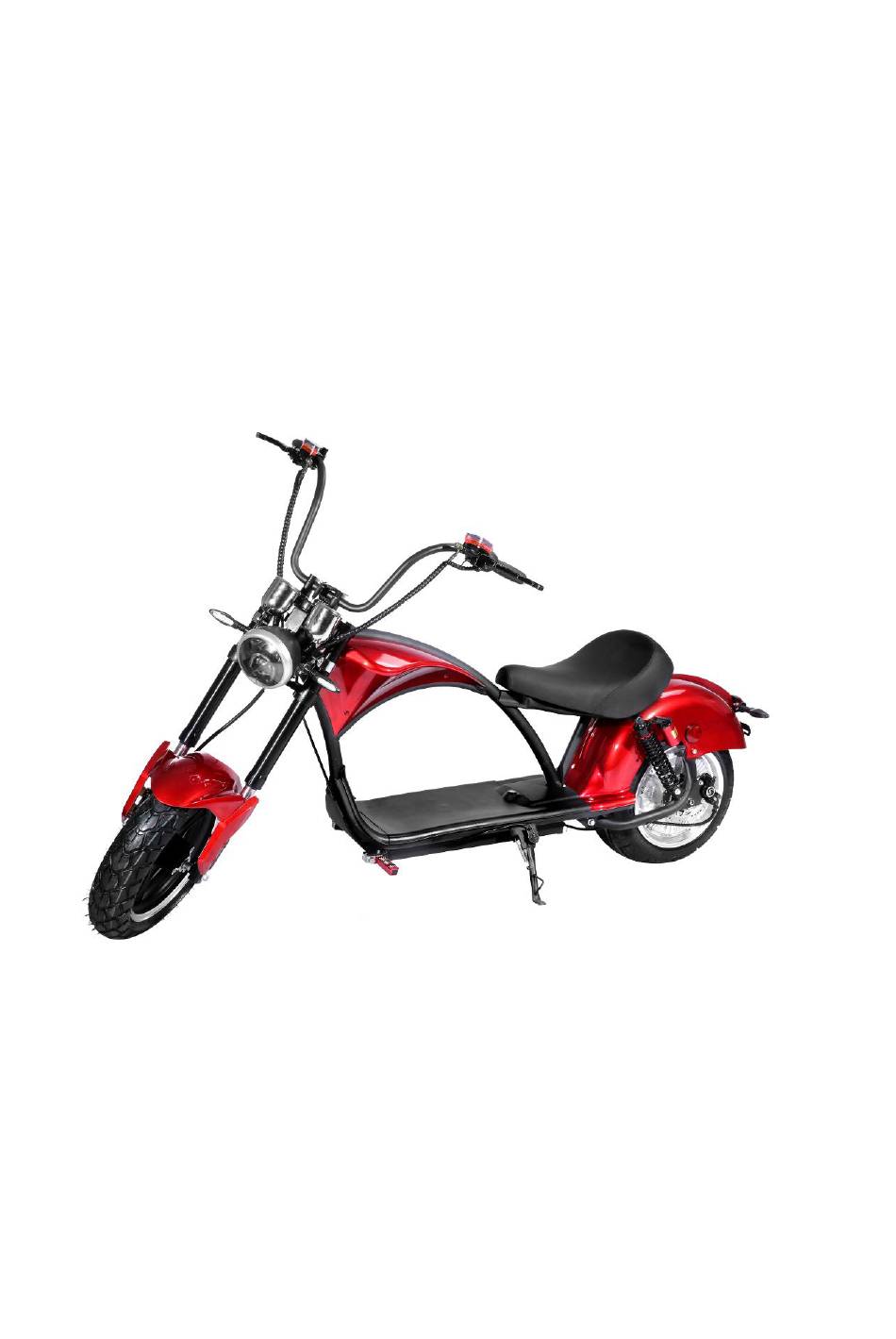

Chapter 1 Products Introduction This scooter is to use 3D design,beautiful appearance,unique style and leisure structure, which let you fall in love at first sight。 Main characteristics are as follows: 1.Lithium battery:Products by UL and CE certification and registrations of the safety inspection, safe and reliable;Service life is 3 times of lead-acid batteries, the basic do not need to change - long life;Weight is the 1/3 of lead-acid battery, light weight;... -
Page 3: Chapter 3 Main Technical Parameters
comfortable. 9.Seat cushion:adopt new plastic material plate, high elastic foam, senior anti-slip leather, elaborate design and perfect appearance, proper high, let your long ride more comfortable. 10.Smart charger: according to the automatic portable design, charging without care, wherever there is 220V ac power supply, rechargeable use. 11.Controller: specially set-up, soft start, no sense of frustration, driving safer. - Page 4 1.Product Size: 2100 * 860* 1020mm 2.Wheelbase: 1540 mm 3.High: 1045mm 4.Weight: 70kgs 5.Tire specifications: Axle 1: 130/60-13 M/C Axle 2: 215/40-12 inch 6.Maximum load: 200 kgs 7.Design top speed: ≤45 km/h 8.Range: 40 ~ 60 km 9.Maximum torque: 95 N/M 10.Maximum climbing: ≤18°...
- Page 5 Ⅰ.Precautions for safe driving 1.Please observe the traffic rules, safety, speed control, please within safe speed (pay attention to the local safe speed within 20 km/h). 2.Before driving, familiar with the contents of this manual first, and then find a empty field practice, be sure to complete control of the vehicle driving essentials, familiar with the structure and properties of the local, this is the foundation of safe driving.
- Page 6 ① Keep the natural posture, can drive. ② Driving posture: please keep this mat in the middle of the, often in case of the front wheel load loss, hand tremor and dangerous. ③ Driving posture: turning slowly turn the during acceleration, avoid catching up lead to dangerous drivers gravity instability.
- Page 7 ① The brake clearance adjustment: turn the adjusting nut by 2 mm Allen wrench (between the brake lever and handlebar tube), adjust the gap of between disk and pads, until you feel comfortable position is advisable. ② The brake pads wear every six months, more than 1 mm or brake linings on the handle of the location of the adjusting nut has to adjust, you need to change the time;Replace the brake pads, with a clean bottle with a screwdriver to press the one piece of brake pads into, with empty space to take out another piece, after replacement...
- Page 8 box plug again. ② Normal charging, charging indicator light shows red, full of, the charge indicator shows green. ③ If the temperature of the charge temperature, a red light flashing, the charger is in a state of temperature protection, please put the charger moved to a cool and ventilated place to use, when the internal temperature of the charger to charging 60°back to normal.
- Page 9 ② Completely discharge the battery stops (electric) can be down more than 95% of the electricity in 5 hours, 8 hours 100% into electricity. ③ Charging, banned direct contact with metal is negative at both ends. ④ Load products, electricity about 80% of new car should be added before use electric 3 ~ 10 hours.
- Page 10 ① Such as storage for a long time (more than a month), suggested charging to 60%~80% of the battery;Store every three months during the need to supply electricity, battery also need to supplement battery before use. ② The battery should be kept in a cool, dry environment. ③...
- Page 11 after the tire is 1.5 kg/cm2. ⑤ Power voltage indicates whether or not the full check article 3 (in chapter 4, paragraph 2). ⑥ Steering system check: up, down, forward, backward, left, right handlebar and front fork, elastic moderate, flexible steering, if there is a touch attack clattering sound, loose steering system, a sound and other issues, please contact with dealers, to provide you with the most perfect after-sale service.
-
Page 12: Chapter 6 Quality Assurance And After-Sales Service
Chapter 6 Quality assurance and after-sales service According to the consumers' rights and interests of the People's Republic of China protects a law "the legal provision, with reference to the relevant document issued by state bureau of technical supervision in order to effectively protect the legitimate rights and interests of consumers, improve product quality civil liability system, also facilitate travel 3 packets (repair, replacement or return) obligations and responsibilities, on the strength of the warranty card to sell car units designated by the... - Page 13 telephone number. ② after a car you should read the instruction for use, to master the correct method of use and daily maintenance and matters needing attention,If the electric car to don't yet know what use people, must be paid to the interpretation, lest cause accidental damage.
- Page 14 3. Don’t belong to the scope and content of "3 guarantees" ① Users are not used as stipulated in the operating instructions, maintenance or adjustment caused by the fault; ② Users are modified, folded repair the damage and its own decomposition, the failure of the original state, not for technical appraisal and analysis of fault;...
-
Page 15: Maintenance Record
Maintenance record...
