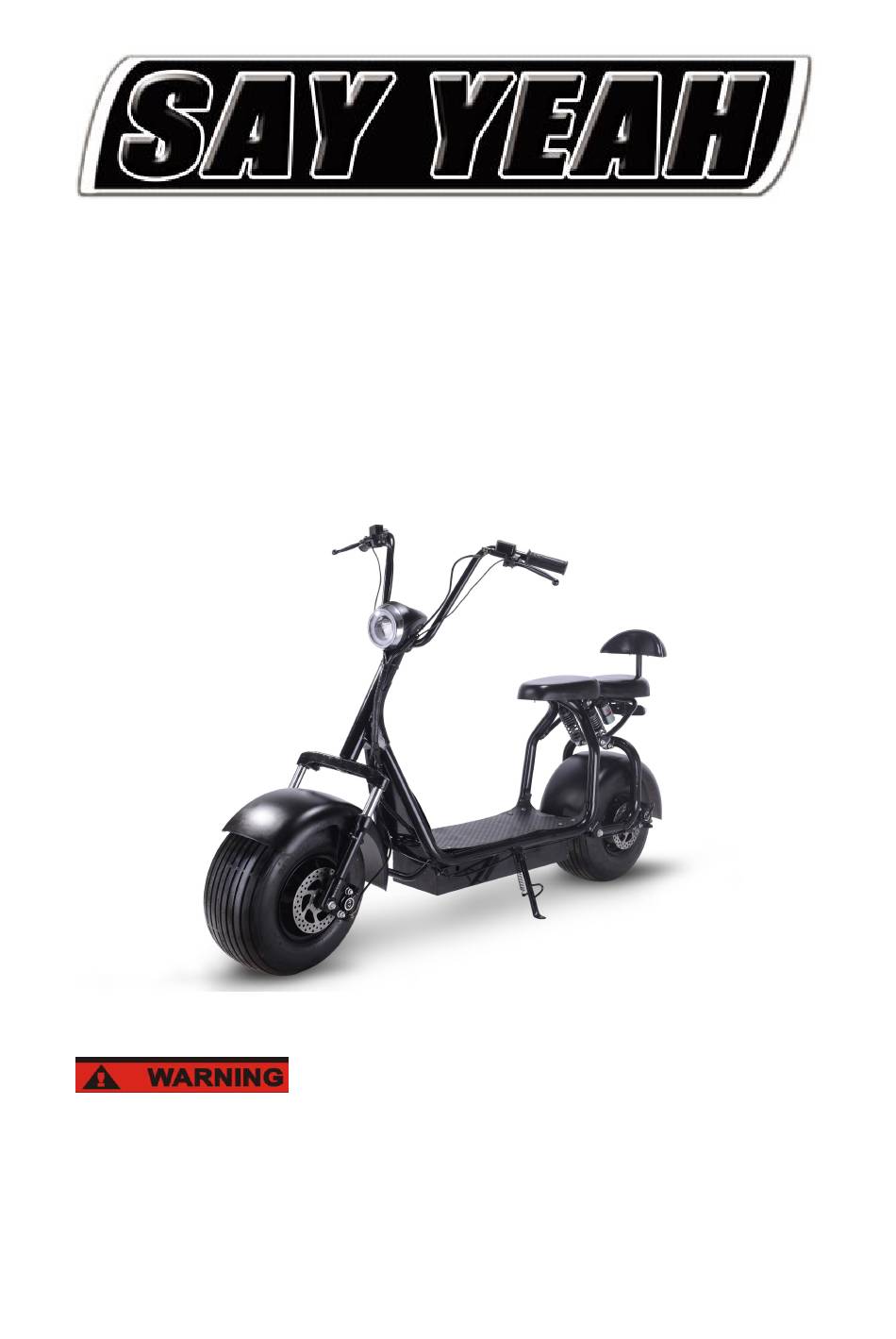

- Page 1 SAY YEAH 1000W Knock Out Electric Scooter Not for under 16 year old Read this manual completely before riding your electric trike...
-
Page 2: Table Of Contents
Contents 1. Introduction 2. Main Technical Parameters 3. Scooter Structure 4. Fast Installation 5. Safety 6. Maintenance 7. Operation Tips 8. Warm Remind 1. Introduction... - Page 3 Dear users, in order to ensure good performance of this scooter and for your safety and others safety, please read this manual carefully before using. This scooter is for people above 13 years old, people under this age is not allowed to use in case of safety.
-
Page 4: Main Technical Parameters
2. Main Technical Parameters Motor: 48 Volt 1000Watt Battery: FOUR 12v (48v total) Top Speed: 45KM/H (weight dependent) Super Bike Size:180*81*113cm Seat Height: 71cm Recommended Age: 16+ Max Rider Weight: 200kgs Frame: Steel Tires size both: 225/55-8 Brakes: hydraulic brake Throttle: Variable twist-grip Seat: Padded seat (two rider) Handlebars: Angle Adjustable Not Height... -
Page 5: Scooter Structure
3.Scooter Structure 1. Front Light 10.Rear Light 2. Power Display 11.Backrest 3. Handlebar 12.Foot support 4. Front Shock Absorber 13.Padded Seat 5. Rear Shock Absorber 6. Front Fender 7. Rear Fender 8. Front Wheel 9. Rear Wheel... -
Page 6: Fast Installation
4. Fast Installation Check those screws, and make them tightly. 5.Safety 1). Attention on Electric Scooter a). Put it in a safe place where children cannot reach when charging b).Do not drive it if power not full as it is of no enough energy to support loading and easy to fall and get hurt, and also harm to battery life c). - Page 7 batteries. d). Do not disassemble the charger because the charger contains high-voltage circuit e). Prevent liquid and metal particles penetrate inside the charger when using and store, beware of falling and impact to avoid damage f). Please use the charger in dry, ventilated environments and do not affix anything on the charger while charging g).
-
Page 8: Maintenance
b). Please turn off the power when you stop riding and please make regular maintenance and cleaning to keep your scooter in top condition c). Please store your scooter away from the raining 6.Maintenance 1. A periodic self-test project a).Front and rear wheel's nuts in the correct position and tightly b).The tire tread whether badly worn, whether cracking. -
Page 9: Operation Tips
a) Always check the handlebar if get loose. b) Always check the performance of the brakes whether good and timely adjustments. 7. Operation Tips 1). Knowledge of Battery a) It is Lead-acid battery, there is no depth of discharge problems b) The reason insufficient to charge: not timely charge after use, charging hard in cold condition, there is no delay charging, bad electrical connections... - Page 10 charging time. 2).Tips to Have a Longer Driving Distance For the reasons of scooter with short mileage are summarized as follows: a) Operation reason, the tightness of the scooter's brake system leads to inappropriate short mileage. b) Too heavy load or over load with cargo, please note max loading is 200kgs, over loading even cause burning of motor c) Drive on different road conditions, frequent braking and speed up fast...
-
Page 11: Warm Remind
electricity waste on the driving way. Save energy to achieve the purpose of improving mileage. c) When the speed of the scooter in the 35-40Km / h, the mileage can reach 30-35kms in the winter, the mileage can reach 40kms in the summer. - Page 12 causing a short circuit sparks The scooter is rain and snow resistant, but cannot be immersed into water. If water goes to battery and other electric parts, it will cause a short circuit and damage the internal electronics. Please be attention. Do not disassemble parts for replacement.
- Page 13 avoid accidents. Do not hang things on the handlebars when driving in case loose gravity and cause accident. Prohibit to put battery near the fire, avoid closing to flammable and corrosive gases 12) Do not disassemble the battery box to avoid damage to the internal parts.
