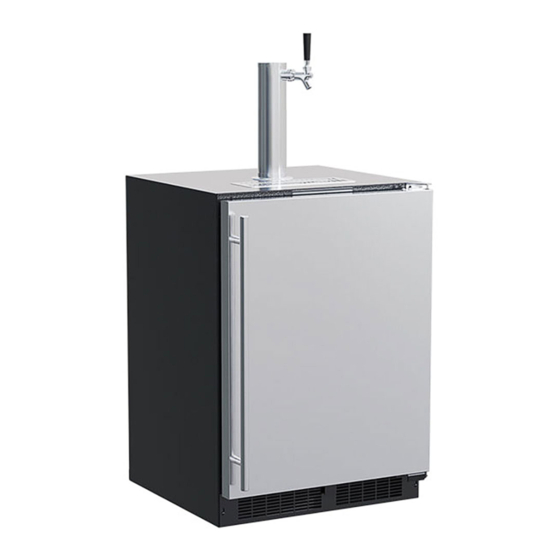

- Page 1 OWNER’S GUIDE & SERVICE MANUAL M A R V E L U N D E R C O U N T E R R E F R I G E R AT I O N Model: MLKR224-ISA1A...
- Page 2 The serial number can be found on the serial plate which is located inside the cabinet on the left side near the top. We would love to see how your Marvel product looks in its new home. You can send us photos of your installed product at marketing@marvelrefrigeration.com, and we...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Tip: Click on any section below to jump directly there Safety System Diagnosis Guide Important Safety Instructions Compressor Specifications Troubleshooting Extended Installation Thermistor Unpacking Your Appliance Defrost Electrical Remove Fan and Cover Cutout & Product Dimensions Warranty Installing Your Appliance Side-by-Side &... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Important Safety Instructions Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating this appliance. Recognize Safety Symbols, Words and Labels WARNING... -
Page 5: Unpacking Your Appliance
UNPACKING YOUR APPLIANCE WARNING CAUTION If the appliance was shipped, handled or stored in other EXCESSIVE WEIGHT HAZARD than an upright position for any period of time, allow the Use two or more people to move product. appliance to sit upright for a period of at least 24 hours Failure to do so can result in personal injury. -
Page 6: Electrical
ELECTRICAL Electrical Connection A grounded 115 volt, 15 amp dedicated circuit is required. This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be Do not remove plugged into a mating grounding type receptacle in ground prong accordance with the National Electrical Code and applicable local codes and ordinances. -
Page 7: Cutout & Product Dimensions
CUTOUT AND PRODUCT DIMENSIONS ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS "A" "B" "C" "D" "E" "F" "G" "H" "J" 24" 34” to 35" 24" 23 7/8" 33 3/4” to 34 3/4" 22 7/8" 46 1/2" (61 cm) (85.7 cm to 88.3 cm) (61 cm) (60.7 cm) (86.4 cm to 88.9 cm) - Page 8 CUTOUT AND PRODUCT DIMENSIONS PRODUCT DATA ELECTRICAL PRODUCT REQUIREMENTS # WEIGHT 140 lbs 115V/60Hz/15A (63.6 kg) "J" "H" "G" "D" "F" "E" " " (8.9 cm) (54.6 cm) Minimum Solid Door Shown Minimum rough-in opening required is to be larger than the adjusted height of the cabinet.
-
Page 9: Installing Your Appliance
The over- could result in personal injury. Contact your dealer or all height of your Marvel appliance may be adjusted higher Marvel customer service at 616-754-5601 to order. (by turning the leveling leg out, CCW) and lower (by turning For safety concerns 15"... -
Page 10: Side-By-Side & Stacking Installations
SIDE-BY-SIDE AND STACKING INSTALLATIONS Side-by-Side Installation Other Site Requirements Stainless steel models which include the standard stainless Units must operate from separate, properly grounded elec- handle will require 4-9/16" (116 mm) to allow both doors to trical receptacles placed according to each unit's electrical open to 90°... -
Page 11: Door Reversal
DOOR REVERSAL Door Reversing Instructions Tools Needed: • 1/8” Hex Key • 5/32” Hex Key • Phillips Screwdriver Open door and remove Hinge Pin from the Upper Hinge using a 1/8” Hex Key tool making sure to steady the Using a Phillips Screwdriver, remove the 6 screws from both the Upper and Lower Hinges and save for later steps Once the Hinges are removed from the unit, using a Phillips Screwdriver, remove the Bushing Screw and Hinge Pin Screw and save for later steps On the Bottom Hinge, reattach the Bushing Screw and Hinge Pin Screw to the opposite side... - Page 12 DOOR REVERSAL 6. Remove the door switch actuator tab from the door and attach it to the opposite side Door switch actuator tab 7. Reattach the Upper and Lower Hinges, and Hinge Brackets to opposite sides. Then install the door.
-
Page 13: Integrated Panel Dimensions
INTEGRATED PANEL DIMENSIONS NOTE • Panel thickness may be 5/8" or 3/4" • Center the unit in the 24" opening • If the hinge side of the product is pressed against the adjacent cabinet, use a 5/8" thick panel • The window cutout is for glass door models only •... - Page 14 USING YOUR BEVERAGE DISPENSER Shelving If you are using a quarter barrel, you can add shelf space for keeping your mugs chilled. The quarter barrel the upper and the lower shelf positions. Remove them from the refrigerator and arrange them as follows when setting up your unit.
- Page 15 USING YOUR BEVERAGE DISPENSER This dispensing unit will support one half ( Tools required for installation: or one quarter ( Flat bladed screwdriver support two sixth ( Phillips screwdriver quantity of beverage in each barrel size. Pliers Adjustable wrench or a 1 "...
- Page 16 USING YOUR BEVERAGE DISPENSER Single Dispense Tower Kit Double Dispense Tower Kit Connect ,etc..Connect ,etc..Double Single Dispense Hose clamps Dispense Tower use for connections Tower Hose clamps use for connections Coupler Coupler Coupler Regulator 5 Pound with red or nitrogen Tank airline 5 Pound...
- Page 17 USING YOUR BEVERAGE DISPENSER Rear of counter top If you are installing your keg refrigerator under a coun- ter you will need to drill 5 holes in the counter top to " " diameter hole located at the center of the tower for the beverage line, typical locate approximately 13 Diameter...
- Page 18 USING YOUR BEVERAGE DISPENSER 9. Hooking up the keg coupler to the keg: Verify the cou- lugs on the keg with the corresponding openings on the keg coupler Connect and turn clockwise until the coupler stops with "S" clockwise to hook allow gas to enter the keg.
- Page 19 USING YOUR BEVERAGE DISPENSER Optional CO tank external mounting bracket: CAUTION The optional mounting bracket is designed to hold the 5# cylinder that comes with the beverage dispenser. Larger cylinders may be purchased from a third party and If the t mounted externally.
- Page 20 USING YOUR BEVERAGE DISPENSER or Nitrogen Regulator (Double Dispense or Nitrogen Regulator (Single Dispense Tower) Tower) Your beverage dispenser comes equipped with a 5 pound Your beverage dispenser comes equipped with a 5 pound tank and a dual gauge regulator. The lower gauge should tank and a single gauge regulator.
- Page 21 Unscrew Cleaning the drain sump: On a free standing beverage dispenser remove the Marvel grate from in front of the tower, clean with soap and water and dry before reinstalling. Clean the sump area with soapy On a built in beverage dispenser remove the Marvel...
-
Page 22: Integrated Panel Installation
INTEGRATED DOOR PANEL INSTALLATION Step 2: Remove the Door Gasket Cut and prepare panels according to the information provided in the Integrated Panel Dimensions section. With the door laying on a flat surface and starting at a corner of the door, remove the magnetic door gasket from the interior side of the door. - Page 23 INTEGRATED DOOR PANEL INSTALLATION Step 4: Install the Door If reversing the door swing, reinstall hinges per Door Reversal Instructions. Carefully slide lower hinge bushing over bottom hinge pin. Install the new upper hinge bushing into adaptor plate. Align hinge bushing with top hinge and reinstall upper hinge pin using 1/8”...
- Page 24 USING YOUR ELECTRONIC CONTROL Figure 13 Electronic control Control Function Guide Function Notes ON/OFF Adjust Temperature Toggle Between o F / o C Press and release to leave interior light on for Hide Display The o F / o light and display will go dark and remain so until user resets Unit will not cool.
- Page 25 INTERIOR ADJUSTMENTS Installing the Shelves: NOTE With fl anges pointing up, insert the shelf tabs into the liner holes on the left side of the unit. Rest the right side of the shelves on the shelf hanging brackets. The shelves are labeled “Top” and “Bottom”. The bottom shelf fi...
-
Page 26: Stainless Steel Maintenance
STAINLESS STEEL MAINTENANCE Background NOTE Stainless steel does not stain, corrode, or rust as easily as ordinary steel, but it is not stain or corrosion proof. Stain- less steels can discolor or corrode if not maintained prop- Stainless steel products should never be installed, or stored erly. - Page 27 ENERGY SAVING TIPS The following suggestions will minimize the cost of operating your refrigeration appliance. 1. Do not install your appliance next to a hot appliance (cooker, dishwasher, etc.), heating air duct, or other heat sources. 2. Install product out of direct sunlight. 3.
-
Page 28: Extended Non-Use
Winterization If the unit will be exposed to temperatures of 40° F (5° C) or less, the steps above must be followed. For questions regarding winterization, please call Marvel at (616) 754-5601. CAUTION Damage caused by freezing temperatures is not covered... -
Page 29: Obtaining Service
OBTAINING SERVICE If Service is Required: • If the product is within the first year warranty period please contact your dealer or call Marvel Customer Service at 616.754.5601 for directions on how to obtain warranty coverage in your area. •... -
Page 30: Troubleshooting
BEFORE CALLING FOR SERVICE • Condenser Fan: Air moving through a condenser may be heard. If you think your Marvel product is malfunctioning, read the CONTROL OPERATION section to clearly understand the • Automatic Defrost Drain Pan: Water may be heard function of the control. - Page 31 CHECKING PRODUCT TEMPERATURE Causes which affect the internal temperatures of the cabinet include: • Temperature setting. • Ambient temperature where installed. • Installation in direct sunlight or near a heat source. • The number of door openings and the time the door is open.
- Page 32 Door Switch User Interface 2nd Switch (Drawer Models) OG RD Fresh Food Thermistor Evap Fan Interior LED 2nd LED Optional Compressor Condenser Fan...
-
Page 33: Product Liability
The part that caused the damage must be returned to Marvel in its entirety. The part must be clearly labeled with the serial number of the unit it was removed from, the date, and the servicer who removed the part. -
Page 34: Warranty Claims
Claims must be submitted online at • Final billing - Remodel www. marvelservice . co m Warranty parts will be shipped at no charge after Marvel • 60 day submittal d eadline from date of completed confirms warranty status. Please provide the model, serial service number, part number and part d escription. -
Page 35: Ordering Replacement Parts
Warranty parts will be shipped at no charge after Marvel confirms warranty status. Please provide the model, serial number, part number and part description. Some parts will require color or voltage information. -
Page 36: R600A Specifications
PERSONNEL DO HOT PUNCTURE REFRIGERANT TUBING refrigeration system. RISK Of FIRE OR EXPLOSION. FIAMHA_ B LE REFRIGERANT USED. CONSULT Never substitute Marvel OEM replacement parts REPAIR IIANUAVOWHER'S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS HUST BE FOUOWEO. - Page 37 R-600A SPECIFICATIONS/LABELING WARNING R-600a equipped products are labeled (both the unit and the compressor). Only skilled and well trained service technicians permitted to service R-600a equipped products. R-600a is colorless and odorless. All tools and equipment must be approved for use with R-600a refrigerant.
- Page 38 Evacuate/reclaim via the piecing pliers to ensure the When re-brazing, the system must be purged with dry system is empty of R-600a before any system work is nitrogen and at least one access point open to the performed. atmosphere. When re-brazing, proper ventilation is required along with constant monitoring for the presence of R600a refrigerant.
- Page 39 The low side of the refrigeration system (evaporator, Proper ventilation during service is required. compressor and suction line) must be leak tested with the compressor off (equalized pressure). Never apply a torch to a charged R-600a refrigeration system. RECHARGING No air is ever to be allowed inside the refrigeration system Use OEM replacement service parts and do not alter the (R-600a refrigerant or dry nitrogen only).
-
Page 40: System Diagnosis Guide
System Diagnosis Guide REGRIGERATION SYSTEM DIAGNOSIS GUIDE System Suction Suction Compressor Condenser Capillary Evaporator Wattage Condition Pressure Line Discharge Tube Normal Normal Slightly Very hot Very hot Warm Cold Normal below room temperature Overcharge Higher than Very cold Slightly warm Hot to warm Cool Cold... -
Page 41: Compressor Specifications
Compressor Specifications ESX36CBC REFRIGERANT R600A DANGER VOLTAGE 115-127 VAC FREQUENCY 60 Hz START WINDING 11 Ohm at 77 ° Electrocution can cause death or serious injury. RUN WINDING 11 Ohm at 77 ° Burns from hot or cold surfaces can cause serious 22 Ohm at 77 °... -
Page 42: Troubleshooting Extended
• Automatic Defrost Drain Pan: Water may be heard Marvel Refrigeration, “Customer Care Facility” at dripping or running into the drain pan when the unit is 616.754.5601 for assistance. in the defrost cycle. - Page 43 TROUBLESHOOTING GUIDE Concern Potential Causes Action Not Cooling Compressor overheating Verify proper air flow through condenser. Is condenser clean? Confirm condenser fan operation. Compressor not operating Test overload and relay, replace as needed. Compressor operating - no cooling Refer to System Diagnosis Guide. Frozen Product Control set too cold Adjust Set Point Temp accordingly.
- Page 44 MAIN CONTROL CAUTION The main control board is very robust and is rarely the cause of system issues. It is important to fully diagnose Precautions must be taken while working with the board for any suspected failures before attempting live electrical equipment. Be sure to follow to remove the board for replacement or service.
- Page 45 Thermistors Thermistors are used for various temperature readings. Thermistors provid e reliable temperature readings using a resistance which varies based on surrounding temperatures. If a faulty thermistor is suspected it may be tested using an accurate ohmmeter. Thermistor Resistance Data Nominal Resistance Temp (F) Temp (C)
-
Page 46: Defrost
Defrost Outdoor units defrost every 3 hours of compressor runtime for 40 minutes. If you have verified that the unit does not have an ambient air leak, utilize the Control Operation - Service section and adjust unit to defrost every 2 hours for 60 minutes Defrost... -
Page 47: Remove Fan And Cover
Remove Fan and Cover Remove insulating foam from refrigerant line pass- through hole as needed to gain clearance for fan plug. CONVECTION COOLING Remove internal shelving. This unit is equipped with an advanced convection cooling system. Convection cooling stabilizes cabinet temperature, Remove evaporator cover screws. - Page 48 NOTICE Fan must be oriented to pull air in through lower evaporator cover vents and push air out at fan mounting location. 13. Installation is the reverse of removal. 14. Care must be taken to assure the bottom of the evaporator cover is reinstalled behind the front edge of the train trough.
- Page 49 For designated Marvel Professional product, Marvel offers a one year extension of the two year warranty coverage from the date of purchase, free of charge. To take advantage of this third year warranty, you must register your product with Marvel within 60 days from the date of purchase at marvelrefrigeration.com and provide proof of purchase.
- Page 50 Marvel Refrigeration 1260 E. Van Deinse St. Greenville MI 48838 616.754.5601 All specifications and product designs subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products.
