GE T TING STARTED

QUICK REFERENCE GUIDE

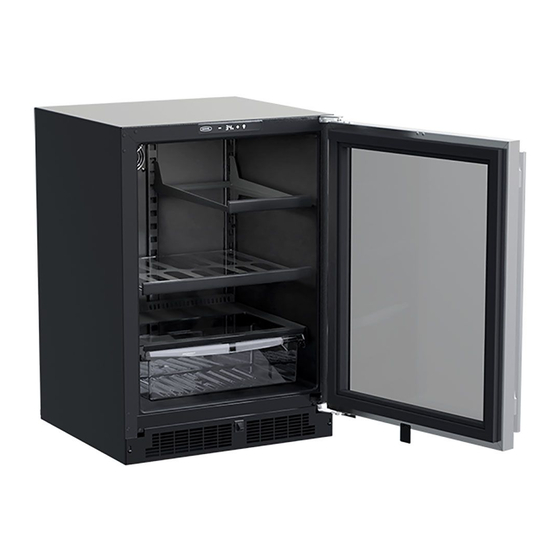

MARVEL UNDERCOUNTER REFRIGERATION

M L R E 2 2 4 - S G 8 1 A

M L R E 2 2 4 - S S 8 1 A

M L R E 2 2 4 - I G 8 1 A

M L R E 2 2 4 - I S 8 1 A

M L R E 2 2 4 - B G 8 1 A

T H E O R I G I N A L R E F R I G E R A T I O N E X P E R T S S I N C E 1 8 9 2

Table of Contents

Need help?

Do you have a question about the MLRE224-SG81A and is the answer not in the manual?

Questions and answers

Summary of Contents for Marvel MLRE224-SG81A

Page 1 GE T TING STARTED QUICK REFERENCE GUIDE MARVEL UNDERCOUNTER REFRIGERATION M L R E 2 2 4 - S G 8 1 A M L R E 2 2 4 - S S 8 1 A M L R E 2 2 4 - I G 8 1 A...
Page 2: Table Of Contents
/ product damage. Got a Marvelous Design? NOTE We would love to see how your Marvel product looks in its new home. Send us photos at marketing@marvelrefriger- NOTE- ation.com, and we might feature your Marvel home design...
Page 3: Unpacking Your Appliance
UNPACKING YOUR APPLIANCE WARNING CAUTION If the appliance was shipped, handled, or stored in other EXCESSIVE WEIGHT HAZARD than an upright position for any period of time, allow the ap- Use two or more people to move product. pliance to sit upright for a period of at least 24 hours before Failure to do so can result in personal injury.
Page 4: Electrical
ELECTRICAL Electrical Connection A grounded 115 volt, 15 amp dedicated circuit is required. This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in ac- cordance with the National Electrical Code and applicable Do not remove local codes and ordinances (see figure below).
Page 5: Installing Your Appliance
The over- could result in personal injury. Contact your dealer or all height of your Marvel appliance may be adjusted higher Marvel customer service at 616-754-5601 to order. (by turning the leveling leg out, CCW) and lower (by turning For safety concerns 15"...
Page 6: Door Reversal
DOOR REVERSAL Door Reversing Instructions Tools Needed: • 1/8” Hex Key • 5/32” Hex Key • Phillips Screwdriver Open door and remove Hinge Pin from the Upper Hinge using a 1/8” Hex Key tool making sure to steady the Using a Phillips Screwdriver, remove the 6 screws from both the Upper and Lower Hinges and save for later steps Once the Hinges are removed from the unit, using a Phillips Screwdriver, remove the Bushing Screw and Hinge Pin Screw and save for later steps On the Bottom Hinge, reattach the Bushing Screw and Hinge Pin Screw to the opposite side...
Page 7 DOOR REVERSAL 6. Remove the Toe Kick from the door and attach it to the opposite side Toe Kick Reversal 7. Reattach the Upper and Lower Hinges, and Hinge Brackets to opposite sides. Then install the door.
Page 8: Using Your Electronic Control
Time to reach set point varies based upon ambient temperature, temperature of product loaded, door openings, etc. Marvel recommends allowing the unit to reach set points before loading.
Page 9 USING YOUR ELECTRONIC CONTROL BrightShield™ This model includes BrightShield™ with Vyv™ Antimicrobial Light Technology. BrightShield™ • Kills* and prevents the growth of viruses, bacteria, fungi, yeasts, mold, and mildew • Provides continuous antimicrobial action to keep surfaces clean • Is approved for continuous use around people, pets, & plants •...
Page 10: Care And Cleaning
CARE AND CLEANING Front Grille Be sure that nothing obstructs the required air flow open- ings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see page 8).
Page 11: Warranty
For designated Marvel Professional product, Marvel offers a one year extension of the two year warranty coverage from the date of purchase, free of charge. To take advantage of this third year warranty, you must register your product with Marvel within 60 days from the date of purchase at marvelrefrigeration.com and provide proof of purchase.
Page 12 Marvel Refrigeration 1260 E. Van Deinse St. Greenville MI 48838 616.754.5601 All specifications and product designs subject to change without notice. Such revisions do not entitle 41016397 Rev A the buyer to corresponding changes, improvements, additions, replacements or compensation for previously purchased products.

This manual is also suitable for:

Mlre224-ss81a Mlre224-ig81a Mlre224-is81a Mlre224-bg81a
