- Page 1 AiM user manual EVO4/EVO4S and Solo/SoloDL kit for Honda CBR 1000RR (2004-2015) CBR 600RR (2003-2015) Release 1.03...
- Page 2 Models and years This user guide explains how to connect AiM EVO4, EVO4S and SoloDL to the Engine Control Unit (ECU) of Honda CBR-RR bike. Supported years and models are: Honda CBR 1000RR 2004-2015 Honda CBR 1000RR HRC 2014-2015 ...
- Page 3 Please remember: connection kit fits all Honda bikes listed before while installation one only fits Honda CBR 600RR and Honda CBR 600RR HRC with ECU marked D11. AiM connection kit (1) and bracket (2-6) can be also bought as spare parts: SoloDL connection kit: V02569290 ...
- Page 4 AiM cable for SoloDL/EVO4S SoloDL interface cable – shown here below – part number is: V02569290. The image below shows the cable construction scheme. 3 ...
- Page 5 AiM cable for EVO4 EVO4 interface cable – shown here below – part number is: V02563290. The image below shows the cable construction scheme. 4 ...
-
Page 6: Installation And Connection
Installation and connection Here you find the instructions to install Solo and SoloDL and to connect EVO4, EVO4S and SoloDL to your Honda bike ECU. EVO4 cable is long enough to allow installation under the bike seat. Installing Solo and SoloDL To install Solo/SoloDL on your Honda CBR 600RR and 600RR HRC with ECU marked D11: Insert the screw and the washer in the bracket. - Page 7 Fix Solo and Solo bracket on the kit bracket using M4x10 screws. Hook Solo to its bracket. Fix Solo screwing the kit bracket screws 6 ...
- Page 8 Remove the cap of the bike handle bar hinge and insert the rawl nut in the hole. Tighten the central screw on the hinge so that the rawl nut grips. 7 ...
- Page 9 Honda CBR-RR with PGM-Fi after 2003-2004 bikes communicate with Honda Diagnostic system (HDS) using the K Line. To connect SoloDL, EVO4 and EVO4S to the bike K Line use the Sumitomo red connector (DLC) shown here below and connect it to Sumitomo connector of SoloDL, EVO4 and EVO4S connection kits.
- Page 10 Connect 7 pins Binder 712 female connector of SoloDL – right under the logger – to 7 pins Binder 712 male connector of the connection kit (V02569290) as shown here below. As said SoloDL connection kit allows also to power the logger. The table below shows colours of the cables connected to Honda Sumitomo connector and their function.

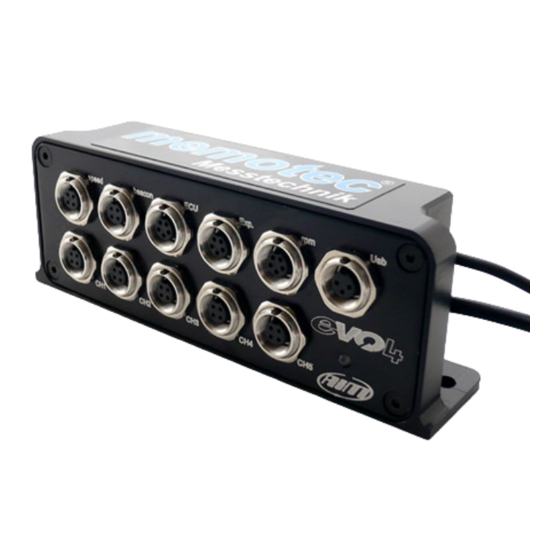

- Page 11 Connect EVO4 5 pins Binder 712 female connector labelled "rpm/K DO" –second from right of the top row – to 5 pins Binder 712 male connector of V02563290 kit as shown here below.. The table below shows the colour of the cables connected to Honda Sumitomo connector as well as their function.
- Page 12 Connect 7 pins Binder 712 female connector labelled ECU of EVO4S to 7 pins Binder 712 male connector of the connection kit (V02569290) as shown here below. As said EVO4S connection kit allows also to power the logger. The table below shows colours of the cables connected to Honda Sumitomo connector and their function.
- Page 13 Race Studio configuration Before connecting EVO4, EVO4S and SoloDL to the bike ECU set it up using Race Studio 2 software. The parameters to select in the logger configuration are: ECU Manufacturer: "Honda" ECU Model according to the following table: "HDS_TAB10"...
-
Page 14: Available Channels
Available channels Channels received by SoloDL, EVO4 and EVO4S connected to Honda bike change according to the selected protocol. "Honda" "HDS_TAB10" protocol Channels received by SoloDL, EVO4 and EVO4S connected to "Honda" "HDS_TAB10" protocol are: CHANNEL NAME FUNCTION ECU_1... - Page 15 "Honda" "HDS_TAB11" protocol Channels received by SoloDL, EVO4 and EVO4S connected to "Honda" "HDS_TAB11" protocol are: CHANNEL NAME FUNCTION ECU_1 HDS_RPM ECU_2 HDS_TPS_V Throttle position sensor voltage ECU_3 HDS_TPS Throttle position sensor ECU_4 HDS_ECT Engine coolant temperature ECU_5 HDS_IAT...
