  • Page 1 MyChron3 Dash User Manual...

  • Page 2: Table Of Contents

    Chapter 1 – The dash......................3     1.1 – Part number ............................3 Chapter 2 – MyChron3 Dash connection scheme ............4   Chapter 3 – Menu functions ....................5   Chapter 4 – Data visualization while running ..............8  ...

  • Page 3: Chapter 1 - The Dash

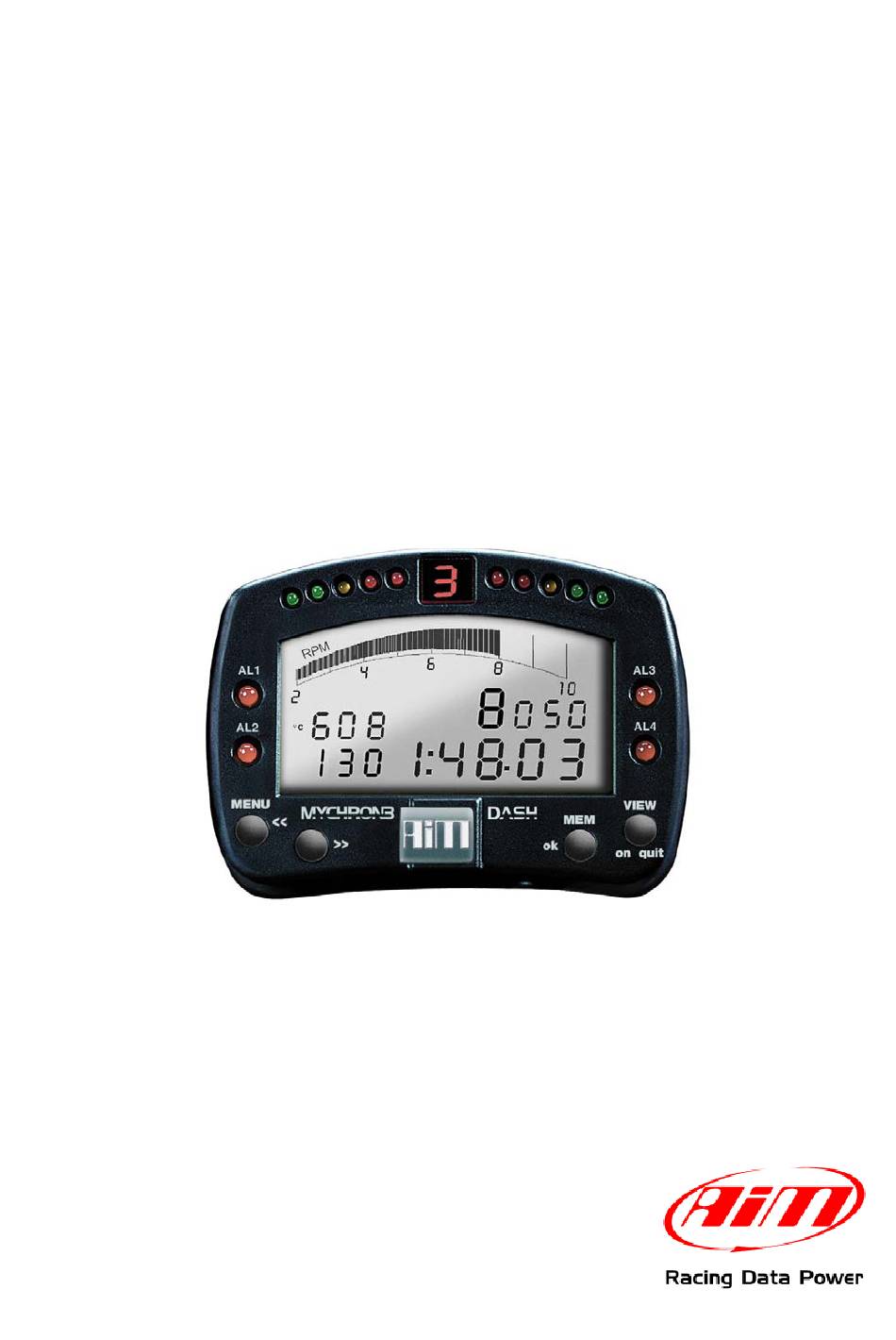

    Release 1.02 Chapter 1 – The dash MyChron3 Dash is the perfect replacement of the stock dash and allows to show and customize EVO3 Pro, EVO3 Pista and EVO4 channels with RPM, speed, engaged gear, temperatures, oil pressure, lap time, alarms, etc…, as well as all signals coming from the vehicle ECU.

  • Page 4: Chapter 2 - Mychron3 Dash Connection Scheme

    Release 1.02 Chapter 2 – MyChron3 Dash connection scheme To connect MyChron3 Dash to AIM loggers just plug the dash cable in the logger connector labelled “Exp.” Warning: when connecting the Dash to the logger both devices must be OFF.

  • Page 5: Chapter 3 - Menu Functions

    User Manual Release 1.02 Chapter 3 – Menu functions MyChron3 Dash menu functions are only accessible when the dash is not recording. Warning: functionalities described in this tutorial have been implemented from firmware version 15.21 onward. Pressing “MENU/<<” button screens here below shown appears.
  • Page 6 MyChron3 Dash User Manual Release 1.02 Lap Time Shows the lap time visualisation set on the display. Use “MEM/ok” to switch from one setting to the other. Available options are: • Normal: shows lap time; • Predict: shows predicted time;...
  • Page 7 MyChron3 Dash User Manual Release 1.02 Odometer (EVO4) Shows total run kilometres of the master logger from the last reset. This measure is computed using the reference speed set on the master logger configuration. Press twice “MEM/ok” to clear. Firmware Version...

  • Page 8: Chapter 4 - Data Visualization While Running

    MyChron3 Dash User Manual Release 1.02 Chapter 4 – Data visualization while running MyChron3 Dash shows instantaneously data sampled by the logger. 4.1 – EVO3 Pro and EVO3 Pista without GPS expansion The main window shows: RPM graph bar (1) Three fields set by default (2) and shown in loop pressing “VIEW”:...

  • Page 9: Evo4 And Evo3 Pro/Pista With Gps Expansion

    MyChron3 Dash User Manual Release 1.02 4.2 – EVO4 and EVO3 Pro/Pista with GPS expansion The images below show on the left the display main page in recording mode and on the right GPS diagnostic page reached using “VIEW” button: RPM graph bar (1);...

  • Page 10: Gps Signal And Split Times Setting (Evo4, Evo3 Pro/Pista With External Gps)

    (see Race Studio Configuration user manual for further information on AIM loggers configuration). • press “VIEW” on MyChron3 Dash until “OK SET GPS MARKER” appears (see below). External GPS is to be connected and EVO3 Pro/Pista configuration must include an external GPS Module as CAN expansion.
  • Page 11 This page appears only in case splits have been set in configuration and appears as many time as many split have been set. Press “MEM/OK” on MyChron3 Dash in the point where the split is to be fixed. OK TO SET LAP Press “MEM/OK”...

  • Page 12: Chapter 5 - Data Recall

    MyChron3 Dash User Manual Release 1.02 Chapter 5 – Data recall When the session is over it is possible to recall stored data pressing “MEM/OK”. The display shows test and lap number the data refer to under the RPM Bar graph (in the above image: “TEST 02 –...

  • Page 13: Chapter 6 - Mychron3 Dash Configuration

    • Channels and alarm 1 and 2 of pages 1 and 2; this means that it is possible to set the four channels displayed (two by two) by MyChron3 Dash and link their Max and Min threshold values (Max/Min cases) to two led that switches on when these threshold values are reached.

  • Page 14: Appendix - Connection Cable

    Approvato da / Approved by Nome file / File name Data / Date Scala / Scale Titolo / Title Cavo MyChron3 Dash, EVO3 Pro/Pista, DaVid Stand Alone N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet 04.555.08 1 of 1 Rev.
