- Page 1 EVO4S Logger USER GUIDE AiM TECH Srl. Via Cavalcanti, 8 20063 Cernusco S/N (MI) Italia Tel. (+39) 02.9290571 www.aim-sportline.com Made in Italy...
- Page 2 10.1.2 ECU STREAM CONFIGURATION 10.1.3 CAN RESISTOR CONFIGURATION First, we would like to thank you for 10.1.4 MATH CHANNELS choosing the EVO4S logger as the tool for 10.1.5 PARAMETERS improving your racing craft setup and 10.1.6 OUTPUT SIGNALS on track performance.
- Page 3 What is the difference What output ? between the old DRK about RaceStudio3? EVO4S is the evolution of the well format and new XRK? known EVO4: same connection logic, Yes, EVO4S features a digital output one connector per channel, but with a you can freely configure.
-
Page 4: What Is In The Kit

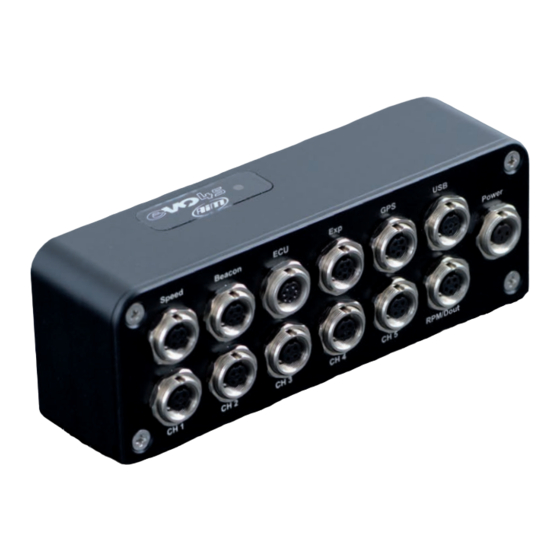

CHAPTER 2 WHAT IS IN THE KIT EVO4S 2. What is in the kit The EVO4S kit includes: EVO4S logger Harness Kit 1 Power, CAN, Dig.Out., USB Kit 2 Power, OBD (CAN+K), Dig.Out, USB Optional RS232, RPM+Dig.Out.,CAN+Power GPS08 module Software... - Page 5 CHAPTER 3 LAYOUT EVO4S EVO4S Logger RGB LED ALUMINUM BODY SPEED BEACON POWER RPM/DOUT...
- Page 6 ECU to ensure compatibility between the data flow transmitted are available, too. From an hardware point of view, EVO4S is compatible with all currently available connections: CAN, RS232 or K line. The steps to manage the data coming from the ECU are the following: 1.
- Page 7 6.2 RPM via a 5-50 V Square Wave Signal or coil (150-400 V) In case your engine is not managed by any ECU, EVO4S can read the signal from the low voltage of the coil (whose peak can be from 150 to 400 V) or from a possible square wave (the peak can be from 5 to 50V).
-
Page 8: Analog Inputs
Simply enable it using RaceStudio3 software, as explained in section 10.1.1 7.2 Speed read from the GPS receiver The GPS receiver you find in EVO4S kit is configured in order to obtain the best performance in terms of reactivity and accuracy. -
Page 9: Digital Output
You can configure it in order to turn it on or put. Connecting examples INSIDE EVO4s INSIDE EVO4s INSIDE EVO4s Load up to 1 Amp Directly managed by EVO4S digital output Load higher than 1 Amp requires an automotive relay... -
Page 10: Race Studio 3 Software
Creates, imports, exports and modifies regarding your EVO4S. existing configurations. Tracks It is provided on a CD included in EVO4S kit Creates, imports, exports and modifies the or can be downloaded from Download area map of your racing tracks. of www.aim-sportline.com. - Page 11 CHAPTER 10 RACE STUDIO 3 SOFTWARE EVO4S After having entered the EVO4S configuration page you can see different tabs, which are useful By clicking on each line, a menu appears: for selecting one of the following configuration features: You can define:...
- Page 12 CHAPTER 10 RACE STUDIO 3 SOFTWARE EVO4S5 10.1.2 ECU Stream configuration 10.1.3 CAN resistor configuration A CAN line ending 120 Ohm resistor can be enabled/disabled through this checkbox. Push the tab "ECU Stream". Here you set the ECU driver as well as enable or disable the data coming from your ECU and enable/disable the ending 120 Ohm CAN 1 resistor.
- Page 13 Optical beacon requires you to insert a time define one or more custom conditions during which the system does not record and decide that your EVO4S start recording additional lap signals. when one or all set conditions occurs. EVO S To modify/delete a math channel click the corrisponding icon and select the desired option.
-
Page 14: Can Output
It is your responsibility to fully understand your vehicles CAN-bus. AiM cannot be held responsible for any damage or injury caused by misuse of this function. -
Page 15: Modify Or Delete An Existing Configuration
To delete an existing configuration, right click on it and select delete. 10.3.1 Configuration Transmission When you connect an EVO4S to your PC, the “TRANSMIT” pushbutton appears at the top of the configuration page. Push it and the configuration will be transmitted. -
Page 16: Data Download
RACE STUDIO 3 SOFTWARE EVO4S 10.3.2 On Line View and Calibration 10.3.3. Data Download Once EVO4S connected, click on it to enter Sensors to be auto-calibrated are typically To download data click on your EVO4S Push “DOWNLOAD” tab for downloading On Line view. -
Page 17: Gps And Track Management
Opening the software, with no logger connected to your PC, you will see the If EVO4S knows the finish line of the track screen shown here on the right. As you can and the split coordinates, it can calculate see, the screen is divided in three parts. - Page 18 CHAPTER 11 GPS AND TRACK MANAGEMENT EVO4S 11.2 Tracks Collections 3) Manual collections To create a Manual Collection of tracks click on the setting Icon, fill in the Collection You can see collections of tracks selecting name and click OK.
- Page 19 To delete a track you imported just select it and press "Delete" on the software top central key- board. GPS08 Module Lambda Controller 11.5 How to transmit track information to EVO4S To transmit track information to your EVO4S select the tracks you want to load in your EVO4S and click "Transmit" on the software top central keyboard.
- Page 20 CHAPTER 13 EVO4S PINOUT EVO4S 13. EVO4S Pinout...
-
Page 21: Technical Drawings
YES: GPS module, Channel expansion, Lambda controller, - External modules connection SmartyCam HD 5 fully configurable: 0-5V, 0-12V, K thermocouples. Max freq Our web site aim-sportline.com is constantly - Analog inputs updated. 1 KHz each Coil RPM and 2 speed inputs... - Page 22 NOTES EVO4S...
