Summary of Contents for Aim MXK10

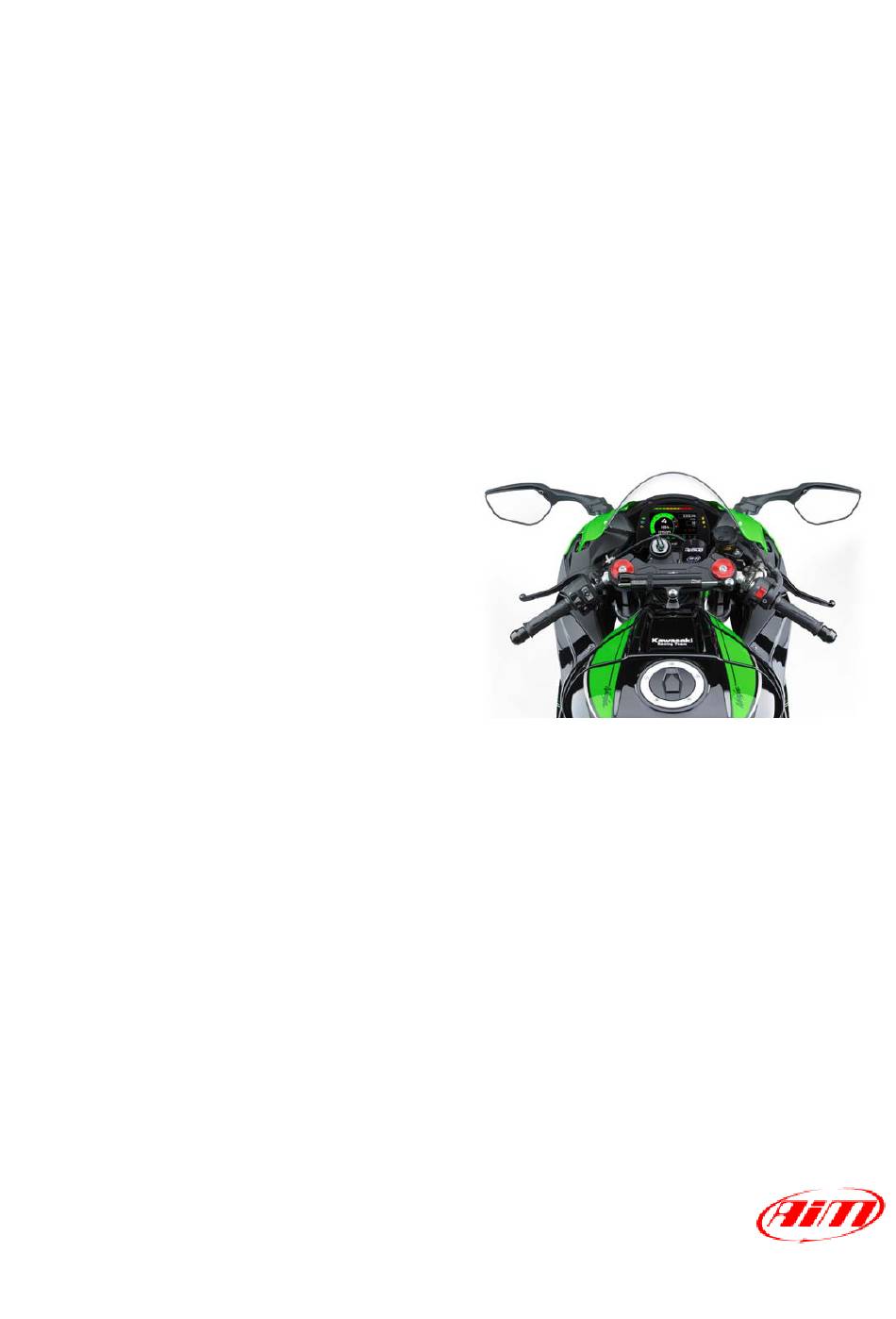

- Page 1 User Manual MXK10 for Kawasaki Ninja ZX-10R Kawasaki Ninja ZX-10R racing Kit Release 1.02 ...
- Page 2 INDEX 1 – MXK10 in a few words 2 – What is in the kit? 3 – Installation 4 – MXK10 Main features 4.1 – Lap Times 4.2 – Icons 4.3 – LEDs 4.4 – The bike keyboard 4.5 – Parameters setting at start up or while riding 4.6 – Data Recording 5 – Menu 5.1 – Vehicle settings 5.1.1 – Power Mode setting .................................. 1 3 5.1.2 – KQS UP (Quick shift) .................................. 14 5.1.3 – KLCM (Launch Control Level) ................................. 14 5.1.4 – KIBS (Intelligent braking system) .............................. 1 4 ...
-
Page 3: Mxk10 In A Few Words
1 – MXK10 in a few words MXK10 is an AiM dash-logger designed to be installed on Kawasaki Ninja ZX-10R produced in the years 2016-2019 also if connected to Kawasaki Racing kit. It is a full Plug and Play dash, completely compatible with the original connector and with the fixing points of the original bracket of your bike. -
Page 4: What Is In The Kit
2 – What is in the kit? MXK10 kit (part number: XA2MXS12A05R0KN) includes: MXK10 dash-logger (1) washers and screws to fix MXK10 (2) GPS Module (3) GPS bracket with screws (4) 4 ... -
Page 5: Installation
Ninja stock dash and install MXK10 dash-logger is available. 4 – MXK10 Main features First of all, we have to say that MXK10 has two different working modes: Road Mode and Track Mode. You may swap between the two modes entering “Display” option of “Preferences” Menu (paragraph 5.2.1). - Page 6 Images here below show some examples of possible pages layout. Road usage. Track usage In road pages ECT or Engine Coolant Temperature (Water Temperature) and IAT or intake air temperature (Air Temperature) are shown while in track pages also Lap Time and Lap number are shown. 6 ...
-
Page 7: Lap Times
As said MXK10 features two working modes: road and track. In track mode the lap pushbutton can be disabled (see paragraphs 5.2.1 and 5.2.3) to avoid confusion between GPS signal and Lap button one while in road mode Lap button is always enabled and GPS Module is always disabled. -
Page 8: Icons
4.2 – Icons Thanks to the wide number of icons available on its display, the dash-logger shows a good amount of information. Here follows explanation of their meaning and working mode. Water Temperature It turns on when water temperature gets over a customized value (default value 105°C) Battery It turns on when ... -
Page 9: Leds
In the upper part of the dash logger are 10 LED customizable shift lights (1): when all lights are on it is suggested to shift gear. Please note: to set the shift lights you need AiM Race Studio 3 software (from Race Studio 3.29.47 onwards) you can freely download from www.aim-sportline.com. -
Page 10: The Bike Keyboard
4.4 – The bike keyboard Kawasaki Ninja features five buttons: four on the left handlebar and one on the right one, used to manage MXK10 dash logger: UP (1) SEL (2) DOWN (3) LAP (4) ... -
Page 11: Data Recording
In Road Mode data recording is disabled. To enable it push START/STOP for 5 seconds and push it again for 5 seconds to disable it. In Track Mode data recording is automatically enabled and activates when RPM reaches 2000 and speed is higher than 20 km/h. When MXK10 is recording the related icon appears ( ) 11 ... -
Page 12: Menu
5 – Menu Push SEL to enter MXK10 settings “Menu” and set some parameters. Please note: this is possible only if the bike is not moving. Use “UP” and “DOWN” buttons to scroll option and “SEL” to select the desired option. The icons stays for. -
Page 13: Vehicle Settings
5.1 – Vehicle settings To configure the functionalities of the bike navigate through the icons with “UP” and ”DOWN” buttons, select the icon and press “SEL” to change the selected parameters. The parameters you may set are: Power Mode: Full, Middle or Low ... -
Page 14: Kibs (Intelligent Braking System)
5.1.2 – KQS UP (Quick shift) Quick shift parameters are related to Up and Down shift. It is possible to enable/disable UP and Down modes. The selected setting is shown by an icon in MXK10 bottom row. Down Up&Down 5.1.3 –... -
Page 15: Kecs (Electronic Suspensions - With Kecs Unit Only)
5.1.5 – KECS (electronic suspensions – with KECS unit only) Electronic suspensions working range; available options are: Road Track Manual 5.1.6 – KECS settings When KECS is in Manual Mode you may freely set the suspensions entering KECS Settings MENU. You may: ... -
Page 16: S-Ktrc (Traction Control) Settings
5.1.7 – S-KTRC (Traction Control) Settings Scroll to this option and press “SEL” in “Vehicle settings” page to set this parameter. To change this parameter. Press “Up” and “Down” buttons for one second (long pressure) with Kawasaki stock ECU ... -
Page 17: Preferences
5.2 – Preferences In “Menu” page navigate through the icons with “UP” and ”DOWN” buttons, select the icon you see here above and press “SEL”. Please note: if your bike is set in road mode Lap switch option is not available. Here you can define: ... - Page 18 5.2.1 – Display Here you can select MXK100 display layout You may choose among two different layouts: Analog or digital. Analog layout Digital layout Each of them shows also the lap time if you set “Track” mode Analog layout in Track mode Digital layout in track mode 18 ...
- Page 19 And finally, for each of the layouts there is a “Night” mode (black background) and a “Day” mode (White background) for improving the visibility in any light condition. Analog Track layout in Day mode Digital Track layout in Day mode For setting the layout preferences you have the menu.
-
Page 20: Lap Switch
5.2.4 – Brightness MXK10 has two levels of brightness for day and night usage. A light sensor (shown below on the right) in the lower left side of the dash logger may help setting the desired brightness and the current display brightness is shown bottom of the page. -
Page 21: Trip
In Menu page navigate through the icons with “UP” and ”DOWN” buttons, select the icon pushing “SEL”. MXK10 offers five different odometers. One of them is not resettable while the others are. The first two odometers are used to show total and partial mileage. - Page 22 In this mode you may select the track from the internal database. This mode is to prefer when multiple track configurations are available nearby. In this case MXK10 would anyway recognize the track but would need at least one complete track lap.
-
Page 23: System
5.5 – System This page shows serial number as well as firmware and booter version of your MXK10. 23 ... -
Page 24: On Track Application
6 – On track application If you are going to use your bike on a track, for track days or competition and wish to take the maximum advantage from MXK10, you will probably need to install a few sensors (suspension potentiometers, brake pressure..) and connect them to AiM Channel Expansion (shown here below), a small module that you will connect to the EXP Port in the back of the device. -
Page 25: Configuration
“Configurations” icon and configurations page appears click “New” and new configuration panel appears: select an “MXK10” logger and press “OK”; when performing subsequent configurations “Select Configuration” panel shows on top the last four devices you configured. You can configure MXK10: ... - Page 26 6.2.1 – CAN expansions configuration To configure MXK10 CAN Expansions activate the related layer. At the very first MXK10 connection this page shows up: Select the CAN expansion to set and press “OK”. Each expansion needs to be set filling in the related panel.
- Page 27 Setting LCU-One CAN To set an LCU-One CAN: press “New Expansion” button; select “LCU-One CAN” and press OK name the LCU One and fill in its serial number or press “Get SN from a connected expansion” to receive the serial number from the connected LCU-One ...
- Page 28 press “Close” to save and exit Please note: for any further information about AiM CAN Expansions refer to the related user manuals you can download from AiM website www.aim-sportline.com documentation area, products section. When the configuration is finished: ...
- Page 29 6.2.2 – Shift Lights Configuration To configure MXK10 Shift Lights activate the related layer; this page shows up. To use the led bar as shift lights (to help you shifting gear) click the icon ( ) and the setting panel shows up. Configure: ...
-
Page 30: Managing A Track On Mxk10 With Race Studio 3
MXK10 and is the name shown top right of each track box track city is the name of the city the track is located in ... - Page 31 When MXK10 is connected it is shown on the left bottom part of the page as said before. Clicking on it all the tracks it contains are shown in the right column of the page. Tracks created by the user are labelled “User” and if the track stored in MXK10 logger is different from the one stored in AiM database this is notified as shown here above.
- Page 32 Delete All: delete all tracks stored in the device memory Save all: save all the tracks stored in the connected device; it creates a zip file that can be loaded to another AiM device Load Saved: load the tracks previously saved in the device memory Since the software is constantly updated, may be other information or features will be available soon.
-
Page 33: Data Recall
7 – Data recall At the end of the test sampled data can be recalled pressing “LAP”. First is “Today” page. Press “LAP” Second is “Summary” page that shows all the last tests with date and place. Select the day you see and press “SEL”. Third is “Day Summary”... -
Page 34: Data Download And Analysis
8 – Data download and analysis Once the test session is over it is possible to download data sampled on a PC. Connect MXK10 dash logger to a PC and click on it bottom left of the software page. Once reached the device page activate “Download”. layer It shows all the information concerning the file stored in the logger: number of laps, best lap, date/time, file dimensions. -
Page 35: Wifi Configuration
1 – As an access point (AP – default) This is the ideal configuration for one only device and one only computer. In this situation MXK10 creates a Wi-Fi network and works as an Access Point the PC can be connected to. - Page 36 This mode is complex and implies an external access point (AP) but it is also more flexible and powerful because allows the communication among more than one device and more than one computer in the same network. MXK10 and the PC must connect to an existing Wi-Fi network made by a device that works as an external access point.
-
Page 37: Configuring Mxk10 Dash-Logger As An Access Point (Ap)
9.1 – Configuring MXK10 dash-logger as an access point (AP) This is MXK10 default configuration and is the easiest and most direct connection mode, ideal to communicate with one MXK10 logger using one PC. It is free and so completely accessible by anyone. Please set an access password as soon as possible. - Page 38 To set other parameters create a unique password to protect the device/ network. With a password the communication is safe and encrypted using WPA2-PSK standard. Characters allowed in the password are all letters, also capital, all digits and these characters: ‘+-_()[]{}$£!?^#@*\\\”=~.:;/%" “Space”...
-
Page 39: Adding Mxk10 Loggers To An Existing Network
9.2 – Adding MXK10 loggers to an existing network This situation is ideal for a team with multiple drivers and staff members and is desired to communicate with one or more AiM devices using the same PC network. Each MXK10 logger can have its password that adds another security and privacy level to the network. - Page 40 To complete this procedure use Race Studio 3 software as here explained. Here above is shown a device “MXK10 ID 74000105” that switched from AP to WLAN mode (Existing Network). Network name is “network_2” and does not work with free access because is protected by a password.
- Page 41 To obtain connectivity on the device the PC has to be authenticated to the same network as shown here below. When the PC is authenticated to the network called “network_2” it can see all devices you configured to access the same network. In the image below three AiM devices are connected to the same “network_2” WLAN. 41 ...
-
Page 42: Wi-Fi Network Settings
9.3 – Wi-Fi network settings In this chapter is a short description of how to configure a WLAN including AiM devices and a PC. Here below is an example of configuration. For better network performances we suggest the use of a network device equipped with a DHCP server and using 3x3 MIMO technology like, for example a Linksys AS3200. -
Page 43: The Internet Connectivity
192.168.0.1 – 6 9.4 – The Internet connectivity For an optimal speed of AiM device(s) it is recommended not to allow the Internet on the same network and to set the WLAN in the same way. The Internet access can of course be allowed on the network but this would degrade the communication. - Page 44 9.6 – Working on Mac with virtualized Windows Race Studio 3 only works on Windows operative systems; Mac users can use a virtualized Windows machine. The main problem is that the host OS (Mac) must share its Wi-Fi interface with the virtualized operative system (Windows) as Ethernet interface and not as Wi-Fi interface.
- Page 45 To ensure that the communication works select “Open Network preferences…” menu. Verify that the status in the window that shows up is “Connected” and that the IP address associated is, for example, 10.0.0.10 (could be 10.0.0.11, 10.0.0.12, or generically 10.0.0.x). To enable Race Studio 3 correctly working on a Mac with virtualized Windows ...
-
Page 46: Connected Device Visualization Issues
This is why we always suggest using an Wi-Fi (WLAN) router. This router work as an Access Point allowing more external devices to connect to its network. MXK10 logger Wi-Fi configuration is to be set on Existing Network as explained before. -
Page 47: New Firmware Upgrade
10 – New firmware upgrade Our technicians and engineers are constantly working to improve both the firmware (the application that manages the device) and the software (the application installed on the PC). Each time a new firmware and/or software version is available the icon here above appears with an arrow indicating that something is available for download (otherwise the icon only shows the cloud).
