ATD Tools ATD-5062 Owner's Manual

Self priming vertical lift pump with
exceptional chemical resistance
Pump body made of 316 Stainless
Steel
PTFE piston makes it suitable for
use with wide variety of media
Pump includes a 2" bung adaptor
with dual threads for use with metal
and plastic drums
Integrated lock nut for attaching
grounding wires
Designed for use with 55 gallon
(205 liter) drums
Flow control tube can be inserted
into lift handle to restrict the flow
rate
RECOMMENDED USE
Photographic chemicals / Solvents,
Diesel, Kerosene, Thinners, Acetone,
Benzene, Naptha, Urea, DEF,
Adblue, Light oil (up to SAE 40) etc.
DO NOT USE WITH
Heavy oils
FEATURES
STAINLESS
FLOW RATE
UP TO
25 OZ. (750 ML) / STROKE
SPECIFICATIONS
PUMP TYPE Vertical Lift
MAX. VISCOSITY SAE 40
ADAPTER TYPE 2"
MAX. TEMPERATURE 60° C (140°F)
ATD-5062

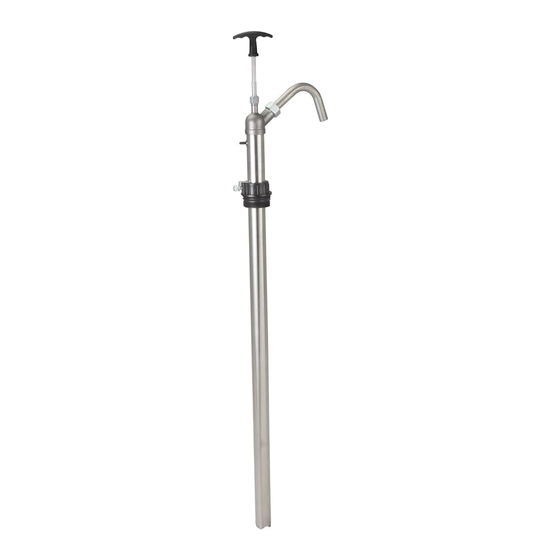

Stainless Steel Vertical Lift Pump
Owner's Manual
STEEL
WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer,
birth defects or other reproductive harm. Wash hands after handling.
Vertical Lift
Handle
Outlet Spout
Lock nut for
grounding wires
Bung adaptor with
dual threads
Suction Tube
An extra set of spare seals and flow control
tubes included with each pump
1
