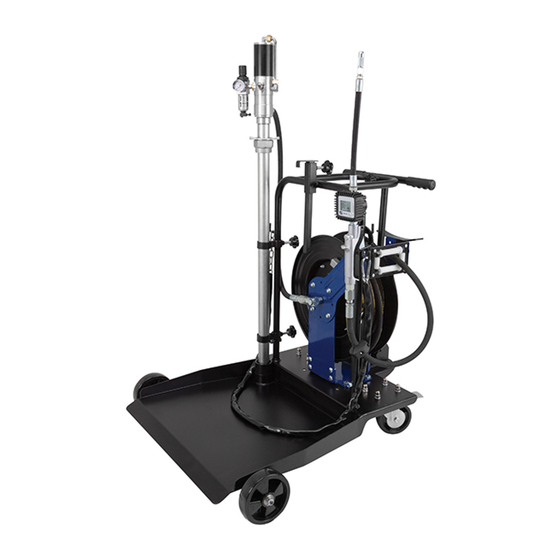

ATD Tools ATD-5226 Instruction Manual

Trolley Mounted
Oil Pump Kit
Trolley mounted kits
are ideal for use in
workshops, garages,
shop floors providing
complete portability
for everyday oiling jobs
Designed for use with
55 gal. (205 Litre) Oil
Drums, these come
complete with
1. 3:1 Air Operated Oil
Pump with 2" Bung
2. Oil Hose Reel with
10m (30') x 1/2" Oil
Hose
3. Digital Oil gun with
Flexible Hose &
Manual Non Drip Tip
WORKING AIR MAX. AIR
PRESSURE PRESSURE
30-50 PSI 150 PSI
(2-10 BAR) (10 BAR)
SPECIFICATIONS
PUMP TYPE
FLOW RATE (AT PUMP OUTLET)
WORKING PRESSURE
MAXIMUM AIR INLET PRESSURE
MAXIMUM MEDIA OUTLET PRESSURE
AIR INLET CONNECTION
PUMP OUTLET CONNECTION
AIR CONSUMPTION
MAX. VISCOSITY OF OIL
MAX. DISTANCE
HOSE REEL
CONNECTING HOSE
OIL CONTROL GUN
POWER SOURCE FOR METER
MEASURES IN
LEAST COUNT
ACCURACY
REPEATABILITY
MAX. RESETTABLE BATCH TOTAL
MAX. NON RESETTABLE TOTALIZER
AIR CONTROL UNIT
NOISE LEVEL
4. Drum Trolley with
chain to hold the
drum
5. 1/4" Miniature
Filter-Regulator
combination
6. Hose for connecting
pump outlet to reel
inlet
Kit comes in CKD form
& can be assembled
quickly.
Trolley can be locked
with brakes provided
on the wheels
Air Operated 3:1
Up to 14 LPM (3.70 GPM)
2-10 BAR (30-150 PSI)
10 BAR (150 PSI)
30 BAR (450 PSI)
1/4" (F)
1/2" (F)
230 LPM (61 GPM)
SAE 130
Upto 30 metres (98.5 ft.)
Oil Hose reel (Dual Arm) complete with 10m (30') x 1/2" ID Rubber Hose
Rubber Hose 1.5m ( 5') x 1/2" ID
Aluminum Body gun with protective rubber shroud, 1/2" Swivel & Digital Meter.
Includes Flexible Hose with Manual Non Drip nozzle.
2 x 1.5 V Alkaline batteries (size 1N)
Litres, Quarts, Pints & Gallons
0.001 units
+- 0.50 %
+- 0.30 %
99,999 units
9,99,999 units
Miniature 1/4" Air Filter-Regulator combination with Pressure Gauge, 40
Micron Filter, 20 CFM (550 LPM)
81 db

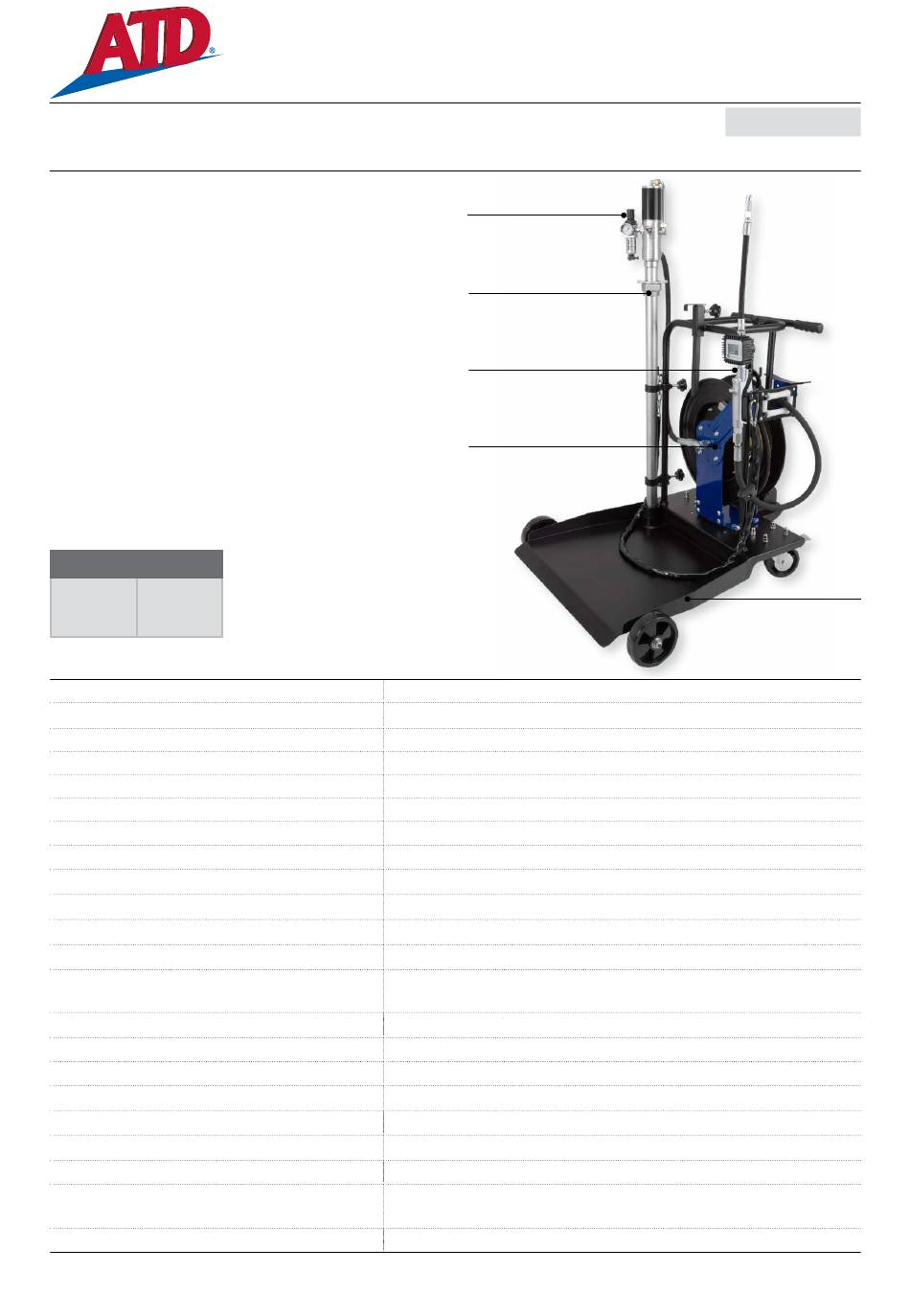

INSTRUCTION MANUAL
Filter, Regulator
Combination with
Pressure Gauge
Ratio Pump
Assembly
Oil Control
Gun
Hose
Reel
S2780, Rev A
ATD-5226
Trolley
ATD5226_rev_0821
