8-4. Operation Check

8-4-1. How to enter into Operation Check Mode
It is recommended to perform FULL RESET with the unit to delete the data saved in D-RAM before this
check.
To enter into this check Mode, perform the operation described in item 18 of 8-2-1 or item 7 of 8-2-2 after
installation of diagnostic program.

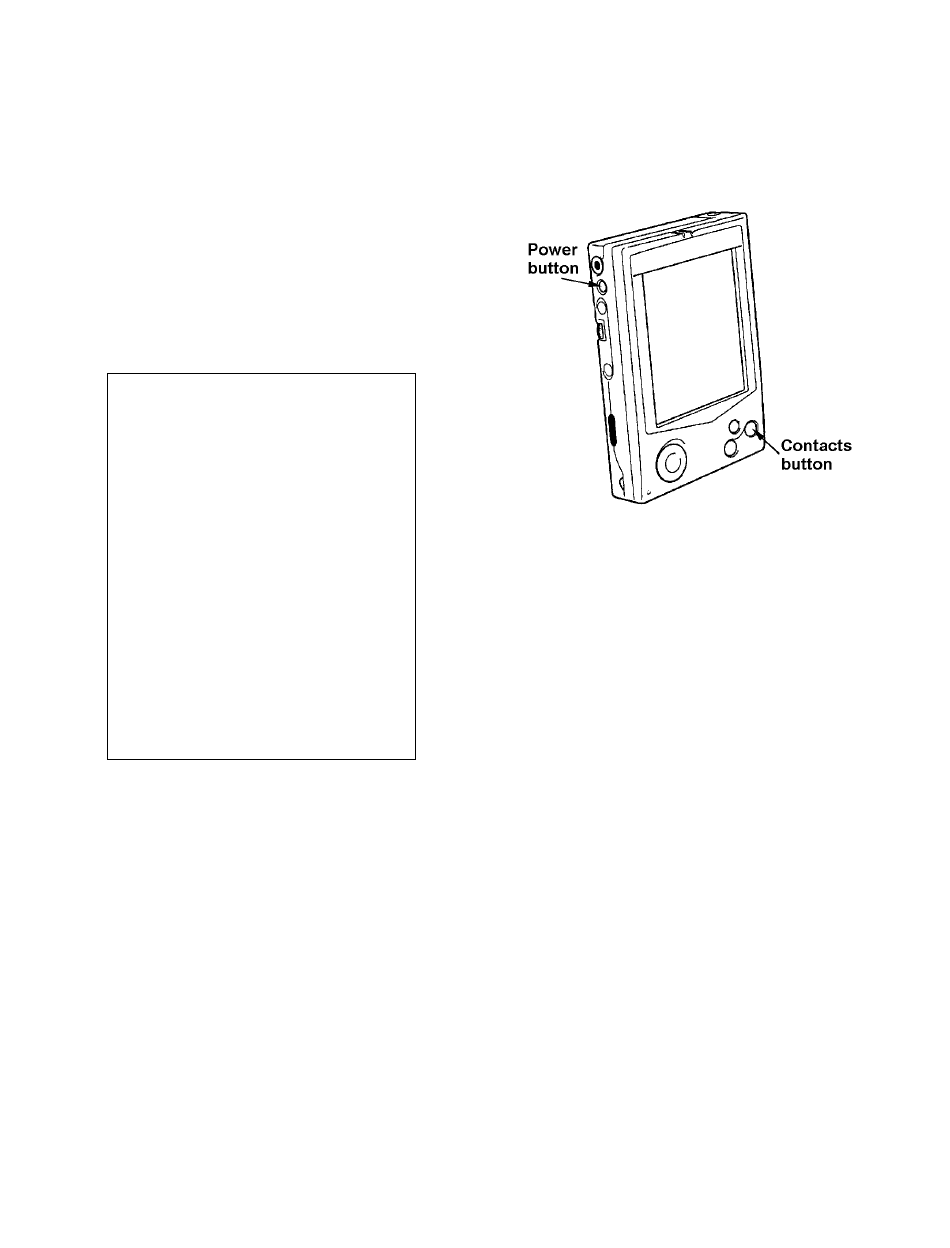

Or, after the installation of diagnostic program using
the operation described in 8-2-2, press Contacts
button over 3 seconds while holding down Power
button until below Operation Check Main Menu
appears.
After performing one of the operations described
above, the following Main Menu display for
Operation Check appears on the screen.
** Main Menu **
1 DISPLAY
2 TOUCH PANEL
3 MEMORY
4 SERIAL
5 POWER CONTROL
6 AUDIO
7 Others
8 COLOR BAR
9 VOLTAGE Write
AD Code = #####
CPROG Rev. 1.01 for Jx-650
In case of E-125 unit, It is recommended not to pull out CF card installed the diagnostic program during
this check if using this CF card.
8-4-2. Operation Check
If the unit is locked during this check, enter into this check mode again after perform RESET or
FULL RESET operation.
8-4-2-1. Display Check
1. Tapping above 1 DISPLAY on the screen using a stylus, the red screen appears.
2. Tapping the screen, the green screen appears.
3. Tapping the screen again, the blue screen appears.
4. Tapping the screen again, the white frame display appears.
5. Tapping the screen again, the black frame display appears.
6. Tapping the screen again, no display appears.
7. Tapping the screen again, Main Menu display appears.
Note: Generally, diagnostic program revision No. may be
changed without prior notice in future due to mass
production convenience.
