General Guide
CompactFlash™ Card Slot
(Type II compatible)
Plug in a CompactFlash card
slot for communications and
data storage modules.
Charge Indicator (Amber/Green)
Lights amber when the battery pack is
charging and turns green when
full charge is achieved.
Indicator Lamp (Red)
Alerts you to alarms and warning.
Perform operations and input
data by tapping and writing
directly on the screen.
Program Buttons
Press to launch the assigned program.
Speaker
Cursor Button
Moves the cursor around the screen.
Microphone
AC Adaptor Terminal
It can also be used to recharge a
Pocket PC.
Serial Connector
For connection of the cradle,
the CASSIOPEIA USB cable,
or the RS-232C cable.
Easy One Hand Operation
The Action Control on the side of the CASSIOPEIA provides quick and easy operation with a flick of your thumb. Rotate the Action
Action Control
Control to select a menu item or other items and then press to execute. Access the file you want to play in an instant!
Included:
USB Cradle, Rechargeable Battery Pack, AC Adaptor, Soft Case, CD-ROM
Options
Digital Camera Card
JK-710DC
RS-232C Cradle
JK-512CR
USB Cradle
USB Cable
JK-516CR
JK-582CA
ActiveSync
®
3.1 System Requirements
Minimum Desktop Computer Requirements
®
®
®
• Microsoft
Windows
2000, Windows NT
Workstation 4.0 with Service Pack 3 or greater, or Windows 95/98 (U.S.Version)
®
• Desktop computer with a Pentium
processor for Windows NT (166MHz required for Windows 2000)
• Desktop computer with a 486/66 DX or higher processor (Pentium P90 recommended) for Windows 95/98
• 16 MB of memory for Windows 95/98 (more memory will give improved performance) or
Windows NT Workstation 4.0 (32 MB recommended for Windows NT, 64 MB recommended for Windows 2000)
• Hard disk drive with 10 to 50 MB of available hard disk space (actual requirements will vary based on selection of
features and user's current system configuration)
• Available 9 or 25- pin communications port (adaptor required for 25- pin communication port), or Infrared port,
or USB port (available for Windows 95/98 or Windows 2000 only)
• One CD-ROM drive
• VGA graphics card or compatible video graphics adaptor at 256 colour or higher
• Keyboard
• Microsoft Mouse or compatible pointing device
Options for Windows 2000, Windows NT Workstation 4.0 or Windows 95/98
• Audio card/speakers for sound
• Microsoft Office 95 or Microsoft Office 97 or Microsoft Office 2000
• Modem for remote synchronization
• Ethernet LAN connection for remote synchronization
Requirements for Mobile Channels or Mobile Favourites Support
Microsoft Internet Explorer 4.0 or higher. Internet Explorer 5.0 is included on the CD, which requires 56 -98MB of hard disk space.
Requirements for Microsoft Outlook
®
2000
Microsoft Outlook 2000 requires 153 MB of disk space for a full installation. 24 MB system RAM recommended.
*Your CASSIOPEIA comes with a USB cable for connecting it to a computer.
If your computer does not support USB connection, it is up to you to purchase the required cable.
* This device is intended for viewing still images and movie format files and for listening to audio and music files only for your own personal enjoyment. Such files are normally protected by copyright law and by international treaties. You may not otherwise reproduce, distribute,
publicly perform, publicly display, or create derivative works of such files, unless authorized by the appropriate copyright owner.
*This CASSIOPEIA E-125 is the U.S. Version. *All the display samples in this brochure are reproduced by composite pictures.
*CASIO is a registered trademark and CASSIOPEIA is a trademark of CASIO COMPUTER CO., LTD.
Microsoft, Windows, Windows NT, Windows Media, ActiveSync and Outlook are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Pentium is a registered trademark of Intel Corporation.
Other product and company names mentioned herein may be trademarks of their respective owners.
*Designs and specifications are subject to change without notice.
SA0008
Stereo Headphone Jack
For connection of a commercially available
earphone/headphone (o 3.5mm)
Power Button
Turns power on and off.
Start Button
Press to display the Start menu.
Action Control
Easy One Hand Operation
See "
Record Button
Voice memo recording is activated
as long as you hold down this button.
Infrared Port
Infrared data communication capabilities
let you exchange data between two units,
or with a computer that supports infrared
data communication.
Rechargeable Battery Pack
Scroll Up Down
Cursor movement
Press
Item select
Stylus Pen ( 2)
JK-810ST2
RS-232C Cable
AC Adaptor
JK-580CA
AD-C59200G
Rechargeable
Battery
Car Adaptor
Screen Protector ( 5)
JK-210LT
JK-210CA
Specifications
Display: 240
320 dots, TFT Colour LCD (65,536 colours)
CPU: VR4122
Memory: 32 MB
Interfaces:
Serial: RS-232C, 115.2 kbps max.
Infrared: IrDA Ver.1.2, 115.2 kbps (max.) Range: 20 cm max.
USB (Client)
Card Slot: CompactFlash card, 3.3V Type I/ Type II
Headphone Jack: o3.5 mm stereo output (Accepts monaural earphone, stereo earphones/ headphones.)
Power Supply:
Main: Rechargeable battery pack JK-210LT (Lithium-Ion battery) AC adaptor (AD-C59200)
Backup: One CR2032 lithium battery
Power Consumption: 4.0W
Approximate Battery Life (Normal Temperature)
Main: (Actual time may be shorter due to conditions when charging.)
8 hours: Continuous input and data display at a ratio of 1:10, with screen brightness at lowest possible level.
*Even when the unit is turned off, small amounts of power are required to retain memory contents, etc.
This can cause batteries to go dead even when you do not use the unit.
*The actual amount of operation time that can be expected from batteries depends on operating conditions,
settings, and other variables.
Backup: 5 years: Main battery is charged or replaced immediately after appearance of message to replace main battery.
1 week: No battery replacement after appearance of message to replace main battery.
Approximate Charge Time (Normal Temperature)
5 to 6 hours: Charge time is longer for the first charges after purchasing the unit or installing a new battery pack.
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Dimensions: 20H
83.6W
131.2D mm
Weight: Approximately 250g
".
T
he New CASSIOPEIA Provides
Extra Potential for Your Business.
JK-811PS5
Even when you are out of your office,
Even when you are out of your office,
CASIO's new colour pocket PC E-125 puts
CASIO's new colour pocket PC E-125 puts
the power of a desktop PC in your hands.
the power of a desktop PC in your hands.

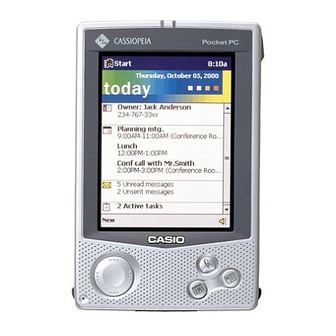

Colour Pocket PC E-125
Colour Pocket PC E-125
