Summary of Contents for Antunes DCH-220 SQ

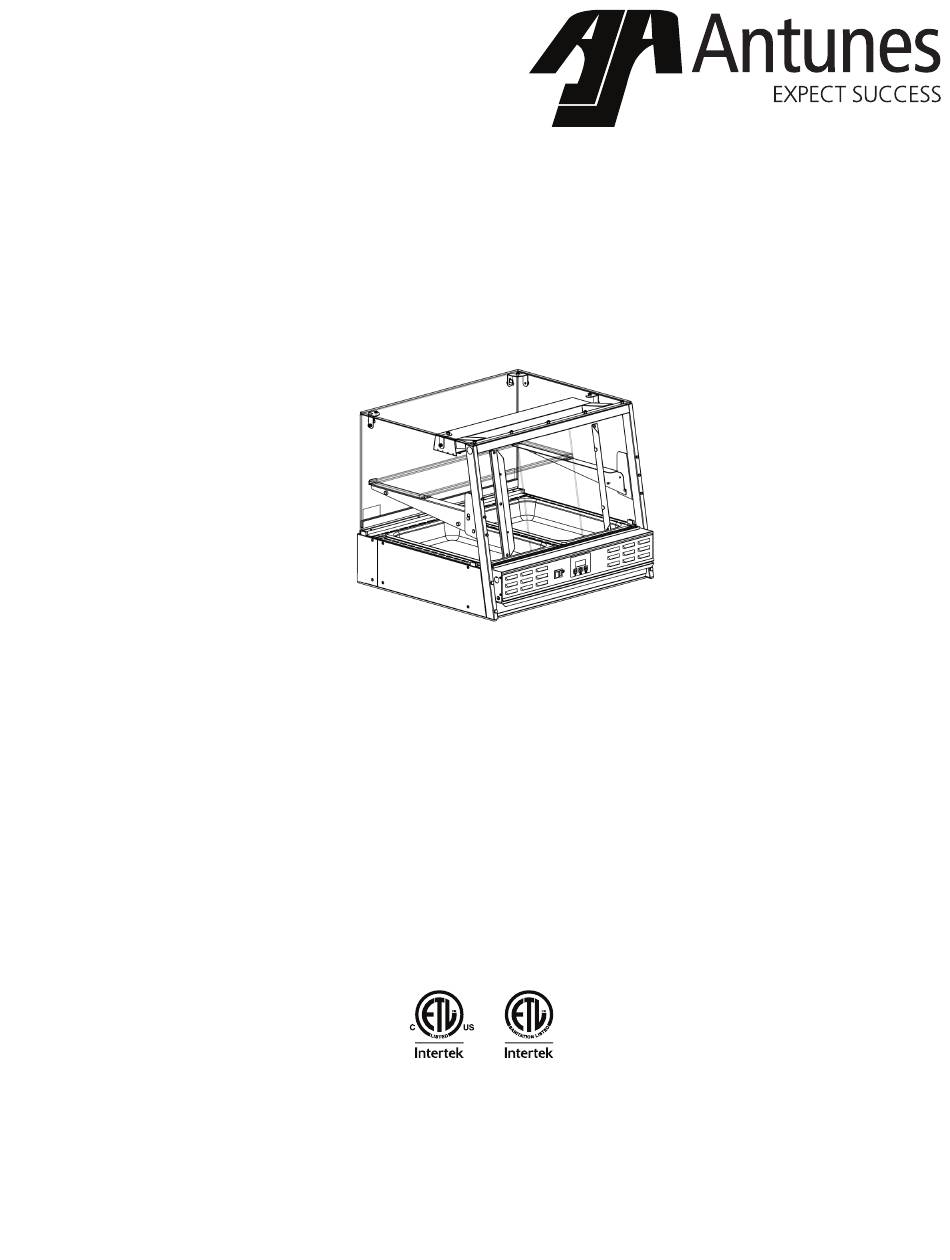

- Page 1 ® DCH-220 SQ Display Cabinet Heated Owner’s Manual Manufacturing Numbers: 9500731 & 9500732 www.antunes.com P/N 1012041 Rev E 08/23...
-
Page 2: Table Of Contents
Safety Information ........ 3 tion or operation of this product, contact holding times by reducing moisture loss. Installation ..........3 Antunes Technical Service toll free at Models DCH-100, DCH-200, and DCH- Operation ..........3 +1-877-392-7854. 300 are primarily for meats and poultry Maintenance.........3... -
Page 3: Safety Information
Contact only for its intended use as a damaged cord or plug, or if Antunes Technical Service described in this manual. it is not working properly. for adjustment or repair. y All electrical connections must... -
Page 4: Heated Display Cabinet Glass Warnings
Heated Display Cabinet Glass Warnings (DCH Models) Please follow the Safety Instructions below in order to reduce the chance of damaged/broken glass: Warning: Mishandling this product or failure to follow these instruc- tions may result in shattering glass. DO NOT scratch, chip, or nick the glass. DO NOT place any metal objects in contact with the glass (merchandise holders, signs, etc.). -
Page 5: Specifications
Specifications Dimensions Electrical Ratings CAUTION Model & All electrical connections must be in Volts Watts Amp. Mfg. No. accordance with local electrical codes and any other applicable codes. DCH-220 1800 15.0 50/60 9500731 WARNING DCH-220 1800 50/60 ELECTRICAL SHOCK HAZARD. 9500732 Failure to follow the instructions in this manual could result in serious injury or... -
Page 6: Installation
Open the large box. Remove all packing materials and protective coverings from the unit and parts. NOTICE: If any parts are missing, con- tact Antunes IMMEDIATELY at 1-877-392-7854 in the U.S., or 630-784-1000 outside the U.S.. Wipe all surfaces of the unit with a hot damp cloth. -
Page 7: Operating & Programming
Operating & Control Panel Key Pad NOTE: Back of unit shown Programming NOTICE: The Setpoint temperature is the desired cabinet temperature setting. When the Temp UP button is pressed and held (and provided that the unit is up to TEMP TEMP TEMP temperature), the actual cabinet... -
Page 8: Maintenance
Maintenance Parts Replacement Rear door replacement Turn unit off, unplug the power cord, Be sure to follow all of the warnings and Halogen Bulb Replacement and allow the unit to cool to room precautions listed in the Important Safe- temperature. CAUTION ty Information section of this manual. -
Page 9: Front Glass Panel Replacement
Front glass panel replacement Front Nylon Glass Turn the unit OFF, unplug the power Spacer cord from the electrical outlet, and allow the unit to cool to room tem- perature before proceeding. Turn the two security paddles to align with the slot of brackets at each corner (Figure 7). -
Page 10: Display Codes
Display Codes This section describes the different display codes and their meanings. “LO” flashes during the initial warm up period. The unit continues to display this code until the unit reaches the setpoint temperature. When the unit reaches the setpoint temperature, it displays the setpoint temperature. -
Page 11: Operations And Programming
Operations and Programming IMPORTANT: All models of the DCH- 220 have a temperature range of 100°-165°F (38°-74°C) which is below the safe holding tem- perature for some foods. Only non-potentially hazardous food should be held in these units. NOTICE: The Setpoint temperature is the desired temperature setting. -
Page 12: Troubleshooting
Troubleshooting WARNING To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equipment should be performed by qualified service personnel. The unit should be unplugged when servicing. Problem Possible Cause Corrective Action Power cord is not plugged in. Plug the power cord into the appropriate outlet. -
Page 13: Replacement Parts Sheet 1
0700451 Power Cord (120V) (Not Shown) NOTE 0700453 Power Cord (230V) (Not Shown) Use only genuine Antunes replacement parts in this display 0400354 90° Strain Relief (Not Shown) cabinet. Use of parts other than those supplied by the 4060252 Quartz Halogen 100w manufacturer will void the warranty. -
Page 14: Replacement Parts Sheet 2
Replacement Parts Exploded Diagram 1 NOTE: 120V & 230V share same components as shown NOTE: Mirrored side of glass panel goes towards food and the customer. P/N 1012041 Rev E 08/23 ®... - Page 15 Replacement Parts Exploded Diagram 2 See Detail A Detail A P/N 1012041 Rev E 08/23 ®...
-
Page 16: Wiring Diagram
Wiring Diagram DCH-220 (120V) SQ DCH-220 120V P/N 1012041 Rev E 08/23 ®... -
Page 17: Notes
Wiring Diagram DCH-220 (230V) SQ DCH-220 230V P/N 1012041 Rev E 08/23 ®... -
Page 18: Limited Warranty
Agency is not covered under this warranty and is the responsibility of the end user. Antunes reserves the right to make changes in design or add any improvements on any product. The right is al- ways reserved to modify equipment because of factors beyond our control and government regulations. Chang- es to update equipment do not constitute a warranty charge.
