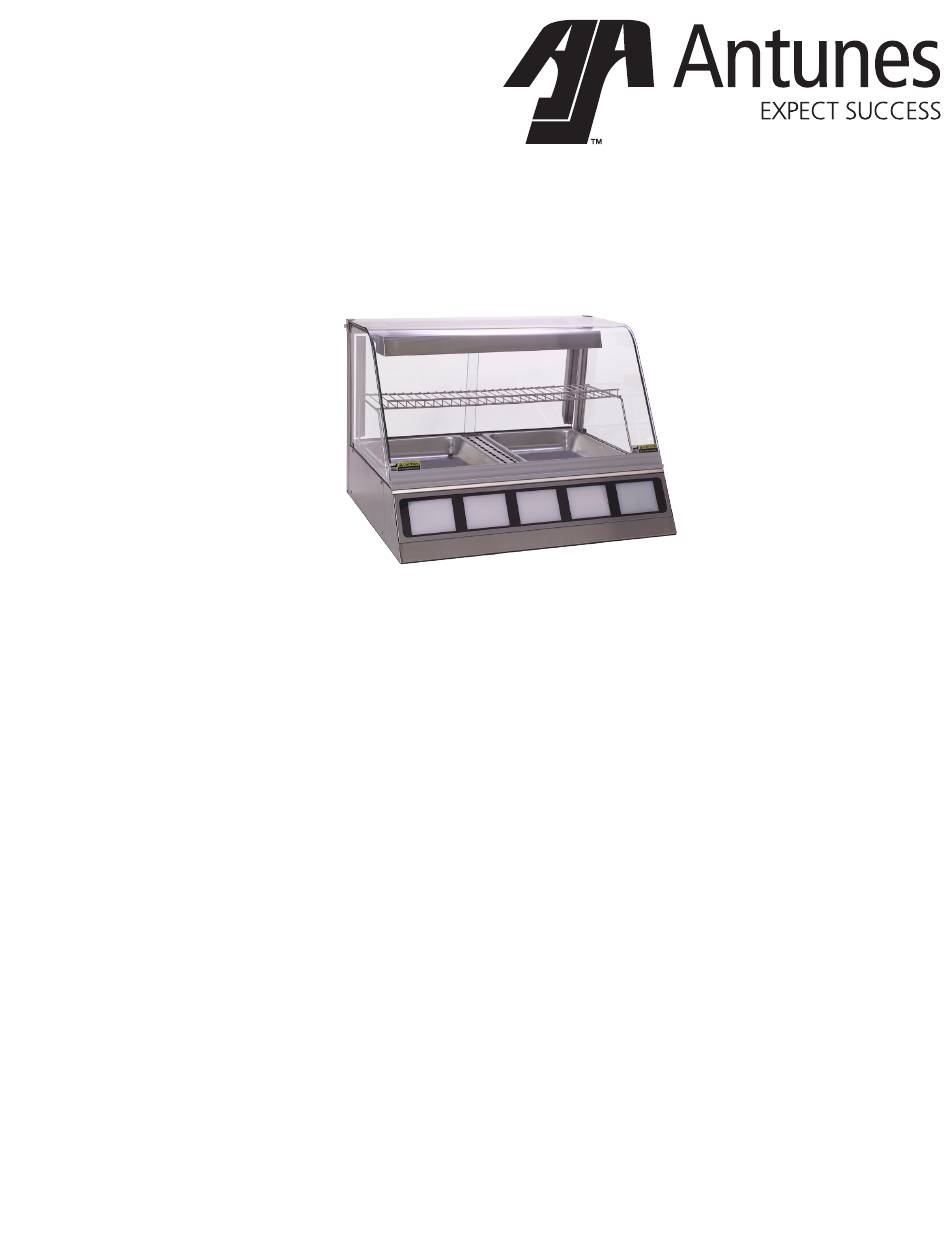

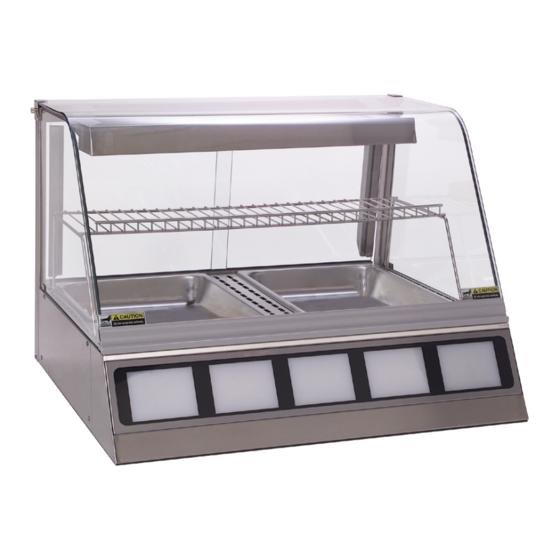

  • Page 1 DCH-100/200/300 DCH-120/220/320 Toasters Heated owner’s manual Manufacturing Numbers: 9500500, 9500510, 9500512, 9500520, 9500530, 9500531, 9500532, 9500533, 9500534, 9500535, 9500536, 9500537, 9500538, 9500540, 9500550, 9500551, 9500552, 9500553, 9500554, 9500556, 9500557, 9500559 P/N 1010772 Rev. H 05/18 www.antunes.com...

  • Page 2: Table Of Contents

    Overview Content Service/Technical Assistance Overview The Antunes Display Case attrac- Before Use tively displays your food and main- In Case of Damage In Case of Damage tains it at ready-to-eat temperature. Website A convection fan (some models) If any parts are missing or damaged,...

  • Page 3: Safety Information

    Do not operate the heated toaster Contact Antunes Technical if it has been damaged or dropped, y Install and locate the equipment Service for adjustment or repair.

  • Page 4: Heated Toaster Glass Warnings

    Heated Toaster Glass Warnings (DCH Models) Please follow the Safety Instructions below in order to reduce the chance of damaged/broken glass: Warning: Mishandling this product or failure to follow these instruc- tions may result in shattering glass. DO NOT scratch, chip, or nick the glass. DO NOT place any metal objects in contact with the glass (merchandise holders, signs, etc.).

  • Page 5: Specfications

    Specfications Temperature Ranges Capacities DCH-100/DCH-120 DCH-100: 150°-165°F (66°-74°C) y One 2-1/2” (63.5 mm) deep full size steam table pan. DCH-120: 100°-165°F (38°-74°C) y One water tray (some models) at 4 quarts (3.8 liters). DCH-200: 150°-165°F (66°-74°C) y One Crumb Tray (some models).

  • Page 6: Electrical Ratings

    9500535 DCH-220HC 220-240 2000 50/60 9500536 DCH-220CT 1800 15.0 50/60 Model Designation 9500538 DCH-300CT 1800 15.0 50/60 DCH-100 9500540 DCH-120 TYPE OF POWER CORD DCH-320CT 1800 15.0 50/60 DCH-200 9500550 H = HARMONIZED DCH-220 C = COMMERCIAL DCH-320CT 1800 15.0...

  • Page 7: Installation

    Crumb Tray (some models) cloth. Wring out before use. Do NOT use with Water 4. Install components in unit. Figure 1. Display Components (DCH-100 Shown) Equipment Setup When placing the unit into service, pay attention to the following guide- lines:...

  • Page 8: Operations And Programming

    Temp Up or Temp Down buttons WITHOUT water. to raise or lower the setpoint temperature. Release when the display shows the desired temperature. Figure 2. Filling Water Tray (DCH-100 shown) Figure 4. Loading Food (DCH-100 Shown) P/N 1010772 Rev. H 05/18...

  • Page 9: Daily Cleaning

    Maintenance Parts Replacement Front Display Graphics/ Bulb Replacement Be sure to follow all of the warnings Halogen Bulb Replacement and precautions listed in the Import- 1. Turn the Rocker Switch (Power CAUTION ant Safety Information section of On/Off) to OFF this manual.

  • Page 10: Rear Door Replacement

    Rear Door Replacement Side Glass Replacement CAUTION DCH-100/120 Models 1. Turn the unit OFF, unplug the Front glass panel replacement power cord from the electrical should be performed by two 1. Turn the Rocker Switch (Power outlet, and allow the unit to cool people to prevent damage to the On/Off) to OFF.

  • Page 11: Display Codes

    Display Codes This section describes the different display codes and their meanings. “LO” flashes during the initial warm up period. The unit continues to display this code until the unit reaches the setpoint temperature. When the unit reaches the set- point temperature, it displays the setpoint temperature.

  • Page 12: Troubleshooting

    Troubleshooting WARNING To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip- ment should be performed by qualified service personnel. The unit should be unplugged when servicing. Problem Possible Cause Corrective Action No heat, no display, and the Power cord is not plugged in.

  • Page 13: Replacement Parts – Dch-100/120

    Replacement Parts – DCH-100/120 49 15 47 18 P/N 1010772 Rev. H 05/18...
  • Page 14 Replacement Parts List DCH-100/120 Item Part # Description Qty. Item Part # Description Qty. 7000365 Front Glass Panel Assy 0800316 Guard, Lamp 0021057 Inner Lamp Housing Weldment 0400251 Strain Relief w/ Locknut 0011107 Resistor Assy. 306P101* Nut, Hex, #6-32, SS...

  • Page 15: Replacement Parts – Dch-200/220

    Replacement Parts – DCH-200/220 50 18 P/N 1010772 Rev. H 05/18...
  • Page 16 Replacement Parts List DCH-200/220 Item Part # Description Qty. Qty. Qty. Qty. DCH-200 DCH-220 DCH-220 DCH-220 120V 120V 230V Mfg. # 9500533 7000366 Front Glass Panel Assy. 0020675 Inner Lamp Housing Weldment 0010706 Resistor Assy., 120V 0010644 Resistor Assy., 220V 0502895 Housing, Lamp 9020459...
  • Page 17 2 Nylon Slide Side Glass Stoppers (P/N 2180179) y 2 Thumbscrews (P/N 3080159) y Installation Instructions (P/N 1010828) NOTICE Use only genuine Antunes re- placement parts in this display cabinet. Use of parts other than those supplied by the manufactur- er will void the warranty.

  • Page 18: Replacement Parts – Dch-300/320

    Replacement Parts – DCH-300/320 50 18 P/N 1010772 Rev. H 05/18...
  • Page 19 Replacement Parts List – DCH-300/320 Item Part # Description Qty. Item Part # Description Qty. 7000367 Front Glass Assy. 0502556 Deflector, Heat 0020676 Inner Lamp Housing Weldment 4060252 Bulb-Quartz Halogen 100W Inner Lamp Housing Weldment 0020675 4060189 Bulbholder, Quartz Mfg. No. 9500553 0800229 Guard, Lamp 0010706...

  • Page 20: Wiring Diagrams

    Wiring Diagrams DCH-100/120 (120 Volt Units) DCH-200/220 (120 Volt Units) POWER POWER CORD CORD *14 GA. TFE 200° *14 GA. TFE 200° #18 GA. TFE 200° #18 GA. TFE 200° #BLK TERMINAL #BLK TERMINAL BLOCK #1 BLOCK #1 #BLK #BLK...
  • Page 21 Wiring Diagrams (Continued) DCH-320 (230 Volt Units) POWER CORD *14 GA. TFE 200° #18 GA. TFE 200° #BLK TERMINAL BLOCK #1 #BLK *GRN *BLK *BLK #WHT S.S. *WHT POWER RELAY SWITCH TRANSFORMER TEMPERATURE CONTROLLER THERMISTOR HEATER #WHT RESISTOR RESISTOR QUARTZ QUARTZ LAMP LAMP...

  • Page 22: Limited Warranty

    Authorized Service Agency is not covered under this warranty and is the responsibility of the end user. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations.
