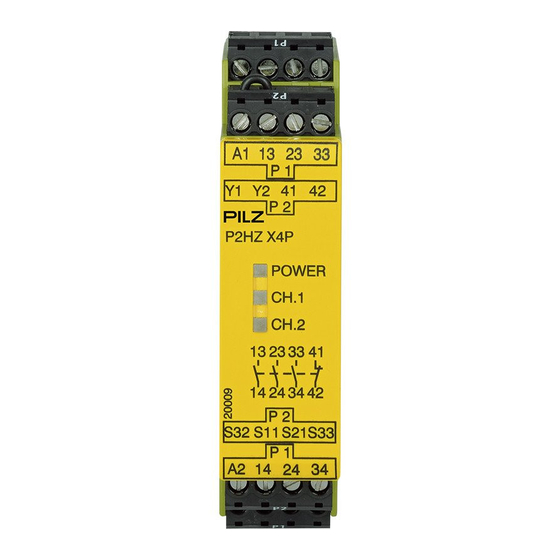

Pilz P2HZ X4P Operating Manual
Safety relays
Hide thumbs
Also See for P2HZ X4P:
- Operating manual (21 pages) ,
- Operating instructions manual (20 pages) ,
- Operating instructions manual (20 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pilz P2HZ X4P
Summary of Contents for Pilz P2HZ X4P
- Page 1 P2HZ X4P Operating Manual-20076-EN-11 - Safety relays...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Timing diagram .........................11 Installation ..........................11 Wiring ............................12 Preparing for operation ......................13 Operation ..........................13 Status indicators........................14 Faults – Interference ......................14 Dimensions in mm .........................14 Technical details ........................15 Safety characteristic data......................19 Supplementary data .......................20 Service life graph ........................20 Operating Manual P2HZ X4P 20076-EN-11... - Page 4 Contents Order reference ........................21 EC declaration of conformity ....................21 UKCA-Declaration of Conformity ..................21 Operating Manual P2HZ X4P 20076-EN-11...
-
Page 5: Introduction
P2HZ X4P Introduction Validity of documentation This documentation is valid for the product P2HZ X4P. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 6: Safety
This gives advice on applications and provides information on special fea- tures. Safety Intended use The two-hand control relay P2HZ X4P meets the requirements of EN ISO 13851 Type IIIC and EN 60204-1. It forces an operator to keep his hands out of the hazardous area during the dangerous movement. -
Page 7: Safety Regulations
Disposal In safety-related applications, please comply with the mission time T in the safety-related characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual P2HZ X4P 20076-EN-11... -
Page 8: For Your Safety
The safety function remains effective in the case of a component failure. The circuit prevents a further press stroke in the case of: – Relay failure – Contact welding – Coil defect on a relay – Open circuit – Short circuit Operating Manual P2HZ X4P 20076-EN-11... -
Page 9: Block Diagram/Terminal Configuration
III), Protective separation (overvoltage category II) Types: AC : 24 VAC; Order no. 777354 *Insulation between the non-marked area and the relay contacts: Basic insulation (over- voltage category III), Protective separation (overvoltage category II) Operating Manual P2HZ X4P 20076-EN-11... -
Page 10: Function Description
P2HZ X4P Function Description The two-hand control relay P2HZ X4P is activated by simultaneously pressing the two oper- ator elements (simultaneity see Technical details [ 19]). If one or both of the operator elements are released, it interrupts the control command to close the press. The device is ready for operation when the supply voltage is applied and the feedback loop Y1-Y2 is closed. -
Page 11: Timing Diagram
You must maintain the minimum distance in accordance with EN ISO 13855. Depending on the application, serious injury or death may result. Operating Manual P2HZ X4P | 11 20076-EN-11... -
Page 12: Wiring
The supply voltage must be switched off with the operating energy of the machine. The connection cables between the P2HZ X4P and the pushbuttons should not be laid directly next to power cables, otherwise inductive and capacitive interference coupling can result. -
Page 13: Preparing For Operation
SIL 2/PL d at least 1x per year NOTICE The safety functions should be checked after initial commissioning and each time the plant/machine is changed. The safety functions may only be checked by qualified personnel. Operating Manual P2HZ X4P | 13 20076-EN-11... -
Page 14: Status Indicators
Safety contacts of channel 2 are closed. Faults – Interference Contact malfunctions: If the contacts have welded, reactivation will not be possible after the input circuit has opened. Dimensions in mm * with spring-loaded terminals Operating Manual P2HZ X4P | 14 20076-EN-11... -
Page 15: Technical Details
25 mA 30 mA 30 mA Relay outputs 777354 777355 787355 Number of output con- tacts Safety contacts (N/O), instantaneous Auxiliary contacts (N/C) 1 Max. short circuit current 1 kA 1 kA 1 kA Operating Manual P2HZ X4P | 15 20076-EN-11... - Page 16 240 V AC G. P. 240 V AC G. P. with current Voltage 24 V DC Resistive 24 V DC Resistive 24 V DC Resistive with current Pilot Duty B300, R300 B300, R300 B300, R300 Operating Manual P2HZ X4P | 16 20076-EN-11...
- Page 17 93 % r. h. at 40 °C 93 % r. h. at 40 °C Condensation during op- eration Not permitted Not permitted Not permitted EN 60947-5-1, EN EN 60947-5-1, EN EN 60947-5-1, EN 61000-6-2 61000-6-2 61000-6-2 Operating Manual P2HZ X4P | 17 20076-EN-11...
- Page 18 0,5 Nm – Stripping length with screw terminals 8 mm 8 mm – Conductor cross section with spring-loaded termin- als: Flexible with/without 0,2 - 1,5 mm², 24 - 16 crimp connector – – Operating Manual P2HZ X4P | 18 20076-EN-11...
-
Page 19: Safety Characteristic Data
A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual P2HZ X4P | 19 20076-EN-11... -
Page 20: Supplementary Data
To increase the service life, sufficient spark suppression must be provided on all output contacts. With capacitive loads, any power surges that occur must be noted. With DC con- tactors, use flywheel diodes for spark suppression. Operating Manual P2HZ X4P | 20 20076-EN-11... - Page 21 This product/these products meet the requirements of the directive 2006/42/EC on ma- chinery of the European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Representative: Hansjürgen Horter, Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany UKCA-Declaration of Conformity This product(s) complies with following UK legislation: Supply of Machinery (Safety) Regu- lation 2008.
- Page 22 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
