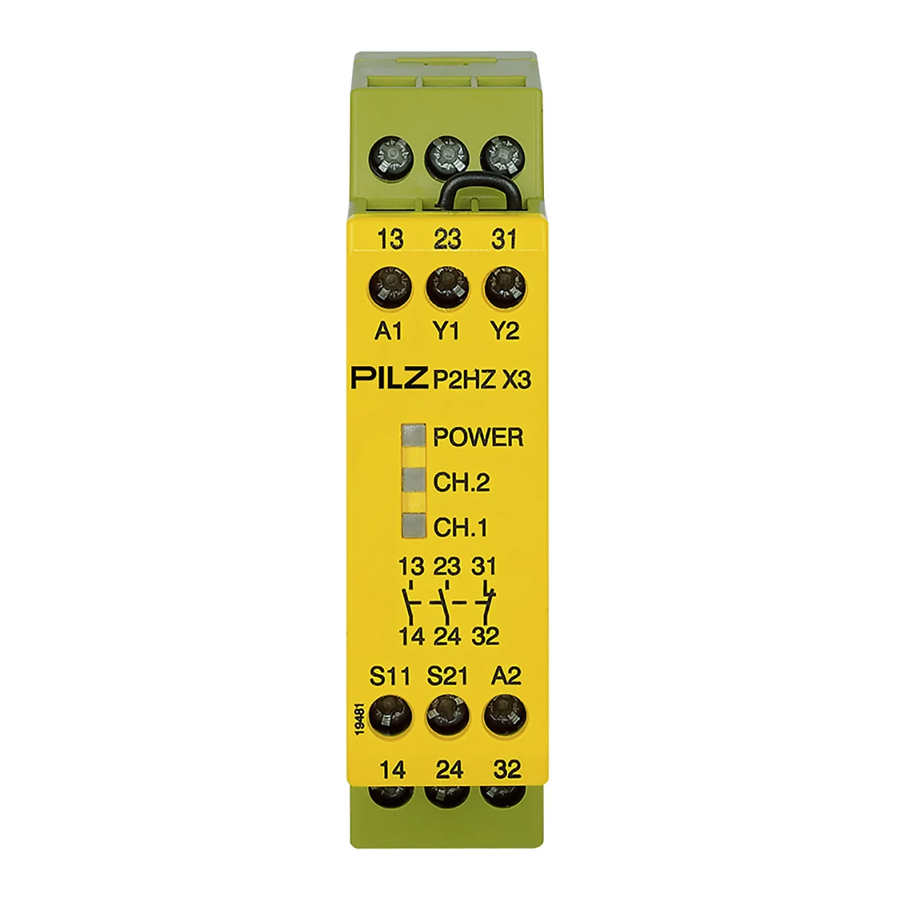

P2HZ X3
}
Safety relays
Operating Manual-19484-EN-06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2HZ X3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pilz P2HZ X3

Summary of Contents for Pilz P2HZ X3

  • Page 1 P2HZ X3 Safety relays Operating Manual-19484-EN-06...
  • Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.

  • Page 3: Table Of Contents

    Function Description Operating modes Timing diagram Installation Wiring Preparing for operation Operation Status indicators Faults – Interference Dimensions in mm Technical details Safety characteristic data Supplementary data Service life graph Order reference EC declaration of conformity Operating Manual P2HZ X3 19484-EN-06...

  • Page 4: Introduction

    P2HZ X3 Introduction Validity of documentation This documentation is valid for the product P2HZ X3. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.

  • Page 5: Safety

    Safety Intended use The two-hand control relay P2HZ X3 meets the requirements of EN 574 Type III C. It forces a press operator to keep his hands out of the hazardous area during the dangerous closing movement, so avoiding hand injuries.

  • Page 6: Use Of Qualified Personnel

    Note for overvoltage category III: If voltages higher than low voltage (>50 VAC or >120 VDC) are present on the unit, connected control elements and sensors must have a rated insulation voltage of at least 250 V. Operating Manual P2HZ X3 19484-EN-06...

  • Page 7: Unit Features

    – Coil defect on a relay – Open circuit – Short circuit Block diagram/terminal configuration *Insulation between the non-marked area and the relay contacts: Basic insulation (over- voltage category III), Protective separation (overvoltage category II) Operating Manual P2HZ X3 19484-EN-06...

  • Page 8: Function Description

    P2HZ X3 Function Description The two-hand control relay P2HZ X3 is activated by simultaneously operating the two oper- ator elements (simultaneity see Technical details [ 15]). If one or both of the operator elements are released, it interrupts the control command to close the press. The device is ready for operation when the supply voltage is applied and the feedback loop Y1-Y2 is closed.

  • Page 9: Installation

    = max. overall cable resistance (see Technical details [ 15]) lmax  / km = cable resistance/km Use copper wire that can withstand 60/75 °C. The supply voltage must be switched off with the operating energy of the machine. Operating Manual P2HZ X3 19484-EN-06...

  • Page 10: Preparing For Operation

    P2HZ X3 The connection cables between the P2HZ X3 and the pushbuttons should not be laid directly next to power cables, otherwise inductive and capacitive interference coupling can result. On account of the low currents you should use gold-plated pushbutton contacts.

  • Page 11: Status Indicators

    Safety contacts of channel 2 are closed. Faults – Interference Contact malfunctions: If the contacts have welded, reactivation will not be possible after the input circuit has opened. Dimensions in mm 75 (2.95") 22,5 87 (3.42") (0,89") Operating Manual P2HZ X3 19484-EN-06...

  • Page 12: Technical Details

    EN 60947-4-1 Utilisation category of safety contacts AC1 at 240 V Min. current 0,01 A Max. current Max. power 1250 VA DC1 at 24 V Min. current 0,01 A Max. current Max. power 125 W Operating Manual P2HZ X3 19484-EN-06...
  • Page 13 External contact fuse protection, auxiliary contacts Max. melting integral 100 A²s Blow-out fuse, quick Blow-out fuse, slow Blow-out fuse, gG Circuit breaker 24 V AC/DC, characteristic B/C Conventional thermal current Contact material AgSnO2 + 0,2 µm Au Operating Manual P2HZ X3 19484-EN-06...
  • Page 14 0,2 - 2,5 mm², 24 - 14 AWG 2 core with the same cross section, flexible without crimp connectors or with TWIN crimp connectors 0,2 - 2,5 mm², 24 - 14 AWG Operating Manual P2HZ X3 19484-EN-06...

  • Page 15: Safety Characteristic Data

    If the service life graphs are not accessible, the stated PFH value can be used irrespective of the switch frequency and the load, as the PFH value already considers the relay's B10d value as well as the failure rates of the other components. Operating Manual P2HZ X3 19484-EN-06...

  • Page 16: Service Life Graph

    European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/support/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual P2HZ X3...
  • Page 17 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95600621 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
