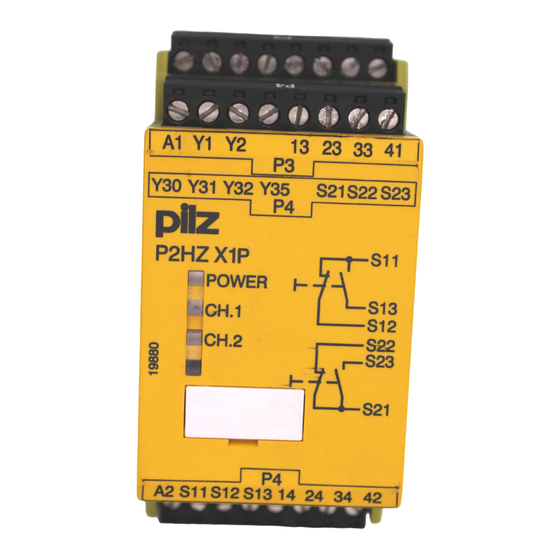

P2HZ X1P
}
Safety relays
Operating Manual-19799-EN-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2HZ X1P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pilz P2HZ X1P

Summary of Contents for Pilz P2HZ X1P

  • Page 1 P2HZ X1P Safety relays Operating Manual-19799-EN-08...
  • Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.

  • Page 3: Table Of Contents

    Use of qualified personnel Warranty and liability Disposal For your safety Unit features Safety features Block diagram/terminal configuration Types: DC Types: AC Function Description Operating modes Timing diagram Installation Wiring Preparing for operation Operation Status indicators Operating Manual P2HZ X1P 19799-EN-08...
  • Page 4 Technical Details Order No. 777438, 777439, 787330 Technical Details Order No. 787331, 787340, 787434 Technical Details Order No. 787435, 787438, 787439 Safety characteristic data Supplementary data Service life graph Order reference EC declaration of conformity Operating Manual P2HZ X1P 19799-EN-08...

  • Page 5: Introduction

    P2HZ X1P Introduction Validity of documentation This documentation is valid for the product P2HZ X1P. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.

  • Page 6: Safety

    Safety Intended use The two-hand control relay P2HZ X1P meets the requirements of EN 574 Type III C. It forces a press operator to keep his hands out of the hazardous area during the dangerous closing movement, so avoiding hand injuries.

  • Page 7: Use Of Qualified Personnel

    Note for overvoltage category III: If voltages higher than low voltage (>50 VAC or >120 VDC) are present on the unit, connected control elements and sensors must have a rated insulation voltage of at least 250 V. Operating Manual P2HZ X1P 19799-EN-08...

  • Page 8: Unit Features

    The circuit prevents a further press stroke in the case of: – Relay failure – Contact welding – Coil defect on a relay – Open circuit – Short circuit Block diagram/terminal configuration Types: DC : 24 VDC; Order no. 777340, 787340 Operating Manual P2HZ X1P 19799-EN-08...

  • Page 9: Types: Ac

    : 120 VAC; Order no. 777436 : 230 VAC; Order no. 777438, 787438 : 240 VAC; Order no. 777439, 787439 *Insulation between the non-marked area and the relay contacts: Basic insulation (over- voltage category III), Protective separation (overvoltage category II) Operating Manual P2HZ X1P 19799-EN-08...

  • Page 10: Function Description

    P2HZ X1P Function Description The two-hand control relay P2HZ X1P is activated by simultaneously operating the two op- erator elements (simultaneity see Technical details [ 19]). If one or both of the operator elements are released, it interrupts the control command to close the press. The device is ready for operation when the supply voltage is applied and the feedback loop Y1-Y2 is closed.

  • Page 11: Timing Diagram

    Use the notch on the rear of the unit to attach it to a DIN rail (35 mm). When installed vertically: Secure the unit by using a fixing element (e.g. retaining bracket or end angle). Operating Manual P2HZ X1P 19799-EN-08...

  • Page 12: Wiring

    Use copper wire that can withstand 60/75 °C. The supply voltage must be switched off with the operating energy of the machine. The connection cables between the P2HZ X1P and the pushbuttons should not be laid directly next to power cables, otherwise inductive and capacitive interference coupling can result.

  • Page 13: Preparing For Operation

    Open the safety contacts (switch off output) and start the device again, so that the internal diagnostics can check that the safety contacts open correctly for SIL CL 3/PL e at least 1x per month for SIL CL 2/PL d at least 1x per year Operating Manual P2HZ X1P 19799-EN-08...

  • Page 14: Status Indicators

    Technical Details Order No. 777330, 777331, 777340 General 777330 777331 777340 CCC, CE, EAC (Euras- CCC, CE, EAC (Euras- CCC, CE, EAC (Euras- Approvals ian), TÜV, cULus Listed ian), TÜV, cULus Listed ian), TÜV, cULus Listed Operating Manual P2HZ X1P 19799-EN-08...
  • Page 15 -15 %/+10 % -15 %/+10 % -15 %/+10 % Relay outputs 777330 777331 777340 Number of output con- tacts Safety contacts (N/O), instantaneous Auxiliary contacts (N/C) 1 Max. short circuit current 1 kA 1 kA 1 kA Operating Manual P2HZ X1P 19799-EN-08...
  • Page 16 240 V AC G. P. 240 V AC G. P. With current Voltage 24 V DC Resistive 24 V DC Resistive 24 V DC Resistive With current Pilot Duty C300, R300 C300, R300 C300, R300 Operating Manual P2HZ X1P 19799-EN-08...
  • Page 17 93 % r. h. at 40 °C 93 % r. h. at 40 °C Condensation during op- eration Not permitted Not permitted Not permitted EN 60947-5-1, EN EN 60947-5-1, EN EN 60947-5-1, EN 61000-6-2 61000-6-2 61000-6-2 Operating Manual P2HZ X1P 19799-EN-08...
  • Page 18 0,5 Nm 0,5 Nm 0,5 Nm Dimensions Height 94 mm 94 mm 94 mm Width 45 mm 45 mm 45 mm Depth 121 mm 121 mm 121 mm Weight 370 g 370 g 270 g Operating Manual P2HZ X1P 19799-EN-08...

  • Page 19: Technical Details Order No. 777434, 777435, 777436

    Number Voltage 24 V 24 V 24 V Current 20 mA 20 mA 20 mA External supply voltage 24 V 24 V 24 V Voltage tolerance -15 %/+10 % -15 %/+10 % -15 %/+10 % Operating Manual P2HZ X1P 19799-EN-08...
  • Page 20 1,5 A Utilisation category of auxiliary contacts AC15 at 230 V 230 V 230 V Max. current DC13 (6 cycles/min) at 24 V 24 V 24 V Max. current 1,5 A 1,5 A 1,5 A Operating Manual P2HZ X1P 19799-EN-08...
  • Page 21 -40 - 85 °C -40 - 85 °C -40 - 85 °C Climatic suitability Humidity 93 % r. h. at 40 °C 93 % r. h. at 40 °C 93 % r. h. at 40 °C Operating Manual P2HZ X1P 19799-EN-08...
  • Page 22 TWIN crimp 0,2 - 1,5 mm², 24 - 16 0,2 - 1,5 mm², 24 - 16 0,2 - 1,5 mm², 24 - 16 connectors Torque setting with screw terminals 0,5 Nm 0,5 Nm 0,5 Nm Operating Manual P2HZ X1P 19799-EN-08...

  • Page 23: Technical Details Order No. 777438, 777439, 787330

    Input circuit DC 24 V 24 V 24 V Feedback loop DC 24 V 24 V 24 V Current at Feedback loop DC 45 mA 45 mA 45 mA Semiconductor outputs 777438 777439 787330 Number Operating Manual P2HZ X1P 19799-EN-08...
  • Page 24 AC15 at 230 V 230 V 230 V Max. current 2,5 A 2,5 A 2,5 A DC13 (6 cycles/min) at 24 V 24 V 24 V Max. current 1,5 A 1,5 A 1,5 A Operating Manual P2HZ X1P 19799-EN-08...
  • Page 25 30 ms Recovery time 250 ms 250 ms 250 ms Simultaneity, channel 1 and 2 max. 500 ms 500 ms 500 ms Environmental data 777438 777439 787330 Climatic suitability EN 60068-2-78 EN 60068-2-78 EN 60068-2-78 Operating Manual P2HZ X1P 19799-EN-08...
  • Page 26 ABS UL 94 V0 ABS UL 94 V0 ABS UL 94 V0 PPO UL 94 V0 PPO UL 94 V0 PPO UL 94 V0 Connection type Screw terminal Screw terminal Spring-loaded terminal Mounting type plug-in plug-in plug-in Operating Manual P2HZ X1P 19799-EN-08...

  • Page 27: Technical Details Order No. 787331, 787340, 787434

    Output of external power supply (DC) – 2,5 W – Frequency range AC 50 - 60 Hz – 50 - 60 Hz Residual ripple DC – 10 % – Duty cycle 100 % 100 % 100 % Operating Manual P2HZ X1P 19799-EN-08...
  • Page 28 Number of output con- tacts Safety contacts (N/O), instantaneous Auxiliary contacts (N/C) 1 Max. short circuit current 1 kA 1 kA 1 kA Utilisation category In accordance with the standard EN 60947-4-1 EN 60947-4-1 EN 60947-4-1 Operating Manual P2HZ X1P 19799-EN-08...
  • Page 29 240 V AC G. P. 240 V AC G. P. With current Voltage 24 V DC Resistive 24 V DC Resistive 24 V DC Resistive With current Pilot Duty C300, R300 C300, R300 C300, R300 Operating Manual P2HZ X1P 19799-EN-08...
  • Page 30 93 % r. h. at 40 °C 93 % r. h. at 40 °C Condensation during op- eration Not permitted Not permitted Not permitted EN 60947-5-1, EN EN 60947-5-1, EN EN 60947-5-1, EN 61000-6-2 61000-6-2 61000-6-2 Operating Manual P2HZ X1P 19799-EN-08...
  • Page 31 101 mm 101 mm Width 45 mm 45 mm 45 mm Depth 121 mm 121 mm 121 mm Weight 365 g 270 g 365 g Where standards are undated, the 2017-09 latest editions shall apply. Operating Manual P2HZ X1P 19799-EN-08...

  • Page 32: Technical Details Order No. 787435, 787438, 787439

    Number Voltage 24 V 24 V 24 V Current 20 mA 20 mA 20 mA External supply voltage 24 V 24 V 24 V Voltage tolerance -15 %/+10 % -15 %/+10 % -15 %/+10 % Operating Manual P2HZ X1P 19799-EN-08...
  • Page 33 1,5 A Utilisation category of auxiliary contacts AC15 at 230 V 230 V 230 V Max. current DC13 (6 cycles/min) at 24 V 24 V 24 V Max. current 1,5 A 1,5 A 1,5 A Operating Manual P2HZ X1P 19799-EN-08...
  • Page 34 -40 - 85 °C -40 - 85 °C -40 - 85 °C Climatic suitability Humidity 93 % r. h. at 40 °C 93 % r. h. at 40 °C 93 % r. h. at 40 °C Operating Manual P2HZ X1P 19799-EN-08...
  • Page 35 101 mm 101 mm Width 45 mm 45 mm 45 mm Depth 121 mm 121 mm 121 mm Weight 365 g 365 g 365 g Where standards are undated, the 2017-09 latest editions shall apply. Operating Manual P2HZ X1P 19799-EN-08...

  • Page 36: Safety Characteristic Data

    Service life graph The service life graphs indicate the number of cycles from which failures due to wear must be expected. The wear is mainly caused by the electrical load; the mechanical load is negli- gible. Operating Manual P2HZ X1P 19799-EN-08...

  • Page 37: Order Reference

    230 V AC Screw terminals 777 438 P2HZ X1P C 230 V AC Spring-loaded terminals 787 438 P2HZ X1P 240 V AC Screw terminals 777 439 P2HZ X1P C 240 V AC Spring-loaded terminals 787 439 Operating Manual P2HZ X1P 19799-EN-08...

  • Page 38: Ec Declaration Of Conformity

    European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/support/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual P2HZ X1P...
  • Page 39 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95600621 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
